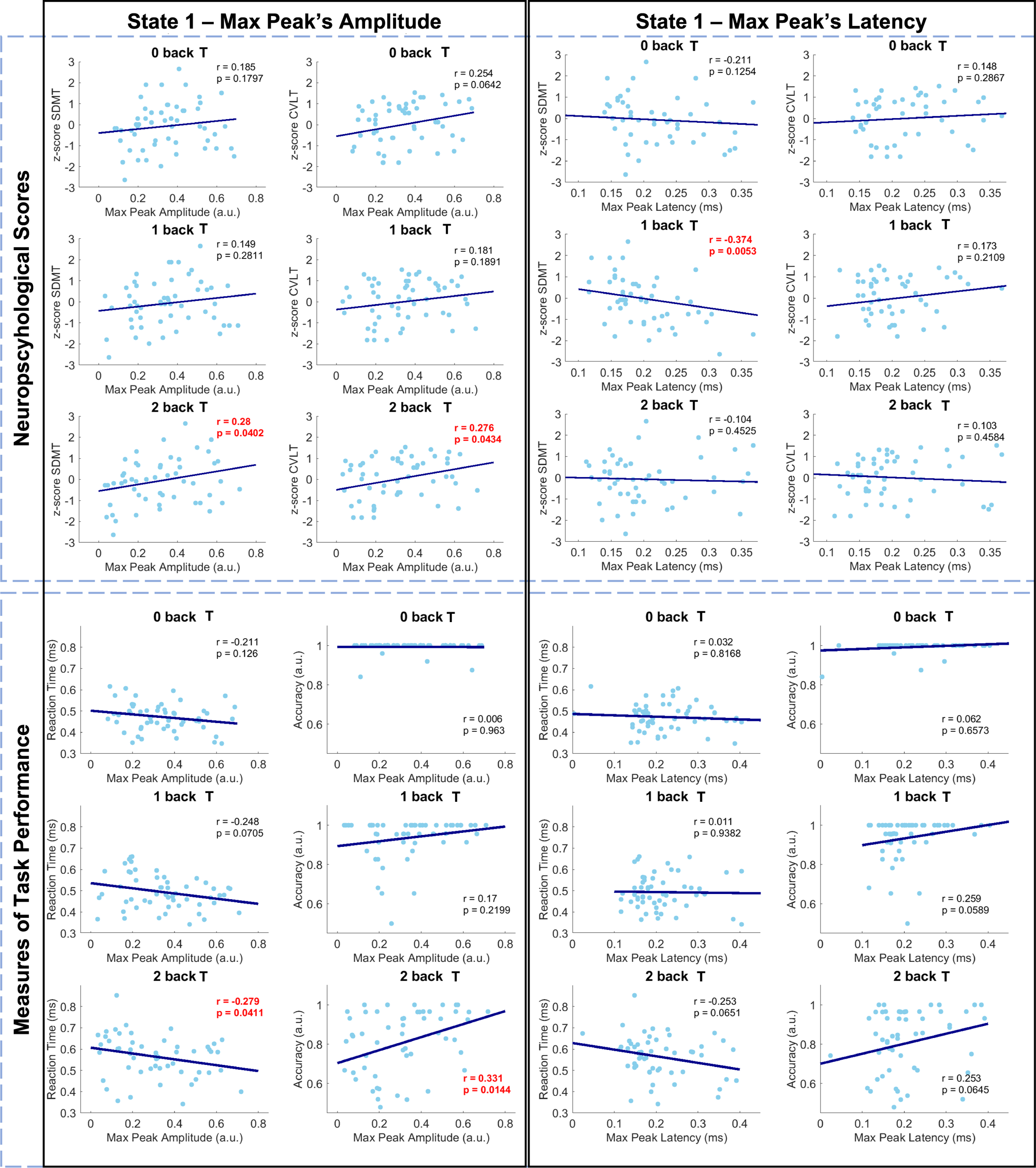

Fig. 7: Relationship between state 1 ER peaks amplitude and latency with behavioural data for the MS B− cohort.
From: Disrupted working memory event-related network dynamics in multiple sclerosis
The behavioural data include the mean reaction time and accuracy per subject, and two neuropsychological tests, the Symbol-to-Digit modality test (SDMT) and the California Verbal Learning Test-II (CVLT-II). The scores of the neuropsychological tests are standardized (z-score). All the correlations are computed as Spearman’s correlations, and the p-values are not corrected for multiple comparisons. In each plot, the correlation coefficient (r) and the p_values (p) are displayed. Each row presents the data for a single WM load condition.
