Fig. 6: Global effect of fibre bundle removal for each of the 7 input networks.

From: Simulating the impact of white matter connectivity on processing time scales using brain network models

Fig. 6

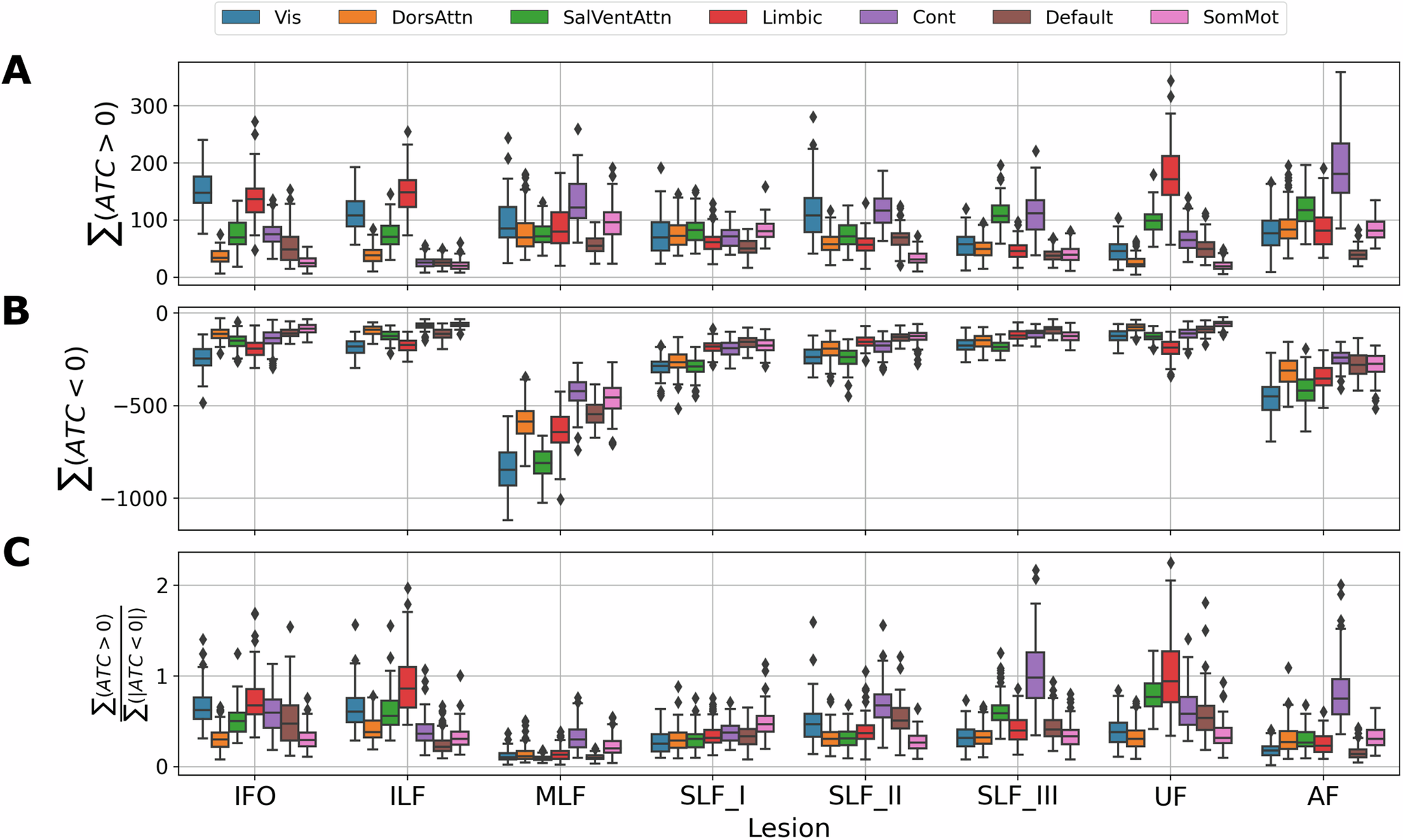

A Each box indicates the distribution of positive alignment time change (ATC) summed across all brain regions for all subjects, as an overall measure of the effect of a specific fibre bundle removal. The network, to which the intact/scrambled narrative was projected to, is indicated by the colour of the box. Boxes indicate quartiles, with whiskers extending to the farthest datapoint within 1.5 times the inter-quartile range. B Same as (A) but for negative ATCs. C The ratio of positive over negative ATCs. If <1 ( >1) indicates that a specific fibre bundle removal has an overall speed up (slow down) effect.
