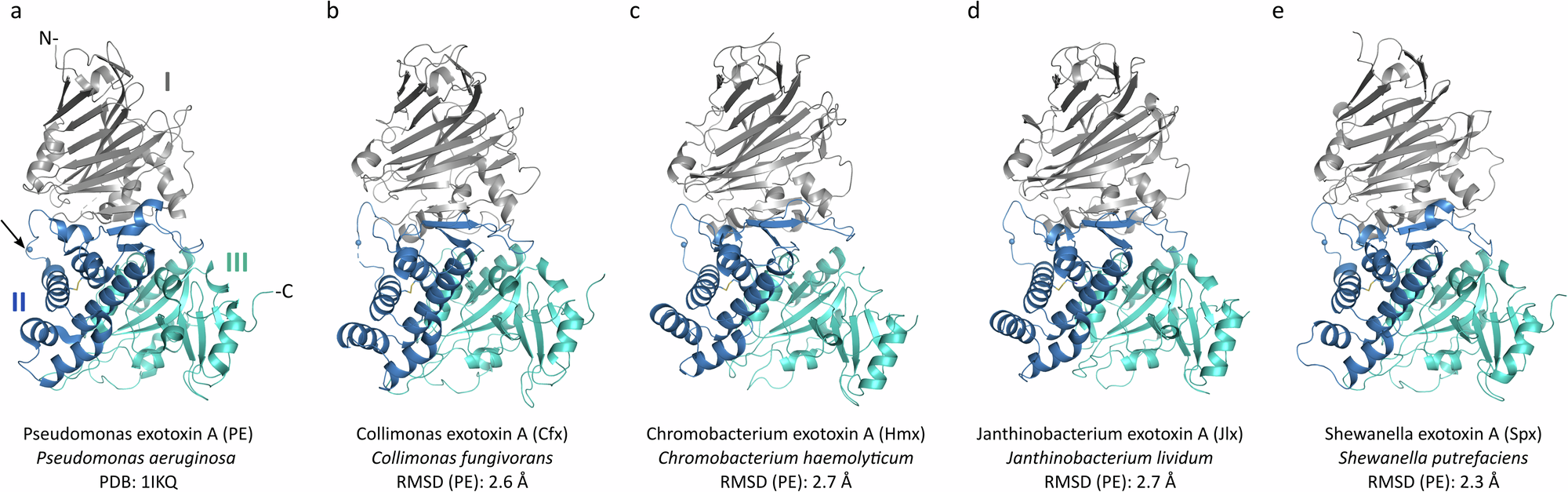

Fig. 2: Crystal structure comparison of PLT proteins.
From: Discovery of mono-ADP ribosylating toxins with high structural homology to Pseudomonas exotoxin A
a PE [PDB 1IKQ], b Collimonas fungivorans (Cfx), c Chromobacterium haemolyticum (Hmx), d Janthinobacterium lividum (Jlx), and e Shewanella putrefaciens (Spx) exotoxins are shown with domain I in grey, II in blue, and III in cyan. The Furin site in PE is indicated by an arrow pointing to a bead and the equivalent site is represented as a bead in the other structures (a–e). Overall root mean square deviations (r.m.s.d.) of each structure vs PE are provided (see also Supplementary Table 2).
