Fig. 4: Networks formed by complete and incomplete ridges of Sterictopathes seira sp. nov.

From: Unveiling the early evolution of black corals

Fig. 4

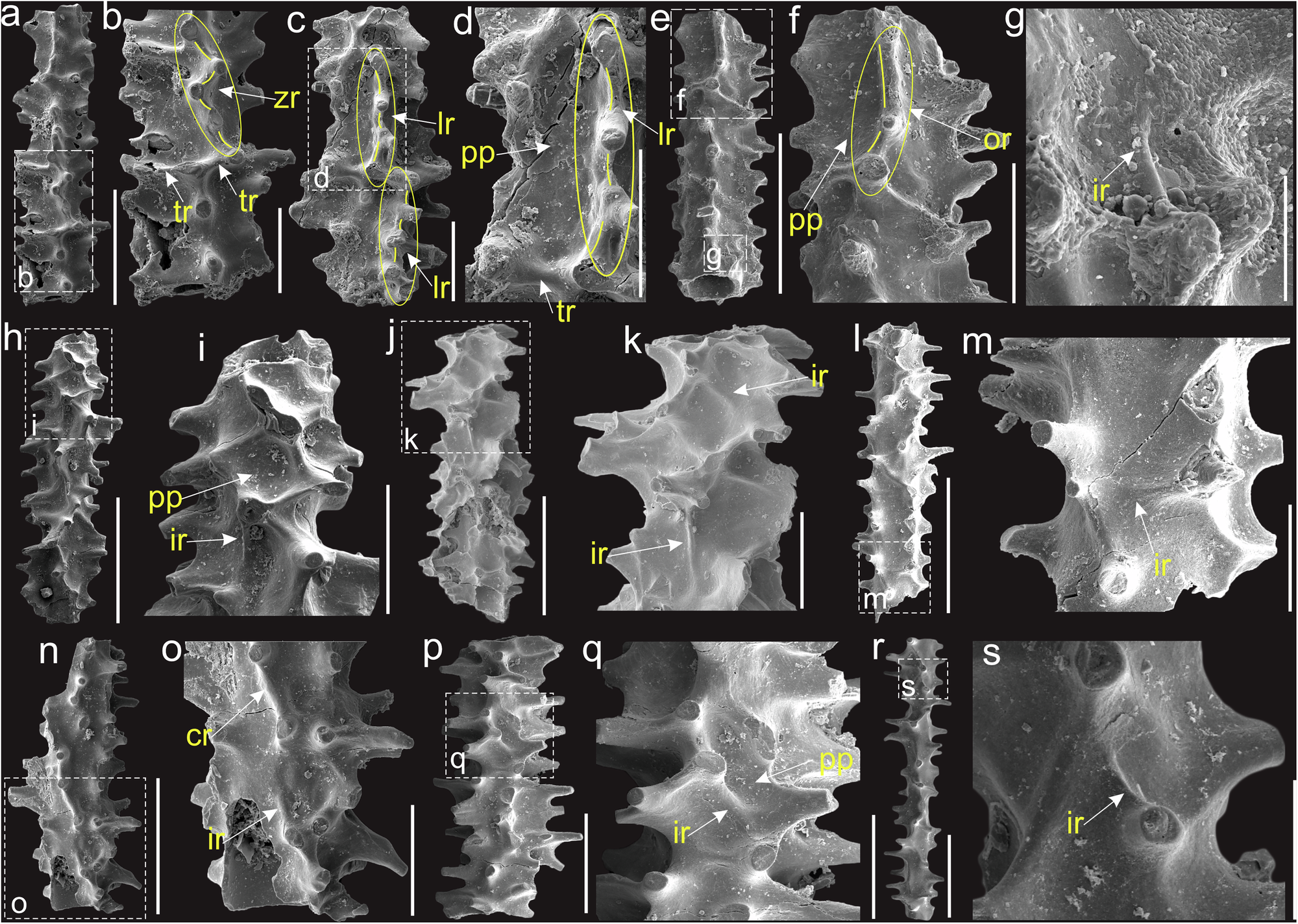

Abbreviations: CR complete ridge, IR incomplete ridge, LR longitudinal subparallel rows of ridges, OR oblige ridge, PP polyp pit, TR transversal ridge, Zr zigzag row of ridges. Specimens: a, b ELI-FJG01293, c, d ELI-FJG01273, e–g ELI-FJG02147, h, i ELI-FJG01089, j, k ELI-FJG03465, l, m ELI-FJG02398, n, o ELI-FJG02323, p, q ELI-FJG02189, r, s ELI-FJG02184. Scale bars, a, e, h, j, l, n, p, r = 0.5 mm; b–d, f, i, k, o, q = 0.2 mm; g = 0.05 mm; m, s = 0.1 mm.
