Fig. 6: Relative methylation rates of the H3K4 and H3K36 peptides by WT and mutant PRDM9 enzymes.
From: Investigation and design of the dual specificity of the PRDM9 protein lysine methyltransferase

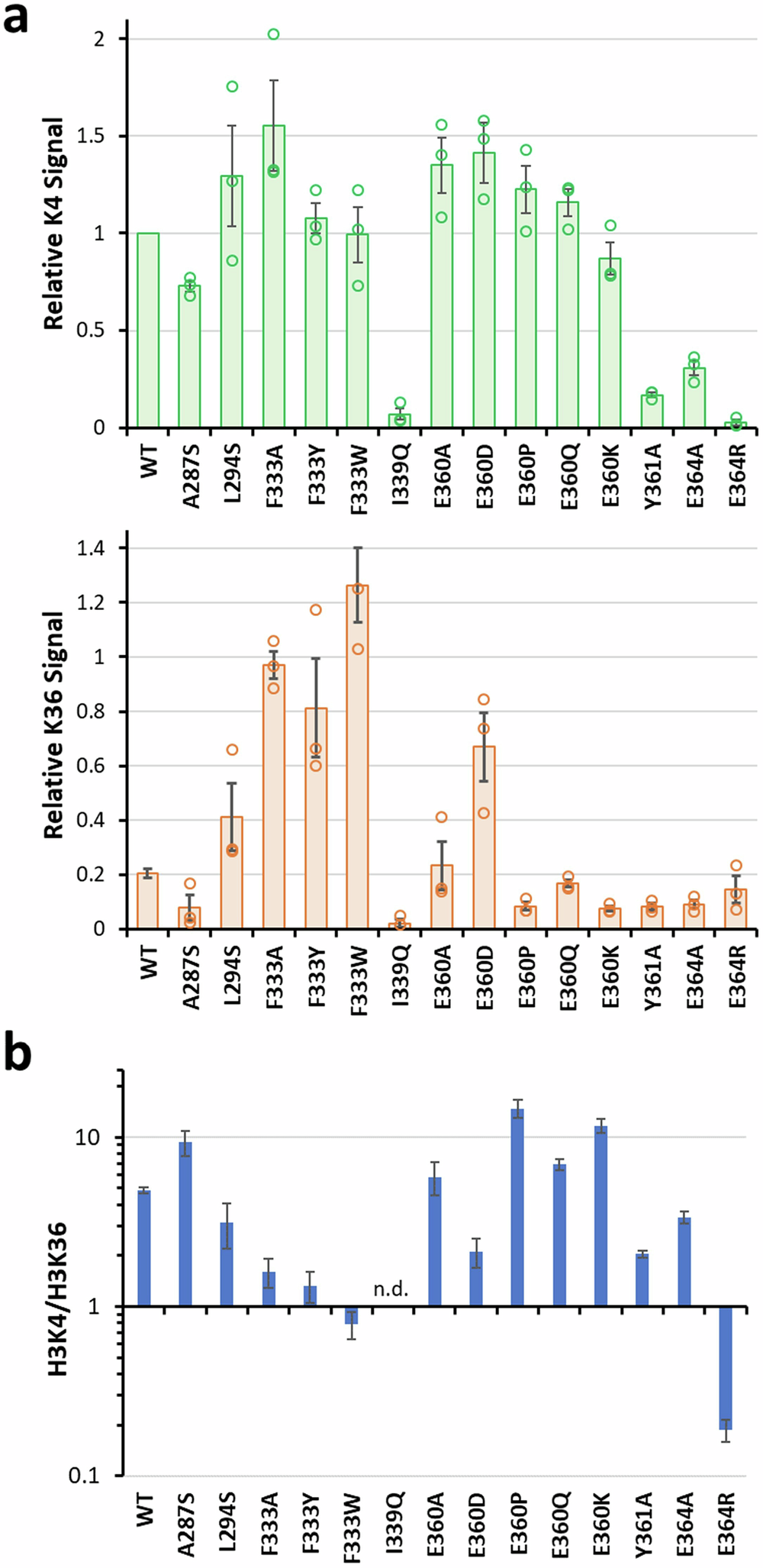

Analysis of the autoradiography signal from the soluble peptide H3K4 (1–19) and H3K36 (26–44) methylation by PRDM9 (195–415) WT and mutant enzymes. a Relative methylation signal intensities of H3K4 and H3K36 peptide bands normalized to the WT H3K4 methylation signal. The bars show the average of 3 independent experiments (21 in the case of the WT enzyme), the error bars display SEM. b Representation of the H3K4/H3K36 methylation signal ratio. The data were taken from (a), the errors were propagated from (a).
