Fig. 3: Assessing the agreement between predicted and true patterns of activity.
From: The spatial layout of antagonistic brain regions is explicable based on geometric principles

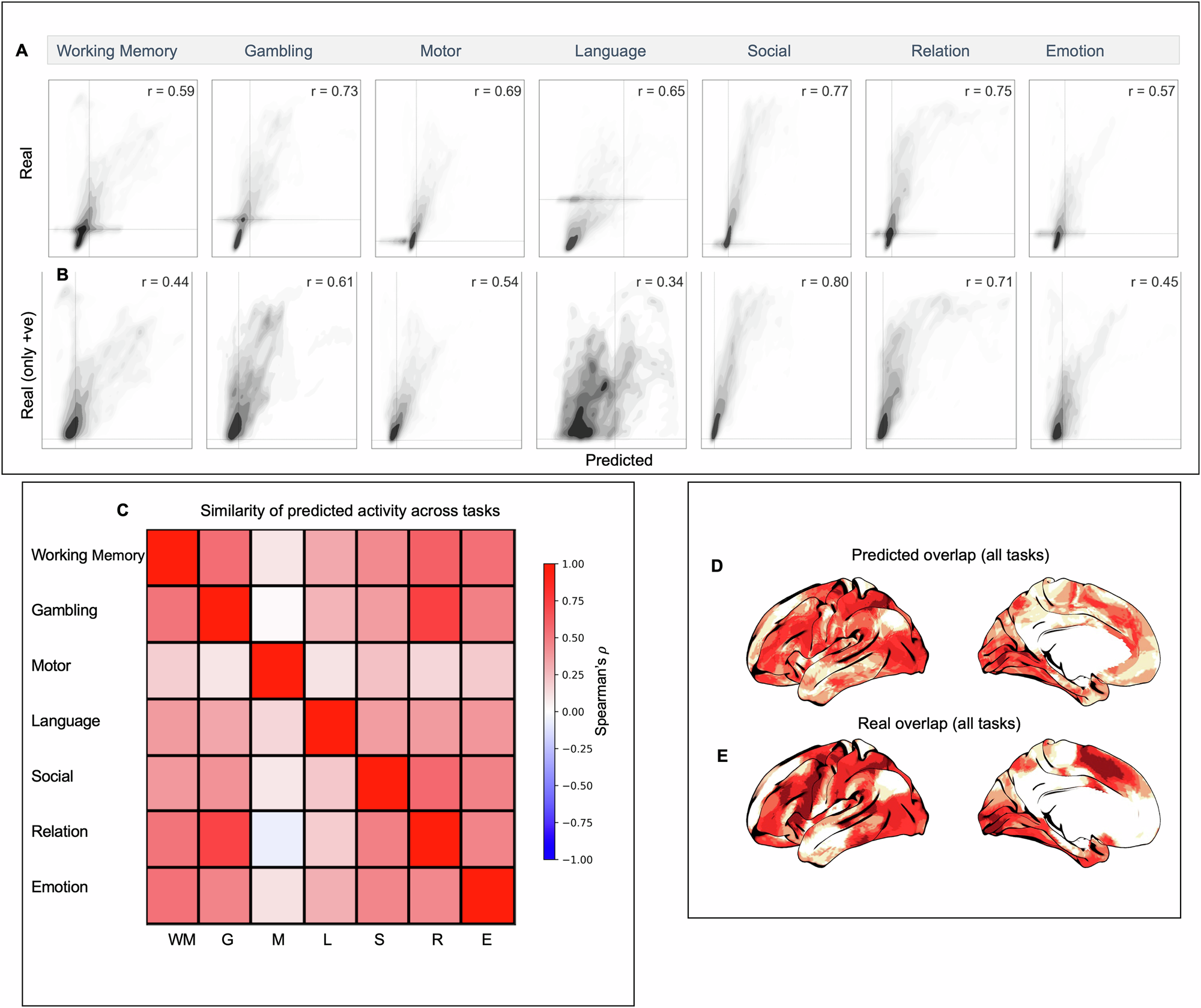

Left panel, A scatter plots of the relationship between true and predicted out-of-mask vertices for each task. B The relationship between predicted and real activity restricted only to vertices with a true task-positive BOLD response (i.e., z > 0). C Similarity across tasks of predicted activity for all out-of-mask vertices. D The overlap of positive predicted values across all tasks; E the real overlap of positive values across all tasks.
