Fig. 8: Spatial prediction in a mouse.
From: The spatial layout of antagonistic brain regions is explicable based on geometric principles

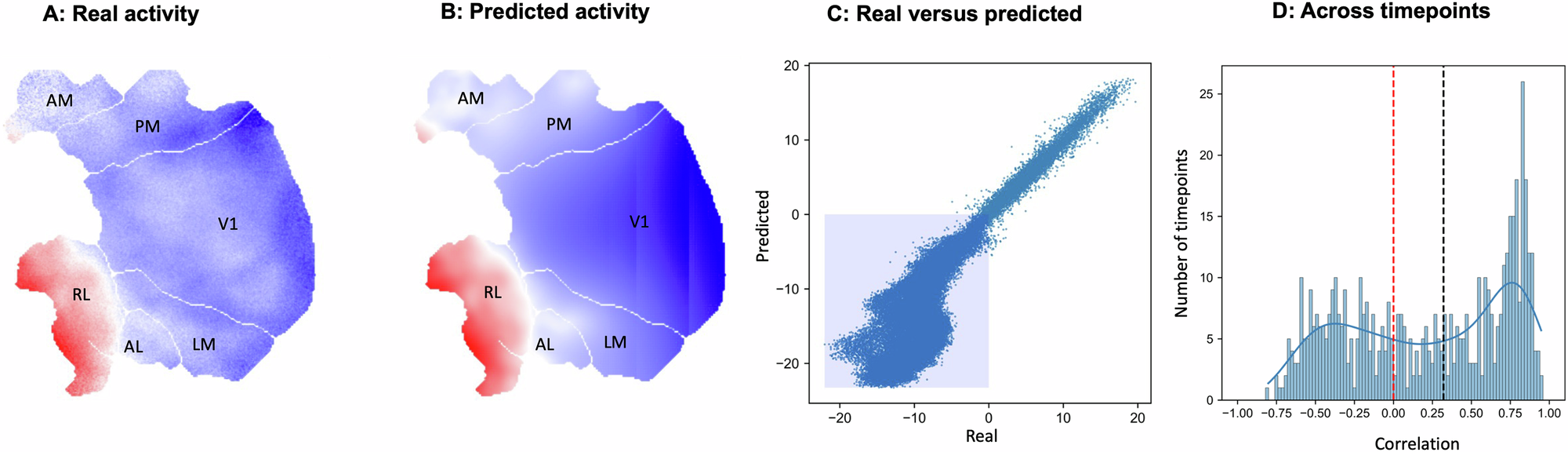

A Real activity for a single time point. Labels are: primary visual cortex (V1), lateromedial area (LM), anterolateral area (AL), rostrolateral area (RL), anteromedial area (AM), and posteromedial area (PM). B Predicted activity from a mask of the top 25% of pixels. C Real versus predicted activity in out-of-mask pixels (shaded area are negative values—the mask was defined by extreme positive values). D Top right, distribution of Spearman rank correlations between out-of-mask (>25 pixel distance) real and predicted activity across time points. The black dashed line is the mean correlation.
