Fig. 6: HDAC5 inhibited H3K27ac modification of the Gli2 promoter region in neurons. | Communications Biology

Fig. 6: HDAC5 inhibited H3K27ac modification of the Gli2 promoter region in neurons.

From: rTMS ameliorates cerebral ischemia-reperfusion injury by inhibiting Golgi apparatus stress through epigenetic modulation of Gli2

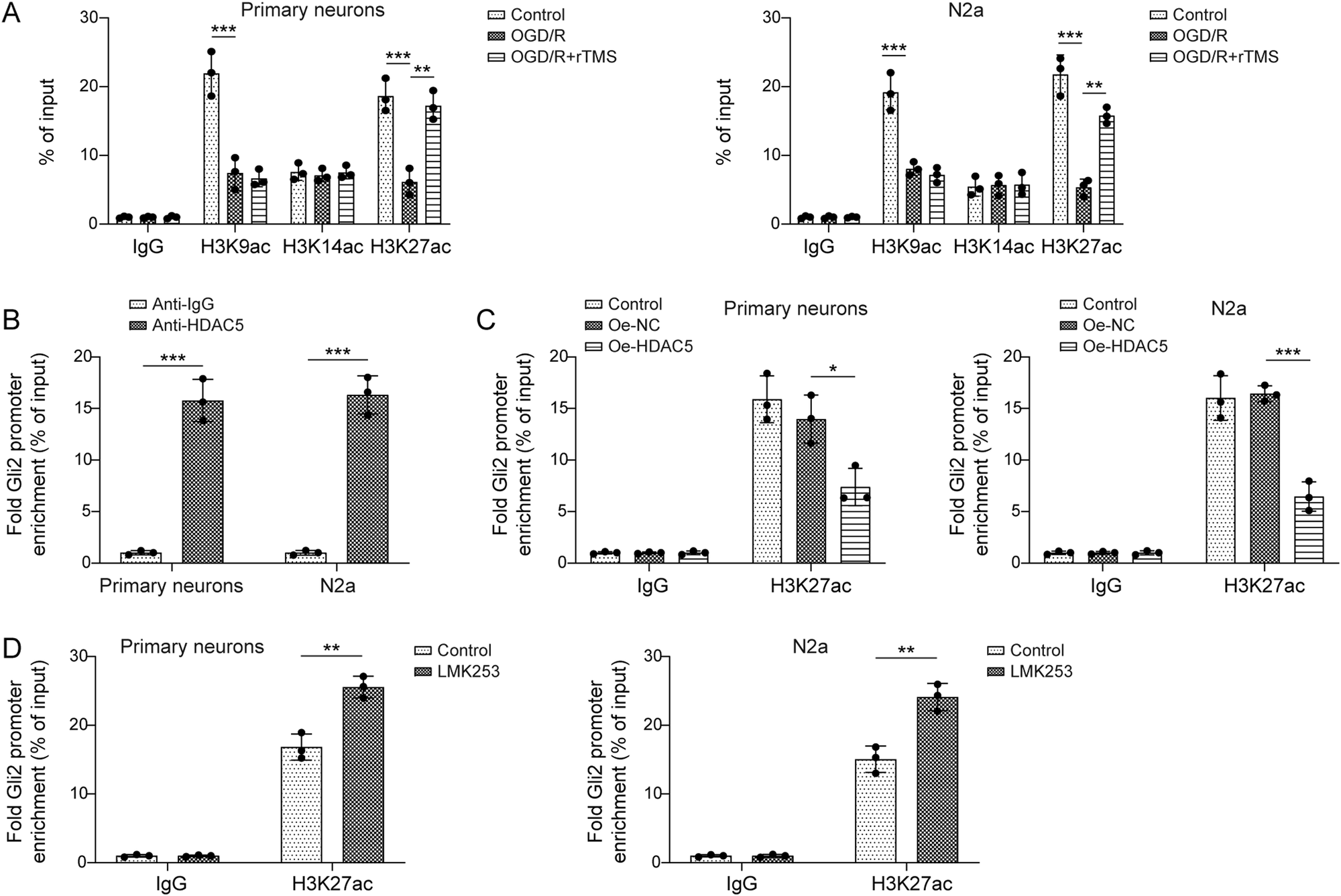

Fig. 6: HDAC5 inhibited H3K27ac modification of the Gli2 promoter region in neurons.

A Primary neurons and N2a cells were treated with OGD/R and 10 Hz rTMS. H3K9ac, H3K14ac, and H3K27ac enrichment in Gli2 promoter region was detected by ChIP assay. B ChIP was performed to assay the binding relationship between HDAC5 and Gli2 promoter in primary neurons and N2a cells. C The effect of overexpression of HDAC5 on H3K27ac enrichment in Gli2 promoter region was tested by ChIP assay. D H3K27ac enrichment in Gli2 promoter region was measured by ChIP after treatment of primary neurons and N2a cells with an inhibitor of HDAC5 (LMK253). n = 3. One-way ANOVA with Tukey’s post hoc test (for A and C) and student’s t test (for B, D) were performed to analyze data. *P < 0.05, **P < 0.01 and ***P < 0.001.
