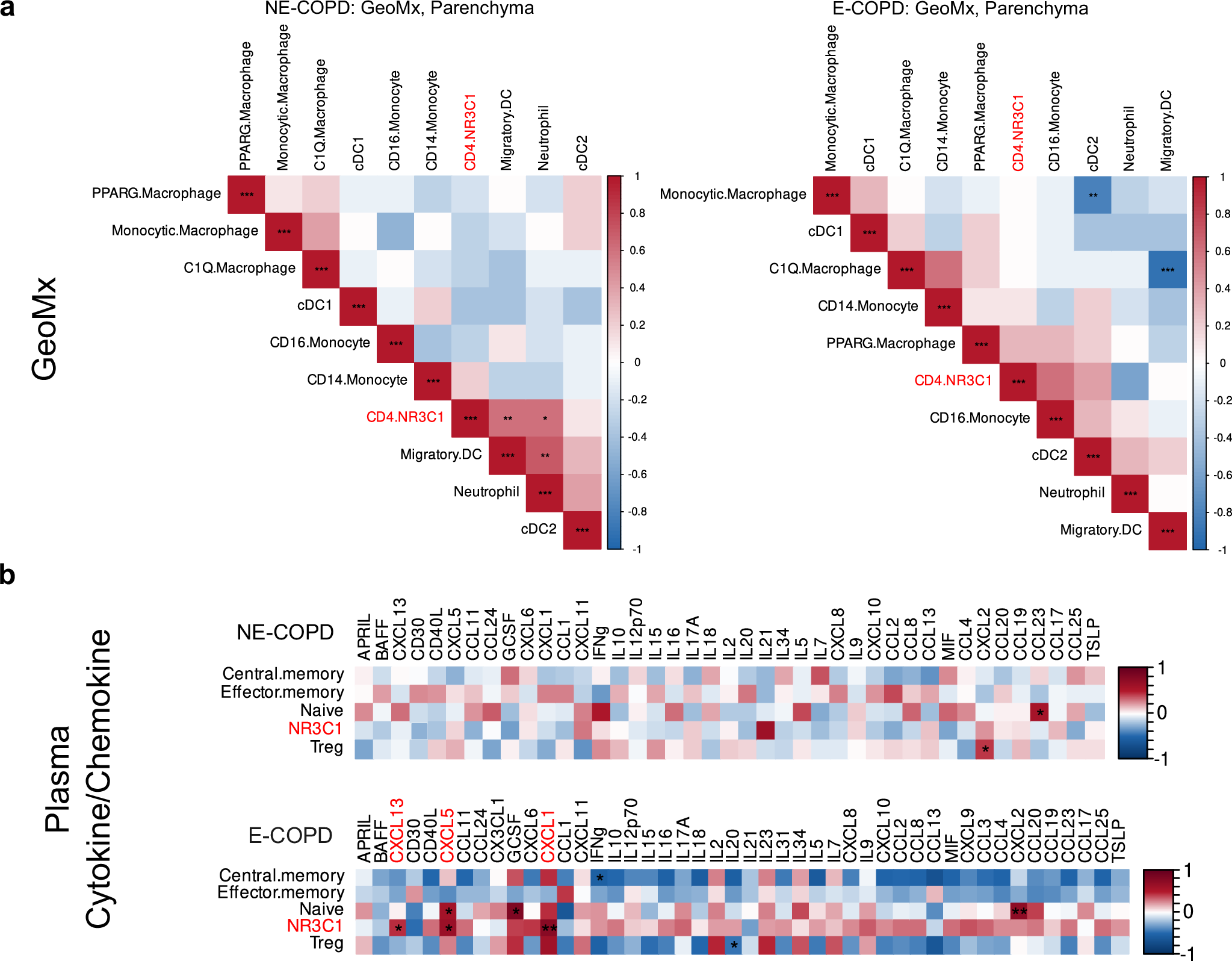

Fig. 6: Correlation of NR3C1 CD4 subset and inflammation.
From: Lung NR3C1+ and CXCR6high T cells distinguish immunopathogenesis of human emphysema
a Spearman correlations of deconvoluted relative abundances were performed for NE-COPD and E-COPD groups. b Spearman correlation of the relative abundance for CD4 subsets and plasma cytokine/chemokine levels in NE-COPD and E-COPD. Significance code: *p < 0.05; **p < 0.01; ***p < 0.001.
