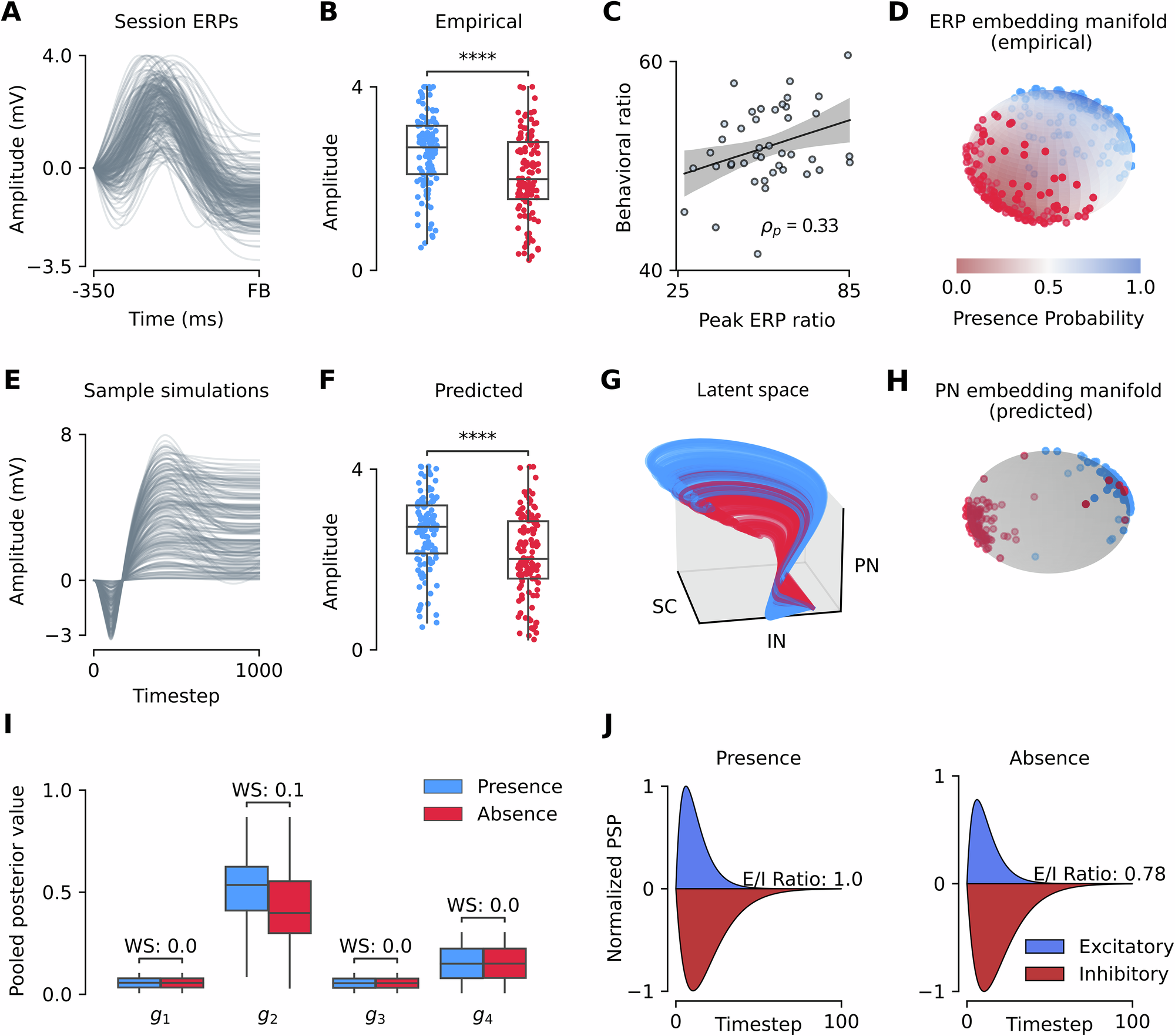

Fig. 2: Inference of mesoscale synaptic efficacies (monkey A).
From: Probabilistic inference of social presence across brain scales reveals enhanced synaptic efficacy
A Feedback-locked empirical evoked potentials across all sessions. n = 92 for empirical ERPs in all related sub-panels. B Maximum amplitude of the empirical ERPs in presence vs absence (p < 0.001). C Correlation of between-condition ratio of ERP peak with behavioral performance (accuracy). D Embedding manifold of empirical ERPs. E Sample of simulations used for training the posterior density estimator. F Peak amplitude of pyramidal neuron activity from posterior predictive checks across the conditions (p < 0.001). G Nonlinear latent space of the posterior predictive check done on empirical ERPs. H Embedding manifold of pyramidal neuron activity. I Pooled distribution of mesoscale synaptic efficacies across sessions (nsamples = 2000 per ERP). J Computed excitatory and inhibitory postsynaptic potentials in presence versus absence. Whiskers in all boxplots extend to 1.5 × IQR beyond the quartiles.
