Fig. 4: Spectroscopic characterization of the Lhcp trimer.

From: Distinctive and functional pigment arrangements in Lhcp, a prasinophyte-specific photosynthetic light-harvesting complex

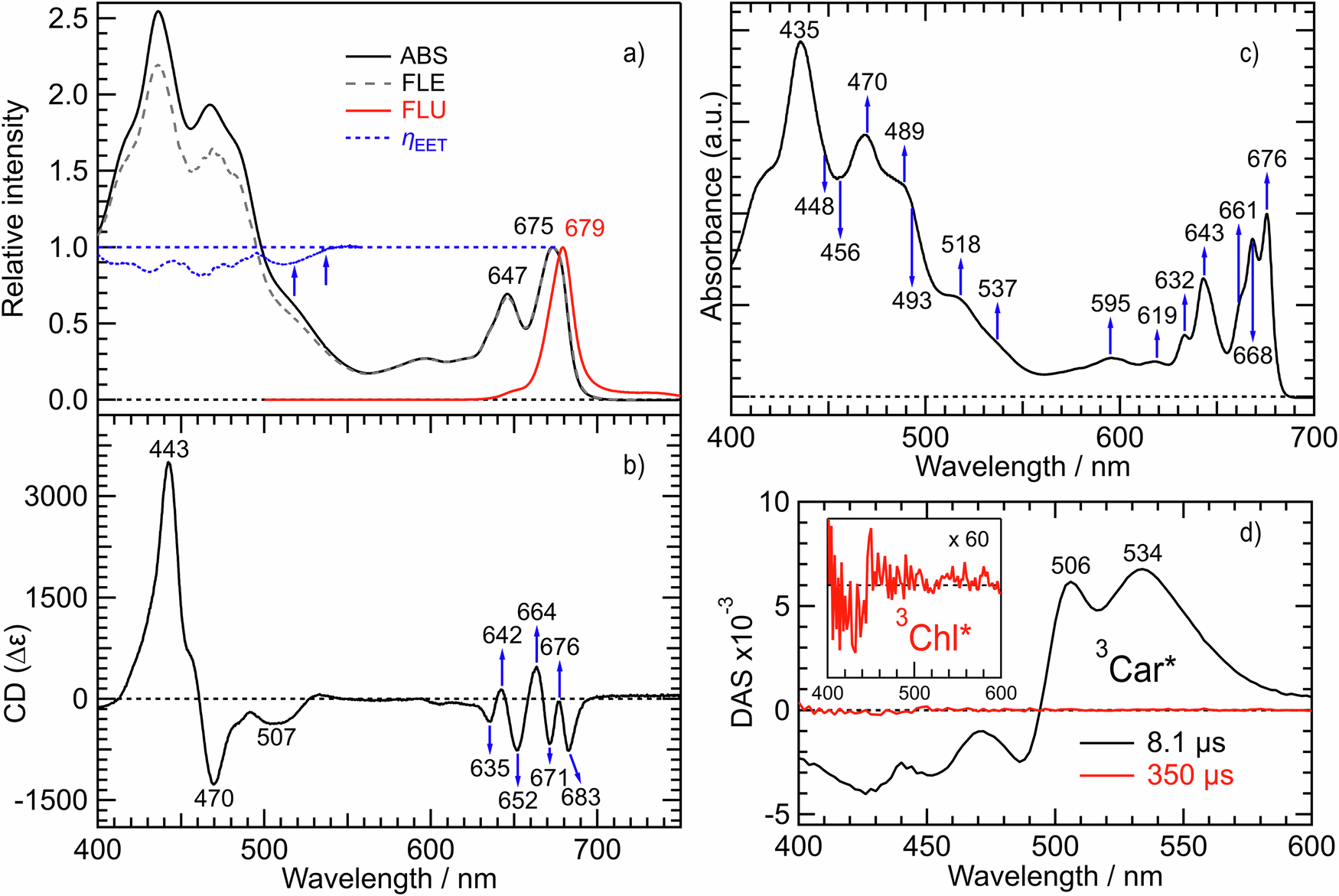

Fig. 4: Spectroscopic characterization of the Lhcp trimer.

a Absorption (ABS), fluorescence excitation (FLE) and emission (FLU) spectra, along with energy transfer efficiency (ηEET). Blue arrows indicate ηEET at 518 and 537 nm. b Circular dichroism (CD) profile. c 77 K absorption spectrum; peak wavelengths were determined using a second-derivative method (see Supplementary Fig. 8a). d Decay-associated spectra (DAS) from nanosecond time-resolved absorption spectroscopy. The inset shows a 60-fold vertical magnification.
