Fig. 3: Miro2 proximal protein functional annotations.

From: Proximity labeling unveils potential roles of the Miro2-CISD1 network in mitochondrial dynamics and neuronal differentiation

Fig. 3: Miro2 proximal protein functional annotations.

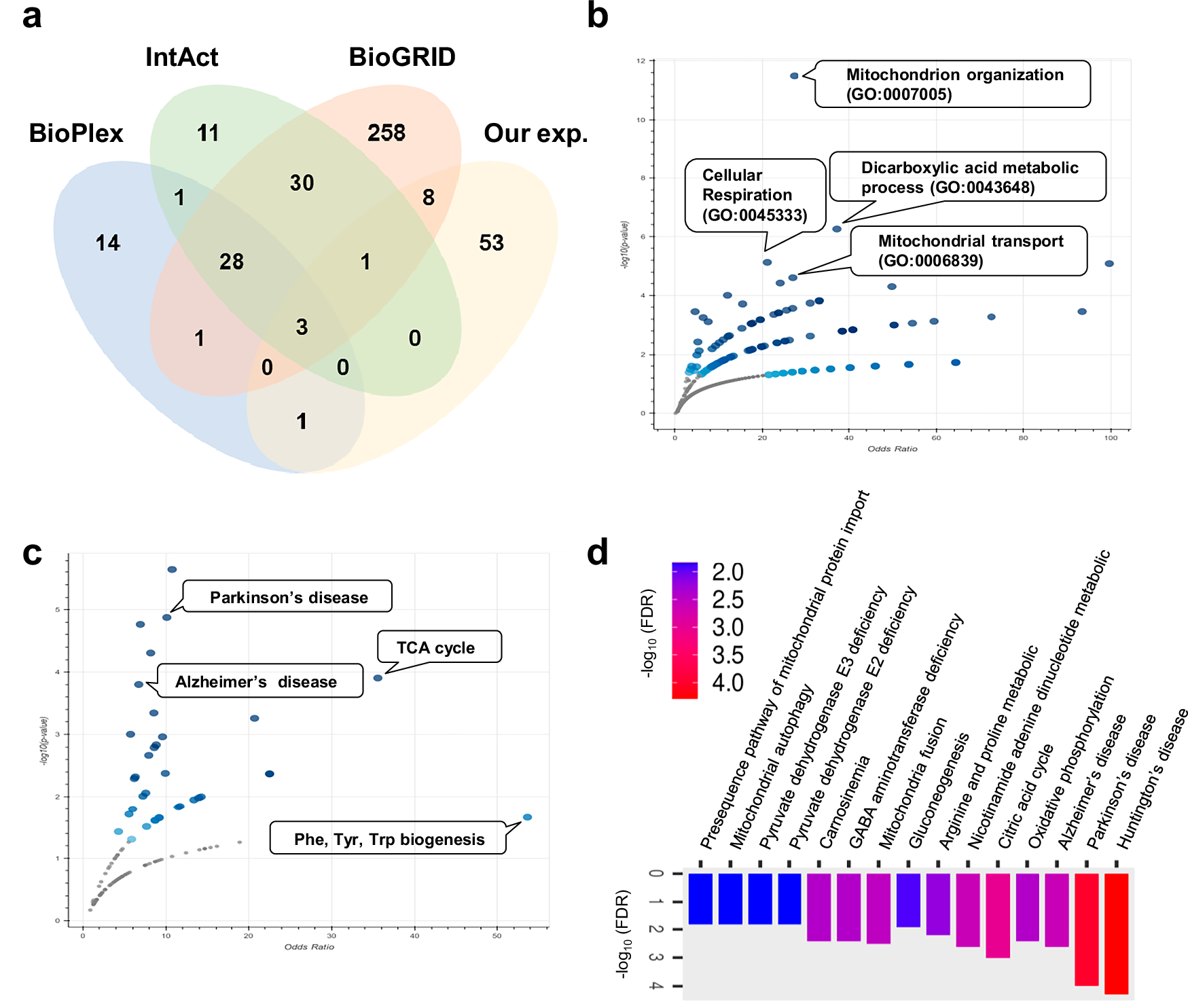

a Venn diagram of Miro2 interactors shows the overlapping proteins between our experiment and other references. (i.e., Biophysical Interactions of ORFeome-based Complexes (BioPlex), IntAct, and Biological General Repository for Interaction Datasets (BioGRID)) and the unique proteins in our experiment. Dot plot of the most significant GO biological processes (b) and KEGG pathways (c) associated with Miro2 interactors. d Bar plot of ShinyGO 0.80 enrichment analysis data (top 15) associated with Miro2 interactors.
