Fig. 7: Validation of allelic effects at MEL-C.

From: Genetic variation and historical breeding patterns in common bean (Phaseolus vulgaris L.) affect fermentation patterns by the human gut microbiome

Fig. 7

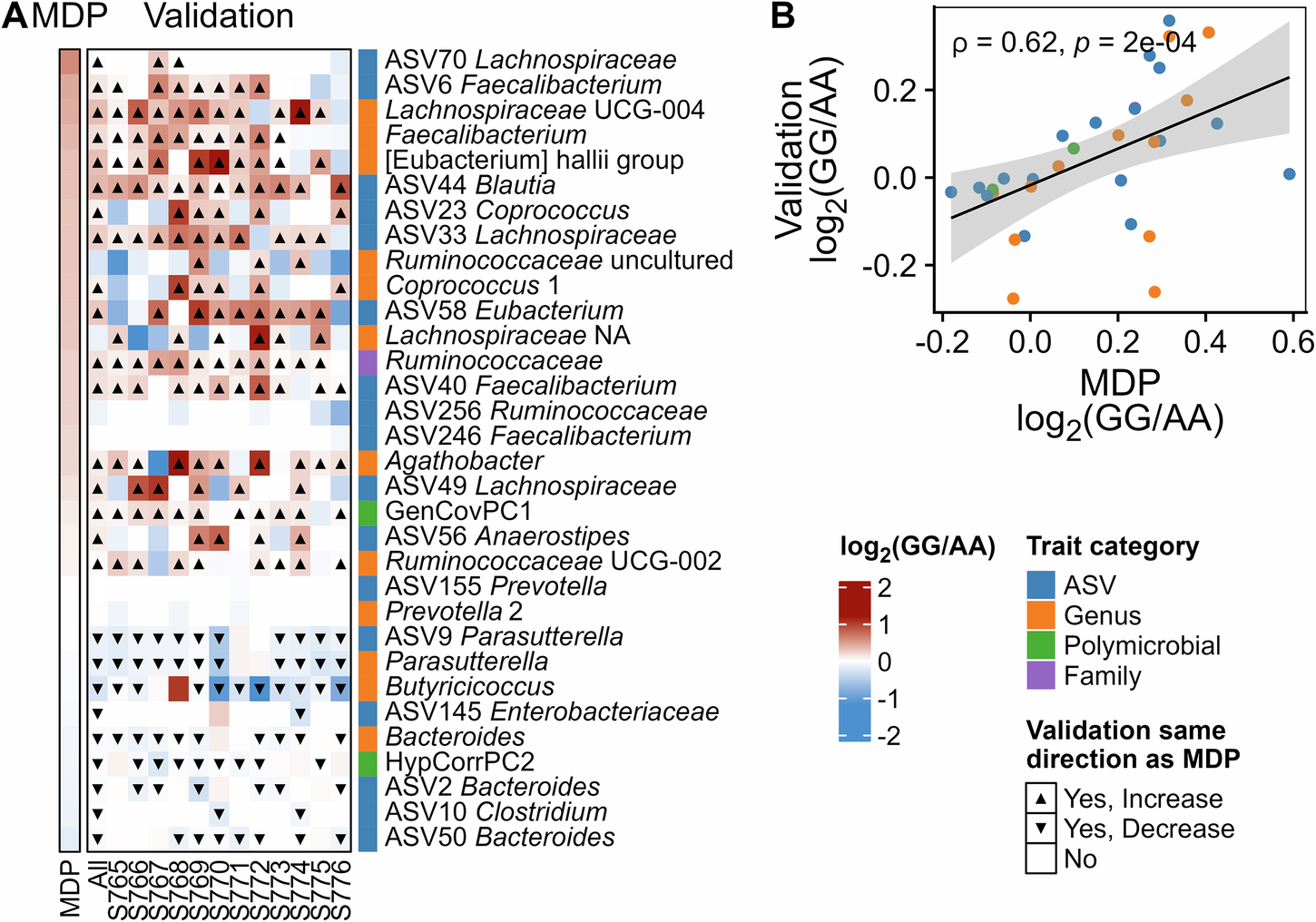

A Heatmap of the log2 fold change in relative abundance of significant microbiota traits from MEL-C from GG (minor) versus AA (major) genotypes in the Middle American Diversity Panel (MDP) and in pools of GG versus AA genotypes fermented using microbiotas from 12 subjects (Validation); “All” refers to the average across all microbiotas in the validation study; B scatter plot of the MDP and All columns in the heatmap in panel A; Spearman correlation coefficient and p value are indicated; shaded region represents the 95% confidence interval of the regression line.
