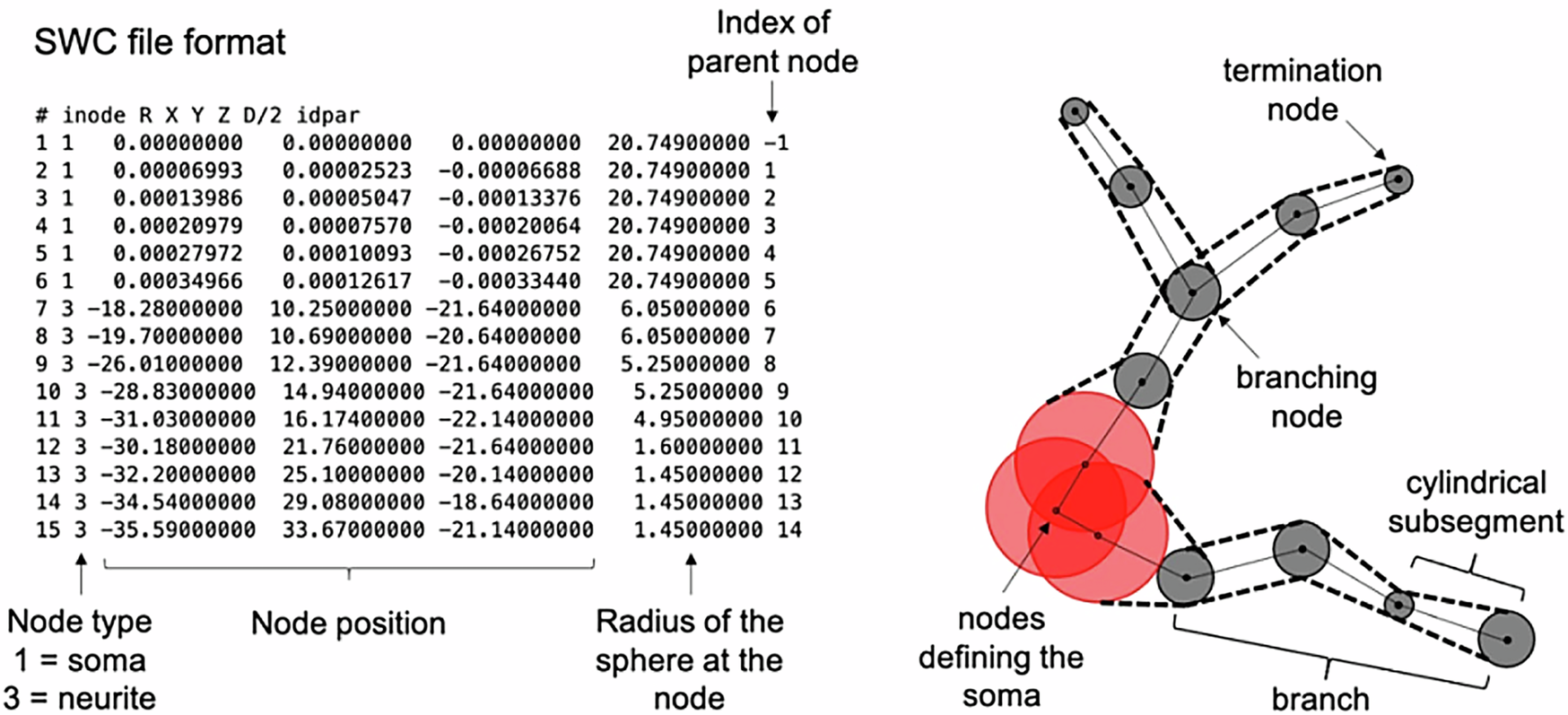

Fig. 1: An example of SWC file and how it relates to the cellular geometry.

We highlight the structural elements used to estimate the morphological features. Note that the first node in the SWC file is the so called `root'. It often coincides with the soma’s centre and it is used to compute metrics.
