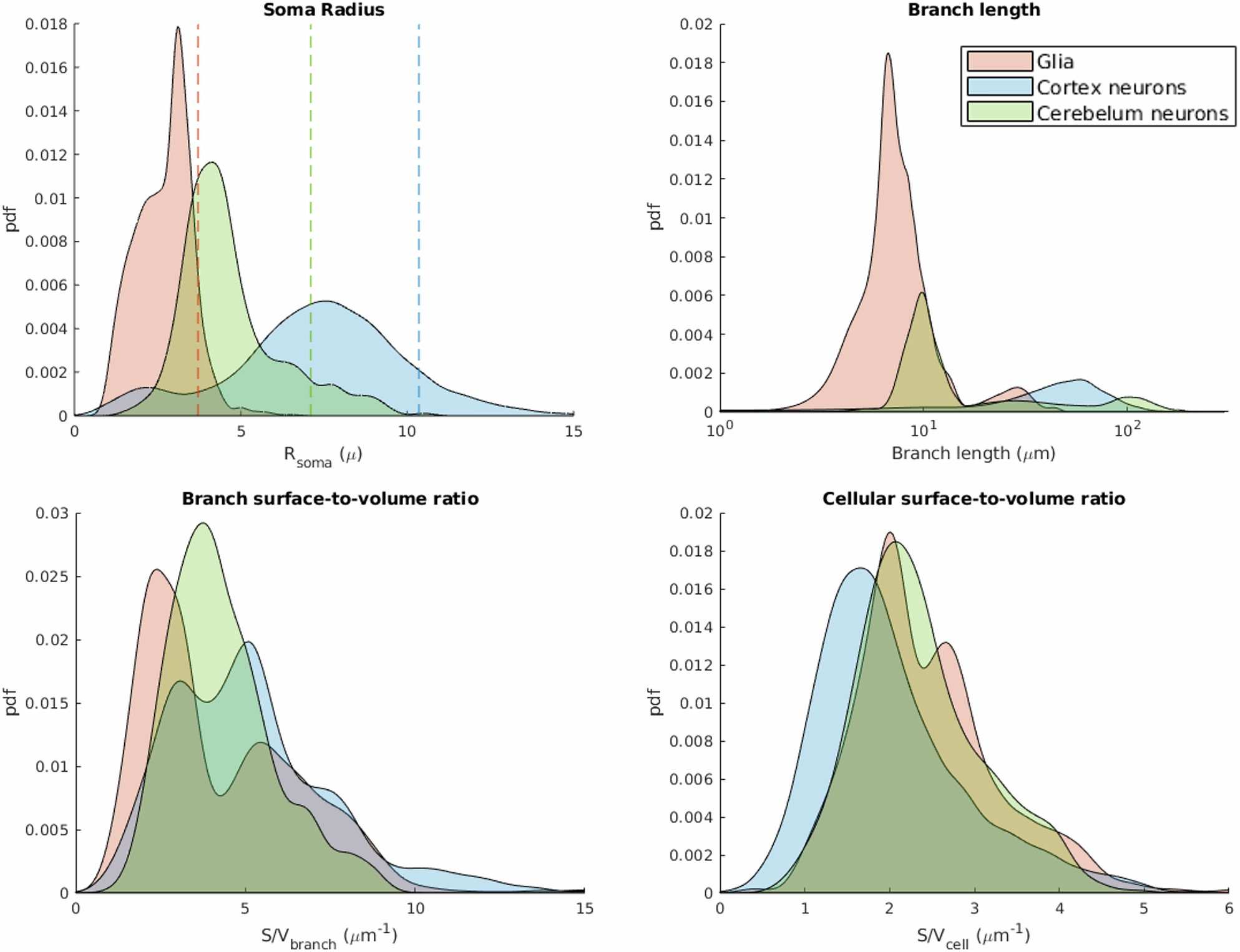

Fig. 6: Distributions of soma radius, branch length, branch surface-to-volume ratio, and cellular surface-to-volume ratio (grouped by general cell types). | Communications Biology

Fig. 6: Distributions of soma radius, branch length, branch surface-to-volume ratio, and cellular surface-to-volume ratio (grouped by general cell types).

From: Decoding gray matter, large-scale analysis of brain cell morphometry to inform microstructural modeling of diffusion MR signals

Fig. 6: Distributions of soma radius, branch length, branch surface-to-volume ratio, and cellular surface-to-volume ratio (grouped by general cell types).

Dashed lines in soma radius distribution plot indicate the effective MR radius for each general cell type (Glia RMRsoma = 3.7 μm, Cortex neurons RMRsoma = 10.4 μm, and Cerebellum neuron RMRsoma = 7.1 μm.
