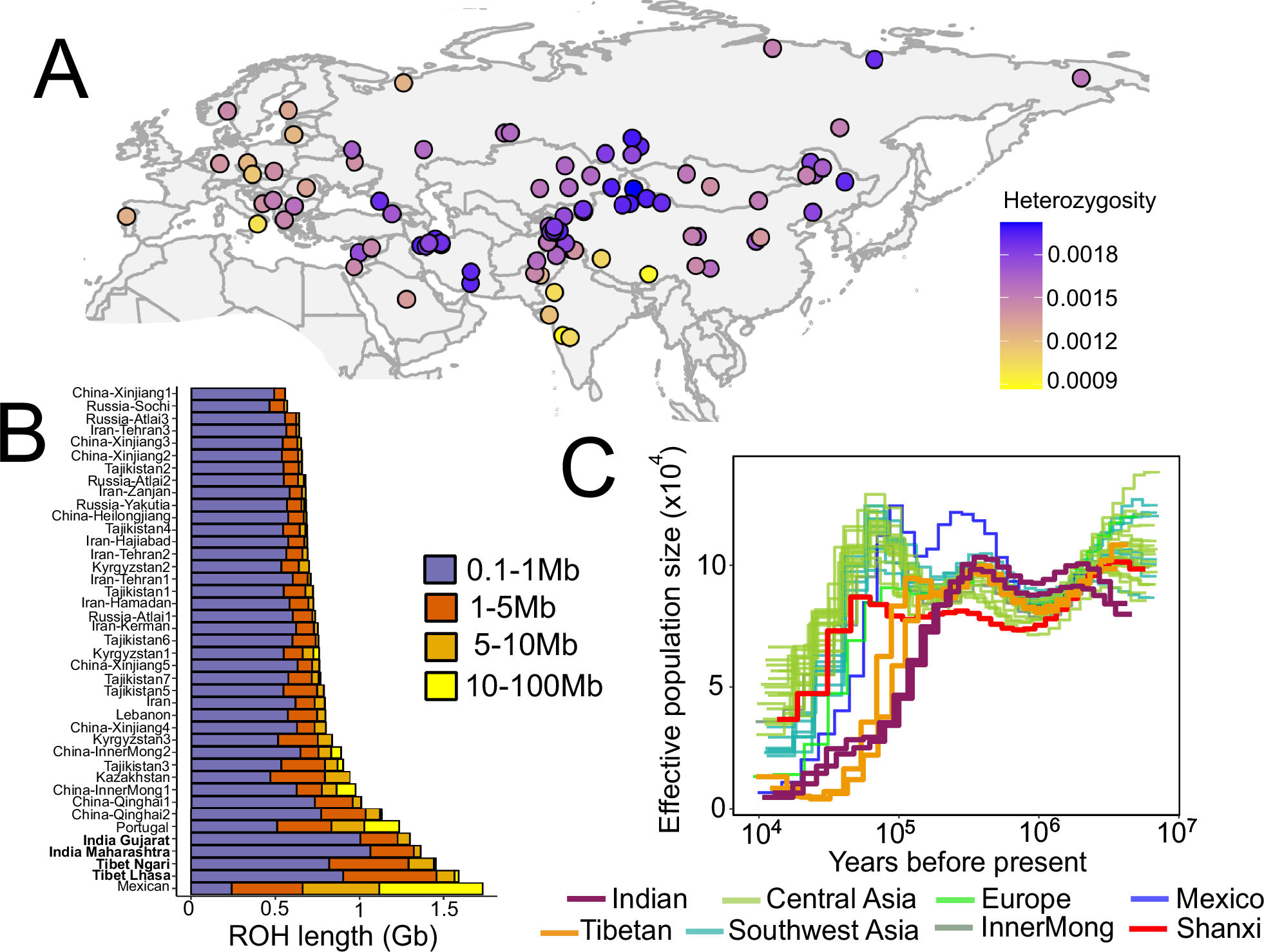

Fig. 4: Recent and long-term demographic history of wolves in Eurasia.
From: Continent-wide view of genomic diversity and divergence in the wolves of Asia
A Estimates of genome-wide heterozygosity for 96 wolves from Eurasia. B Runs of homozygosity (ROH) for 41 wolves showing the sum of the length of ROH in four size ranges: 0.1–1 Mb (Short ROH), 1–5 Mb (Short-medium ROH), 5–10 Mb (medium-long ROH), and 10–100 Mb (long ROH). Individuals are arranged from top to bottom by the sum length of ROH, with wolves representing the Indian and Tibetan lineages bolded. C Pairwise sequentially Markovian coalescent (PSMC) analysis of the demographic histories for 32 wolves from Eurasia and North America.
