Fig. 3: Temporal dynamics of estimated suitability across regions of study.

From: Land and climate suitability for West Nile virus in Atlantic archipelagos guided by historical data from Europe

Fig. 3

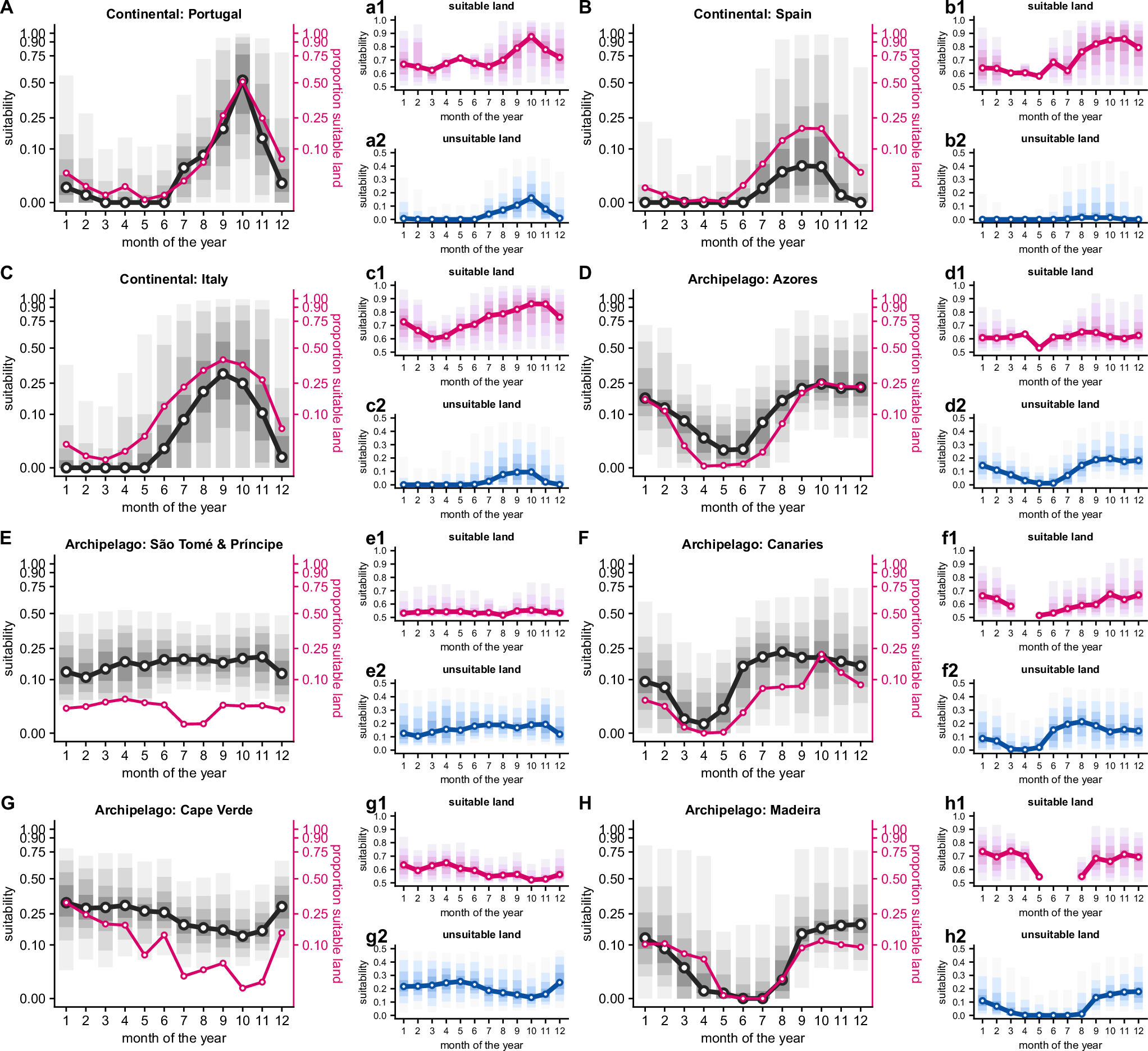

For A Portugal, B Spain, C Italy, D Azores, E São Tomé & Príncipe, F Canaries, G Cape Verde and H Madeira. Each (A–H) is composed of: (left) a large subpanel presenting the distribution of monthly suitability and the monthly proportion of suitable land; (right-top) a smaller subpanel presenting the distribution of monthly suitability in suitable land (spatial pixels with suitability >= 0.5); (right-bottom) a smaller subpanel presenting the distribution of monthly suitability in unsuitable land (spatial pixels with suitability < 0.5). For all sub panels the shaded bars per month present the 25, 50, 75 and 95 percentiles (from darker to lighter), and points and lines present medians.
