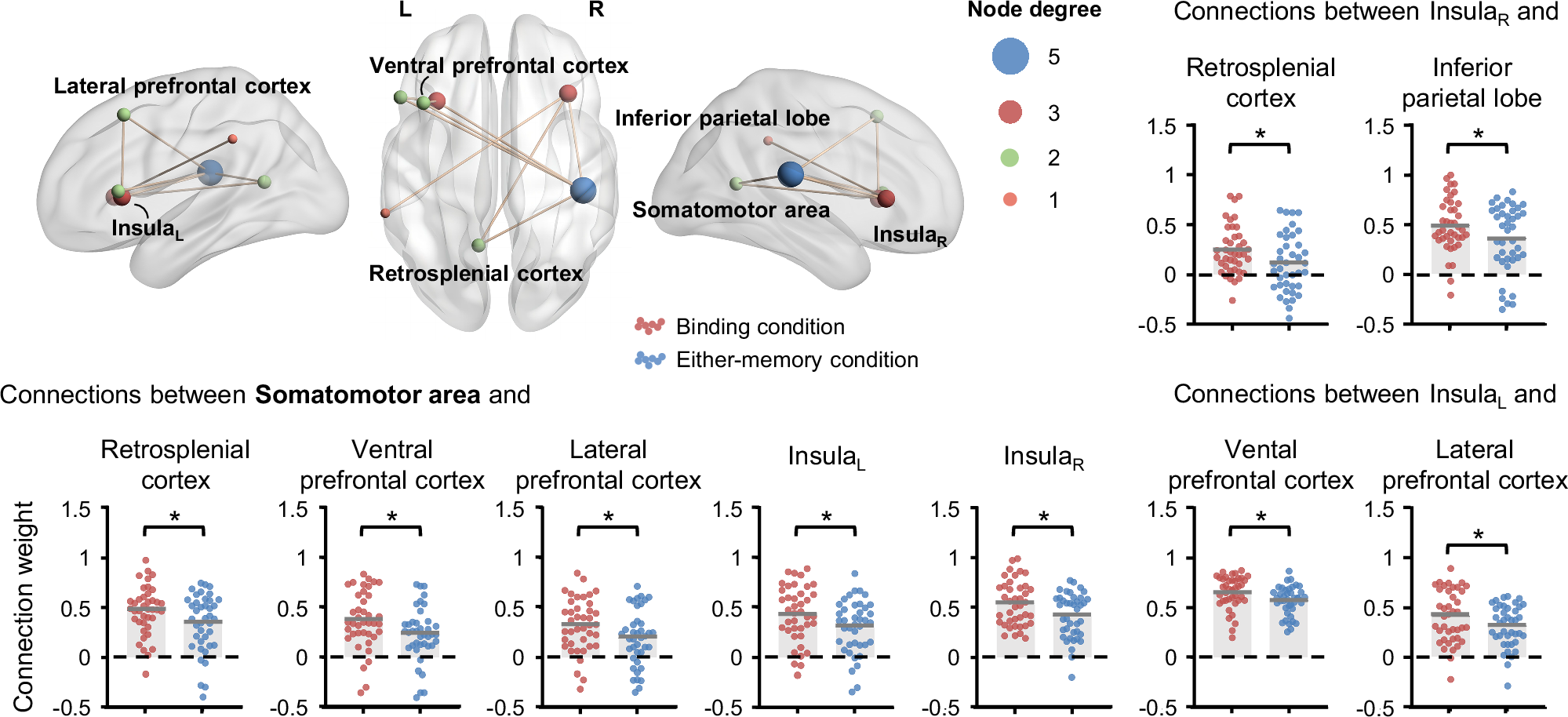

Fig. 3: The surface plot shows nine edges connecting seven brain regions that exhibit differences between the binding and either-memory conditions (n = 40 participants).
From: Neural mechanisms of feature binding in working memory
Node degree is defined as the number of edges directly connected to a specific region. The bar plots show the difference in connection weights for each edge between the binding and either-memory conditions, *p < 0.05, FDR correction. The horizontal bars indicate mean values, and each dot represents a participant.
