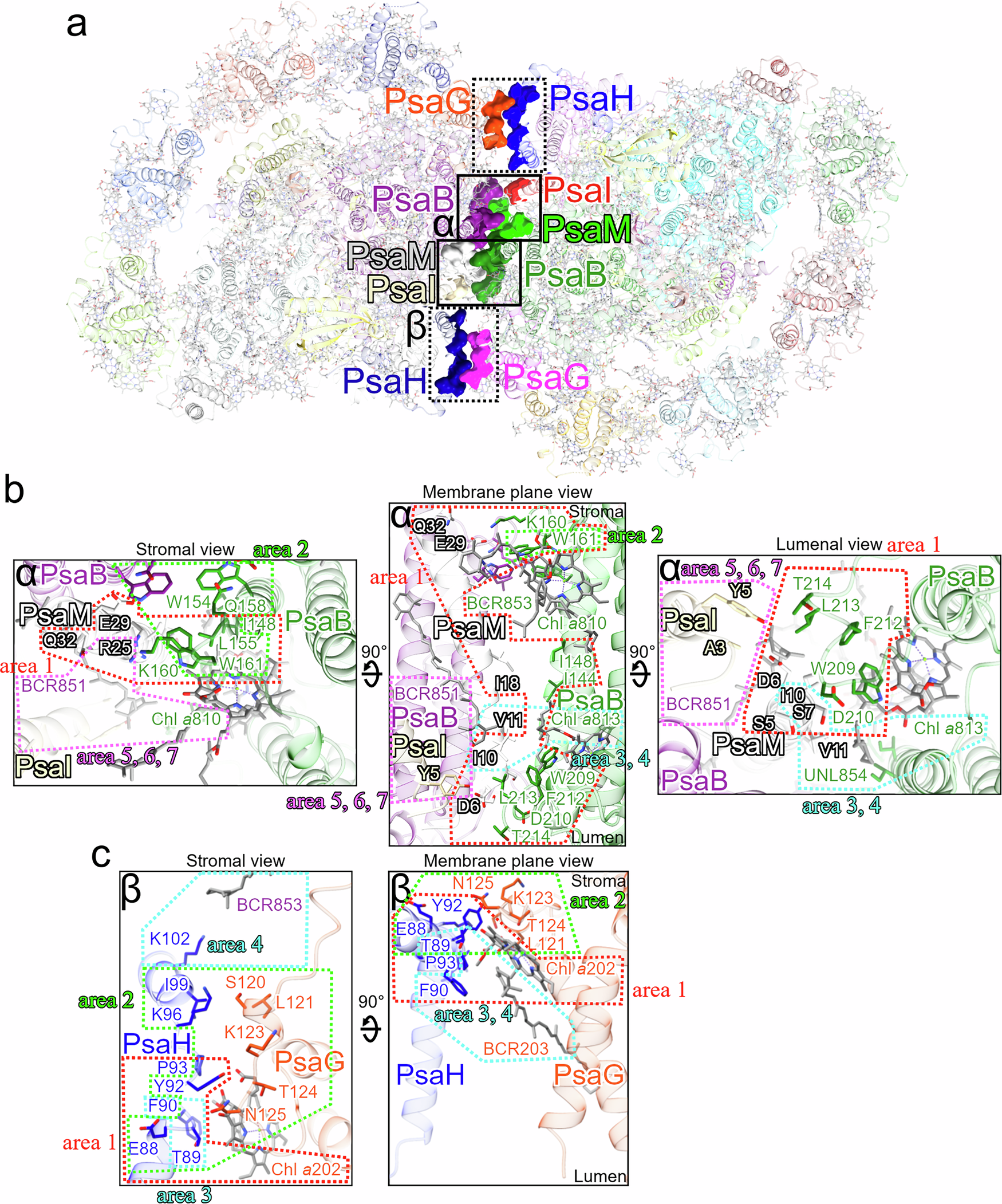

Fig. 6: The interface between the two monomers in a MpPSI-LHCIs dimer.
From: Structural study of monomeric and dimeric photosystem I-LHCI supercomplexes from a bryophyte
a The monomer-monomer interface of the MpPSI-LHCIs dimer indicated by squares. The surface of the amino acid residues participated in the interactions between the two monomers are listed in Supplementary Table 3 which is calculated by PISA analysis. The squares α with solid lines indicated the interface between PsaB, PsaI, and PsaM. The squares β with dotted lines indicated the interface between PsaG and PsaH. b The amino acid residues and ligands involved in the interactions between PsaB, PsaI, and PsaM viewed from the stromal side, lumenal side and along the membrane plane, respectively. c The amino acid residues and ligands involved in the interactions between PsaG and PsaH viewed from the stromal side and the along the membrane plane, respectively.
