From: Large magnetic anisotropy in chemically engineered iridium dimer

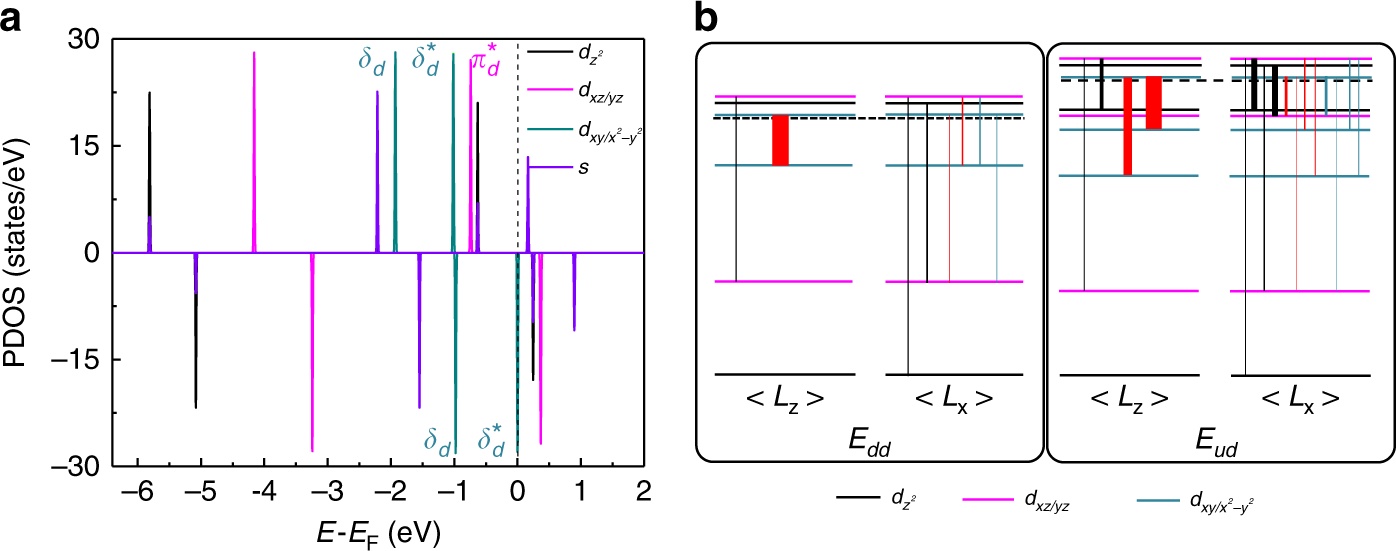

Projected density of states (PDOS) and orbital resolved magnetic anisotropy energy (MAE) of an iridium dimer (Ir2). a PDOS of the s and d orbitals of Ir2. The vertical dashed line marks the Fermi level (EF). b Nonzero contribution from each pair of molecular orbitals in the minority spin channel (Edd) and in the opposite spin channels (Eud). The horizontal dashed line shows the position of EF. The thickness of each vertical line scales with the magnitude of the corresponding contribution to MAE distinguished by different colors
