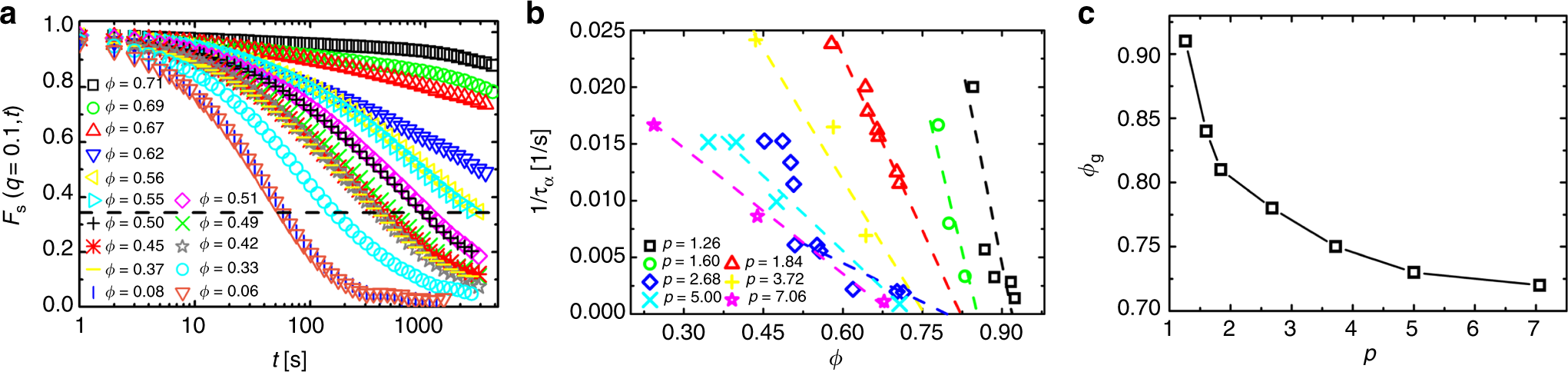

Fig. 1
From: Breakdown of diffusivity–entropy scaling in colloidal glass-forming liquids
Glass transition point. a The intermediate scattering function, Fs(q, t), of the ellipsoid with p = 2.68. The relaxation time was defined as the time at which Fs(q, t) decayed to the value 1/e (dashed horizontal line). b The inverse of the relaxation time as a function of the area fraction for all glass-forming liquids composed of ellipsoid particles. The glass transition points (ϕg) were determined by extrapolating (dashed lines) the inversed relaxation time to zero. c The ϕg of ellipsoids as a function of p
