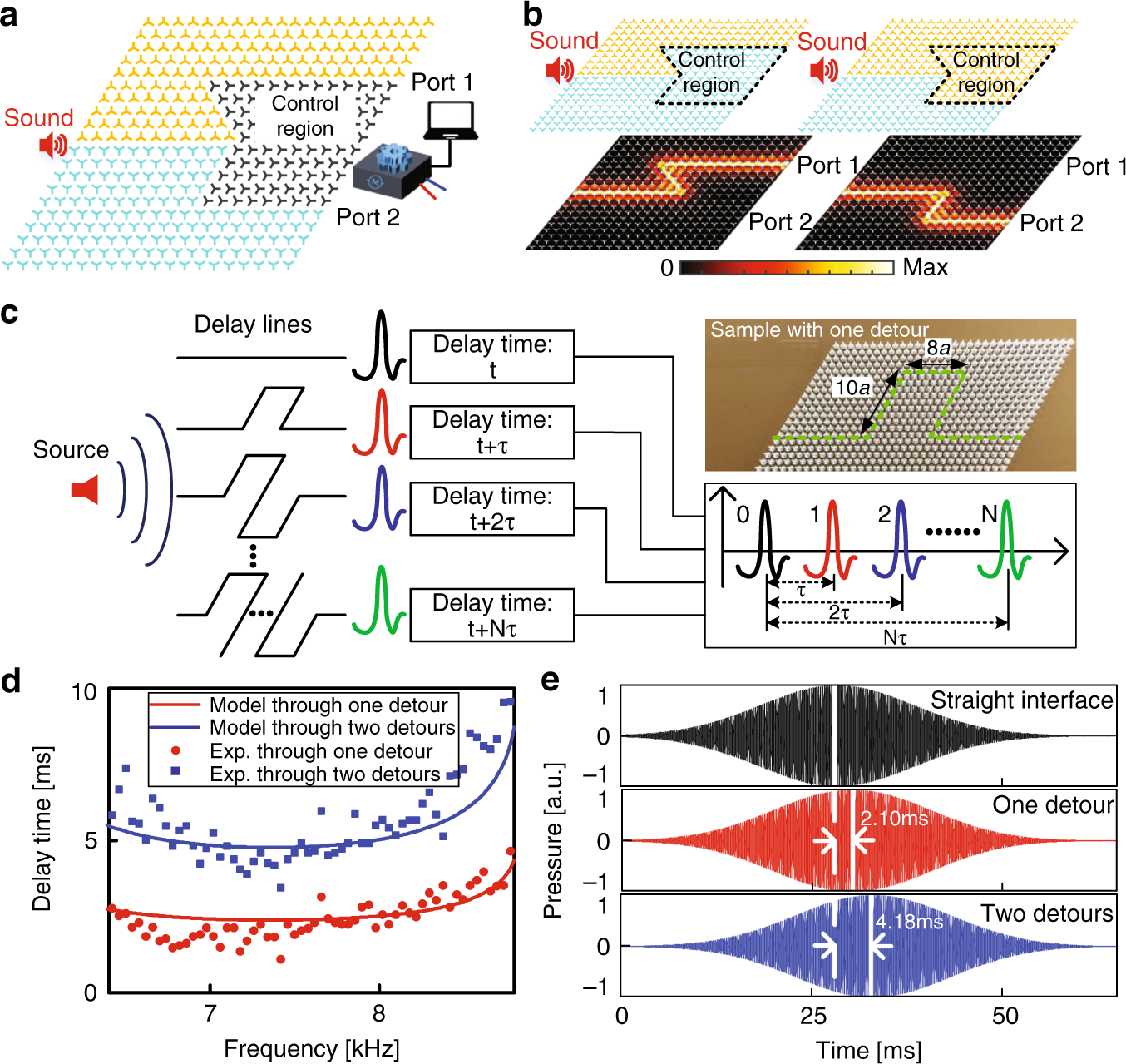

Fig. 4
From: Topological sound
Reconfigurable topological switch and broadband topological acoustic delay lines, reproduced from ref.73. a, b Show the setup and the pressure field distributions of the reconfigurable topological switch. c Schematic of topological time-delay times. d, e Show the time delays and measured signals through one and two detours
