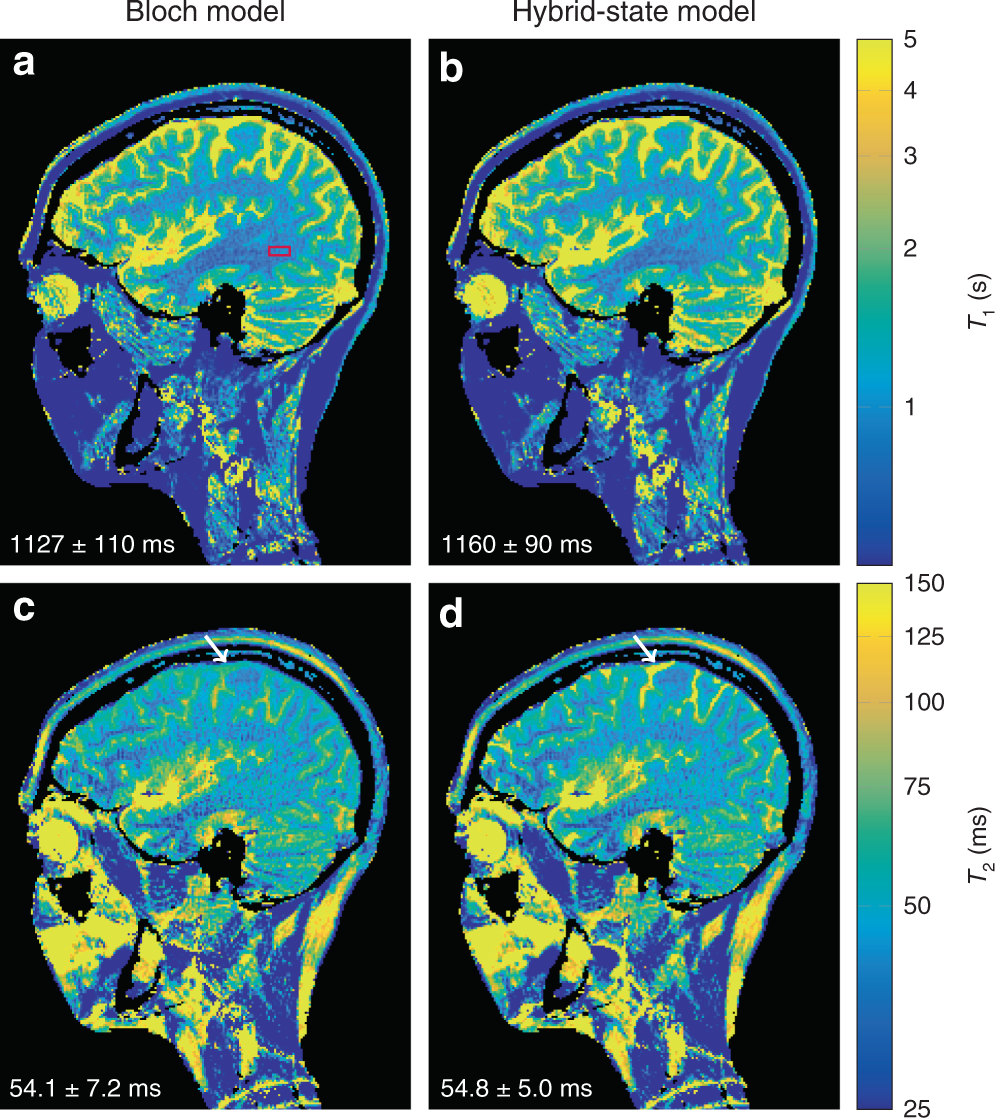

Fig. 7

In vivo validation of the hybrid-state model. A single sagittal slice of a 3D magnetic resonance imaging experiment of a human brain is depicted. a, c The data were acquired with an anti-periodic hybrid-state experiment and were fitted with the Bloch model (Eq. (1)), and b, d with the hybrid-state model (Eqs. (5–7)). The parameter maps have a resolution of 1 mm × 1 mm × 2 mm and spatial encoding was performed with a 3D stack-of-stars k-space trajectory⁶². The red box indicates a region of interest used for extracting the T₁ and T₂ values denoted in the corner of the images. The arrows indicate a region with very long relaxation times in which slight deviations between the models can be observed. Note the logarithmic scale of the color coding
