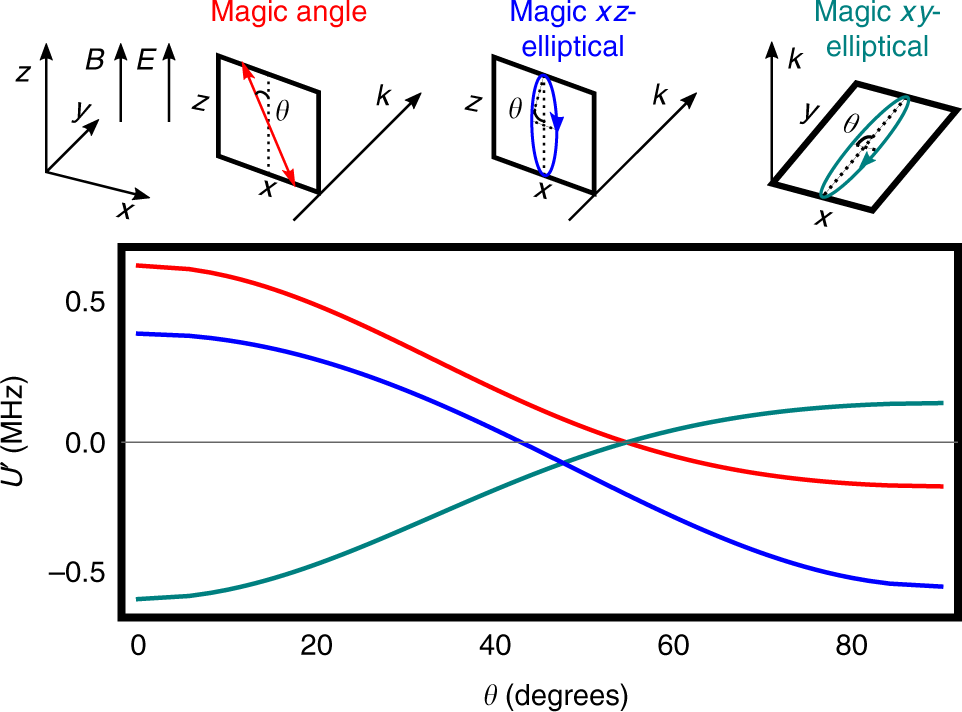

Fig. 1
From: Nuclear-spin dependent parity violation in optically trapped polyatomic molecules
Polarization sensitivity for magic optical trapping. The Differential ac Stark shift U′ is plotted as a function of polarization angle θ as defined in the figures for the nominal |N = 1, J = 1/2, F = 3, mF = 3, P = +〉, |N = 1, J = 3/2, F = 3, mF = 3, P = −〉 parity violation (PV) pair in 25MgNC. For each configuration U = 1.2 MHz for the PV pair when U′ = 0 at θmagic. The calculation is performed with B ≈ 8.072 mT such that the PV pair is degenerate in the absence of the trapping field. (Red) linear polarization in the x, z-plane, (blue) elliptical polarization in x, z-plane, (green) elliptical polarization in x, y-plane
