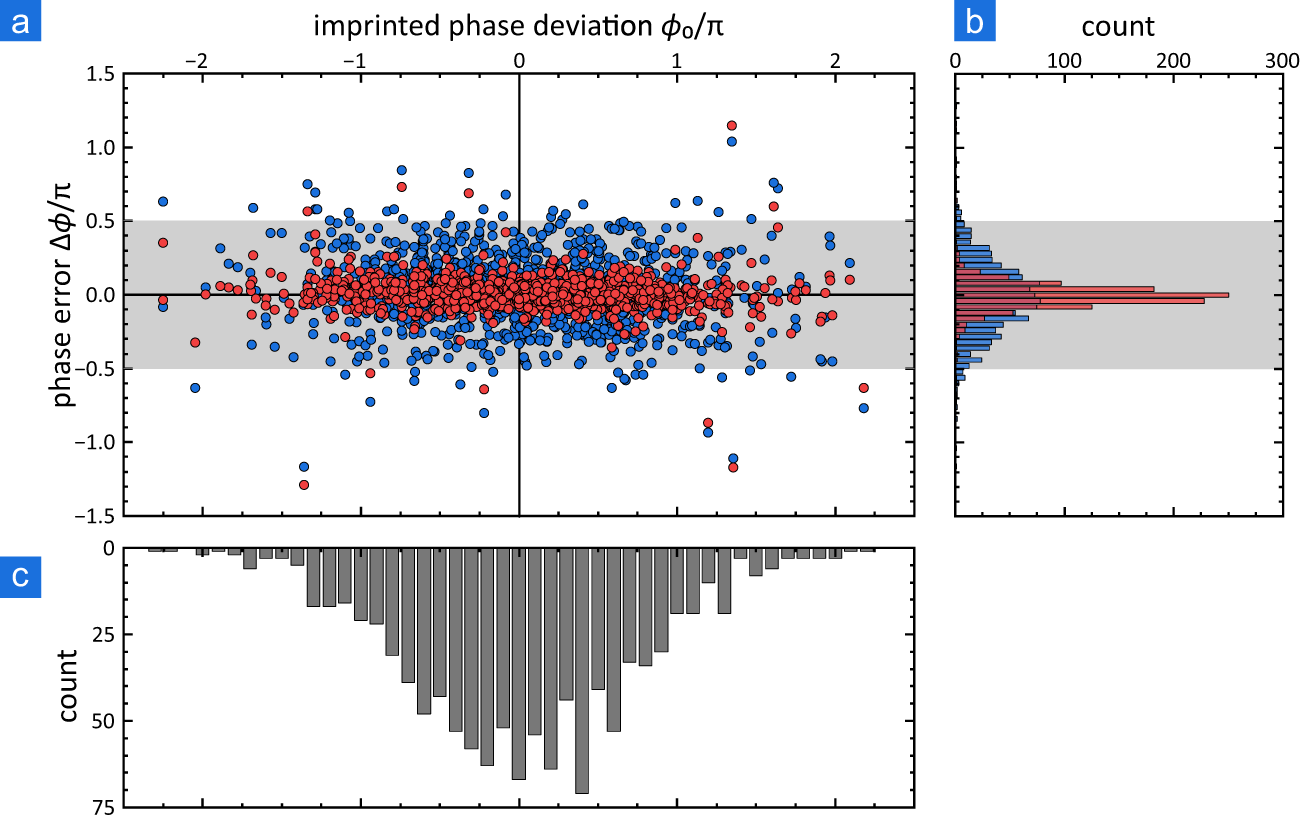

Fig. 4: Results of the compound clock demonstration.
From: Dynamical decoupling of laser phase noise in compound atomic clocks
