Fig. 2: Interferograms and analyzed shock waveforms.
From: Interferometric and fluorescence analysis of shock wave effects on cell membrane

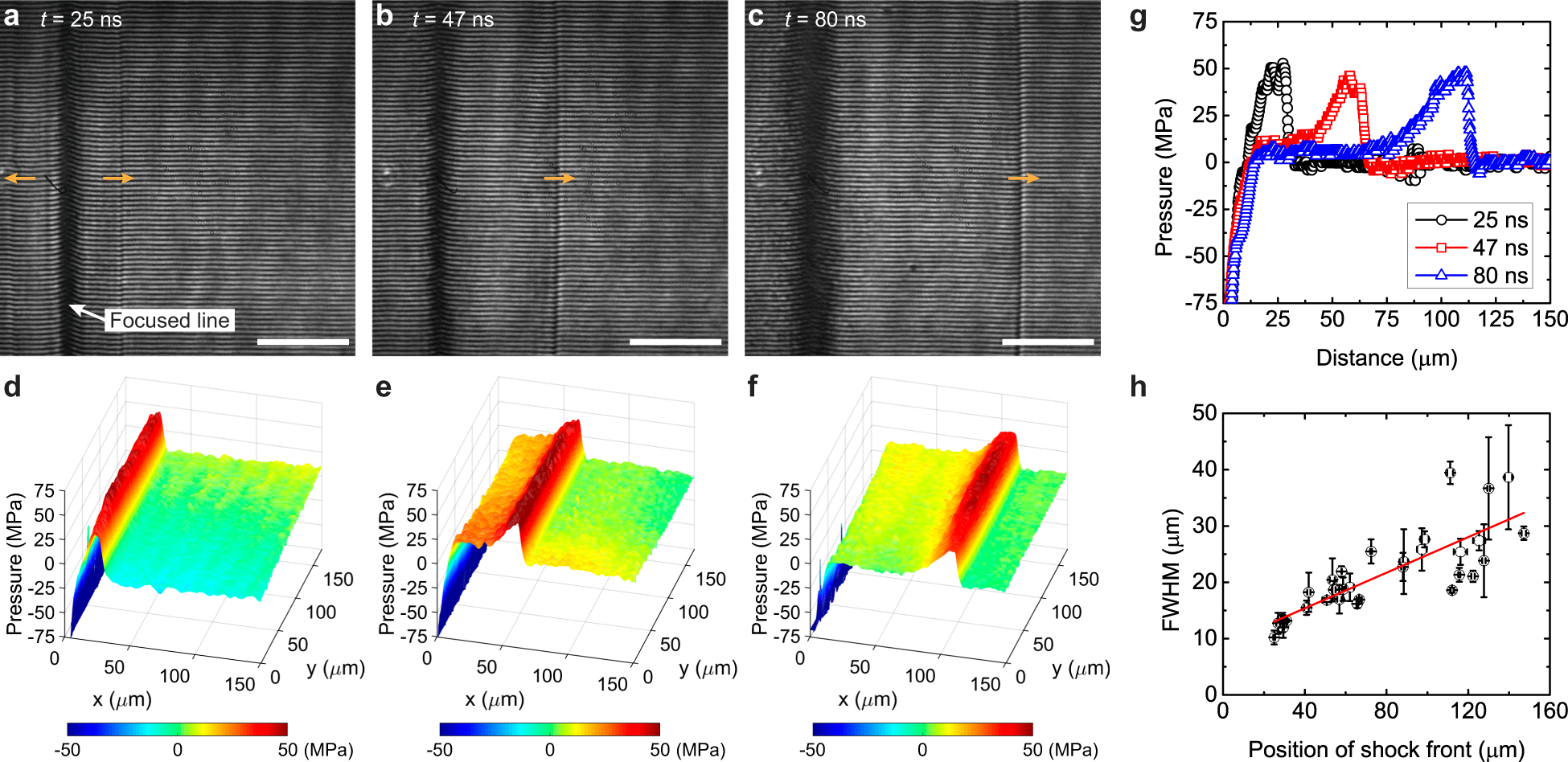

a–c Interferometric images showing shock wave propagation at three different time delays t. Arrows indicate the propagation direction of the shock fronts. Bubbles are formed at the laser focused area and appear as a black line on the images. Each image was recorded from a different sample region. Scale bars, 50 µm. d–f Spatial distributions of pressure extracted from a–c, respectively. g Comparison of shock waveforms at different time delays as a function of the distance from the laser-focused line. h Full width at half maximum (FWHM) of each shock waveform as a function of the position of shock front with respect to the laser-focused line. The error bars indicate the standard deviation.
