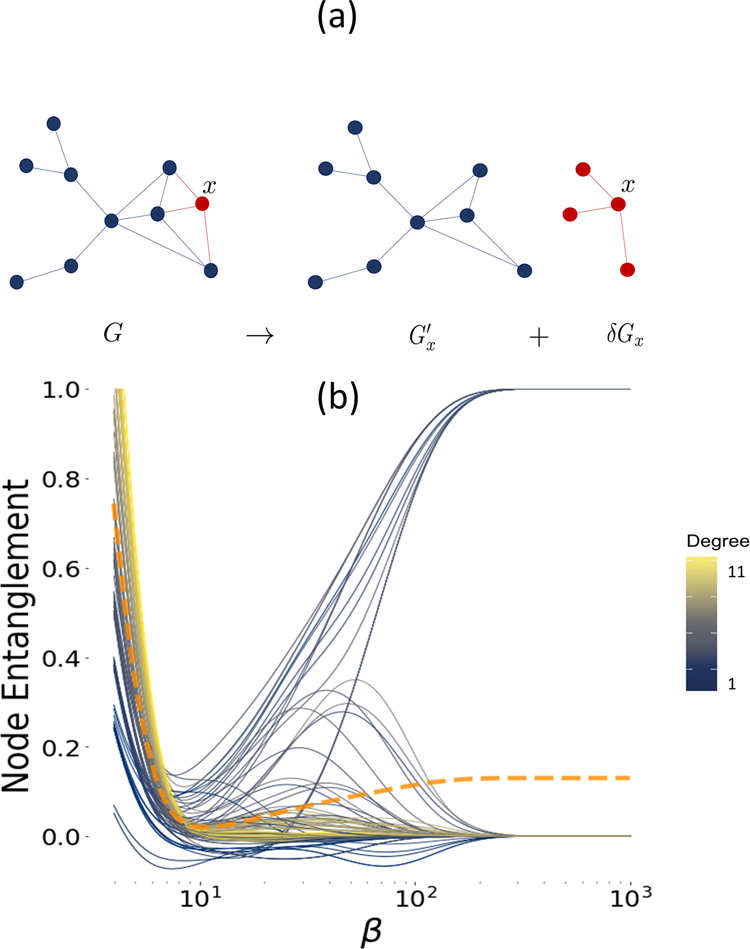

Fig. 1: Detachment process and entanglement centrality.
From: Unraveling the effects of multiscale network entanglement on empirical systems
