Fig. 1: Sketch of the extensive microperfusion system (EMPS). | Communications Physics

Fig. 1: Sketch of the extensive microperfusion system (EMPS).

From: Scale invariance of cell size fluctuations in starving bacteria

Fig. 1

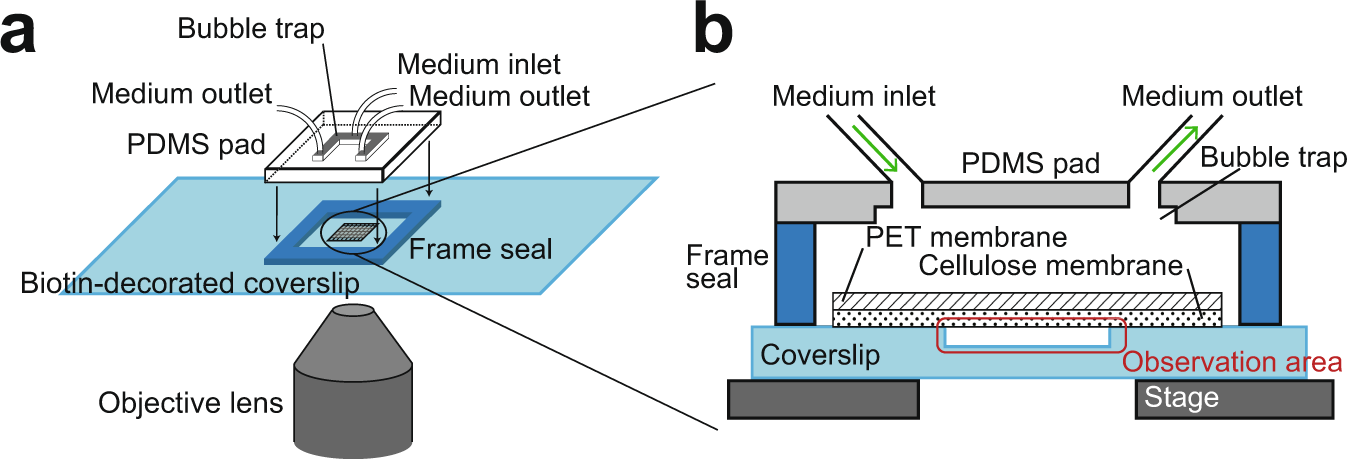

a Entire view of the device. Microwells are created on a glass coverslip. We attach a polydimethylsiloxane (PDMS) pad on the coverslip with a square frame seal to fill the system with liquid medium. b Cross-sectional view inside the PDMS pad. A polyethylene terephthalate (PET)–cellulose bilayer porous membrane is attached via the biotin–streptavidin bonding. Note that there are two outlets as in (a).
