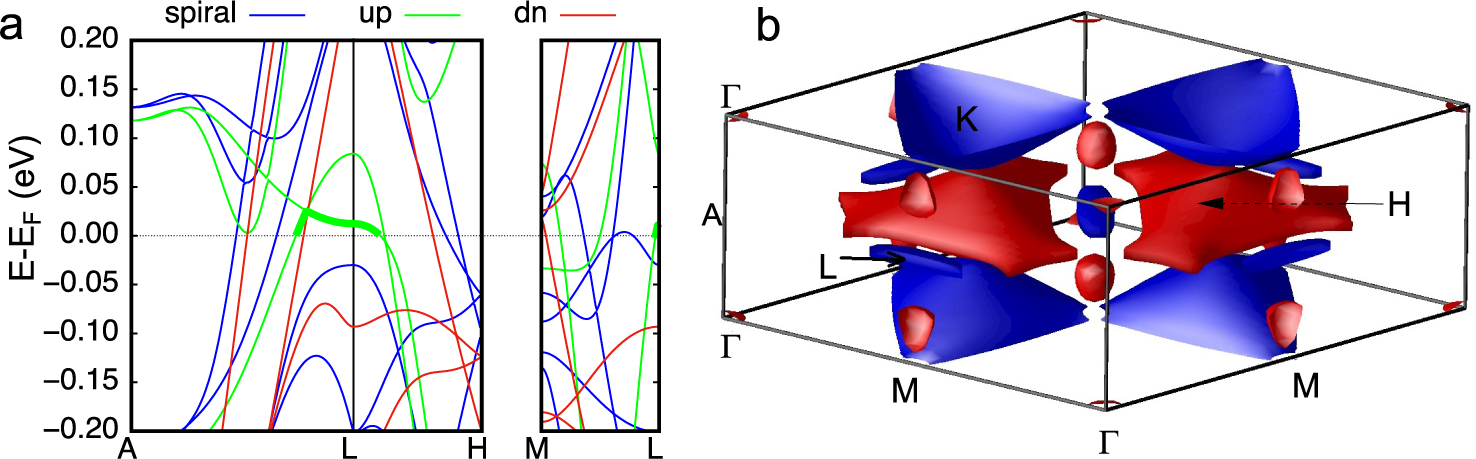

Fig. 4: Electronic band structure and Fermi surface of YMn6Sn6.
From: Magnetization-driven Lifshitz transition and charge-spin coupling in the kagome metal YMn6Sn6
a Calculated electronic band structure near the Fermi energy, EF, at the L point of YMn6Sn6 in the magnetic spiral ground state, (blue lines) and in the spin polarized state. The lines with green, and red color represent spin up (up) and spin down (dn) bands, respectively. All calculated bands are shown in Supplementary Fig. 8. b Calculated Fermi surface around Γ, M and L points.
