Fig. 2: Histogram of induced magnetic field along x- and z-axes in the qubit volume.

From: Quantum control of spin qubits using nanomagnets

Fig. 2

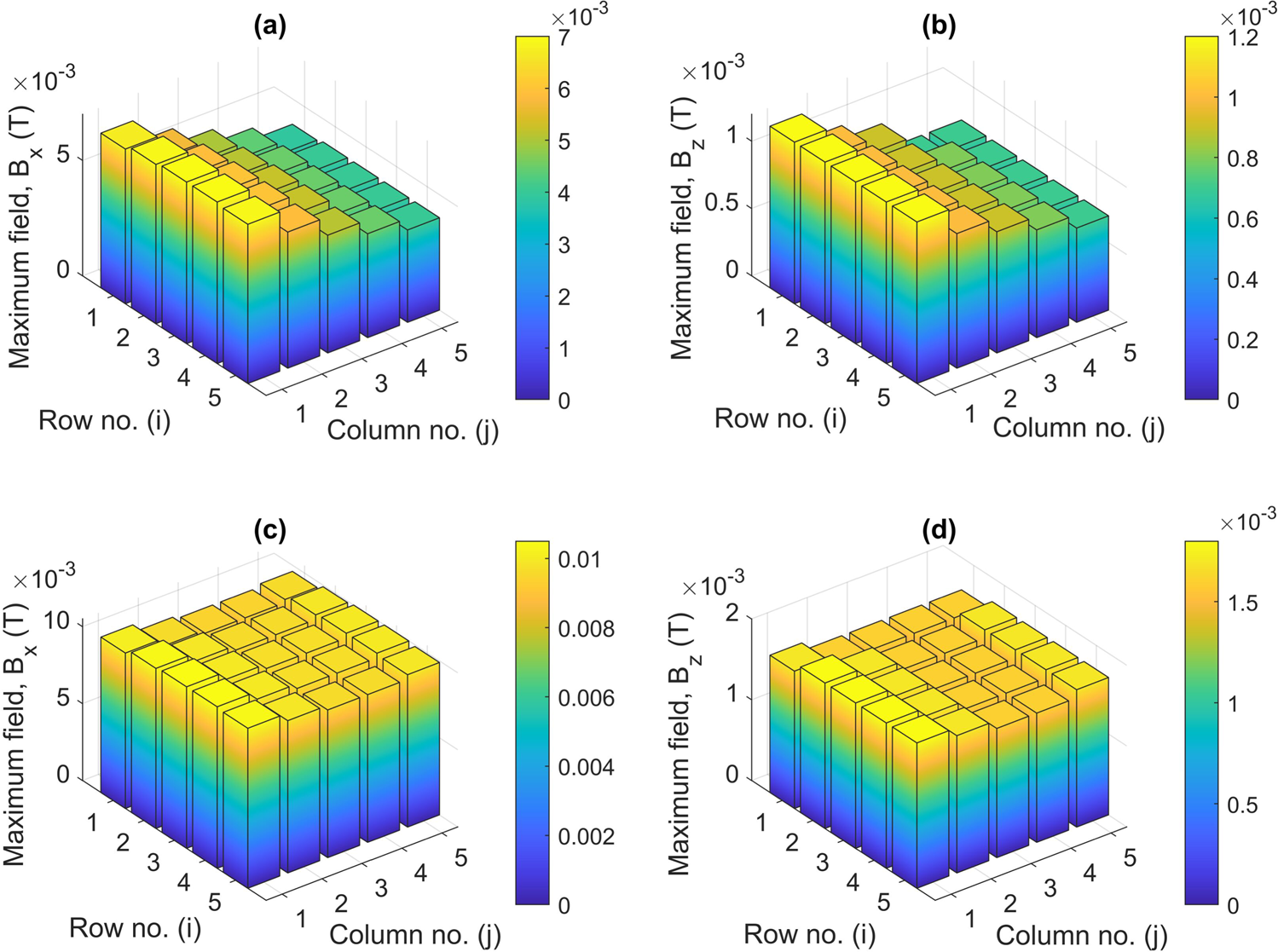

a Maximum magnetic field of each spin along x (Bx), and b along z (Bz), induced by a single nanomagnet. c Maximum magnetic field of each spin along x (Bx), and d along z (Bz), induced in the dual nanomagnet setup. The color map indicates low (blue) and high (yellow) induced field.
