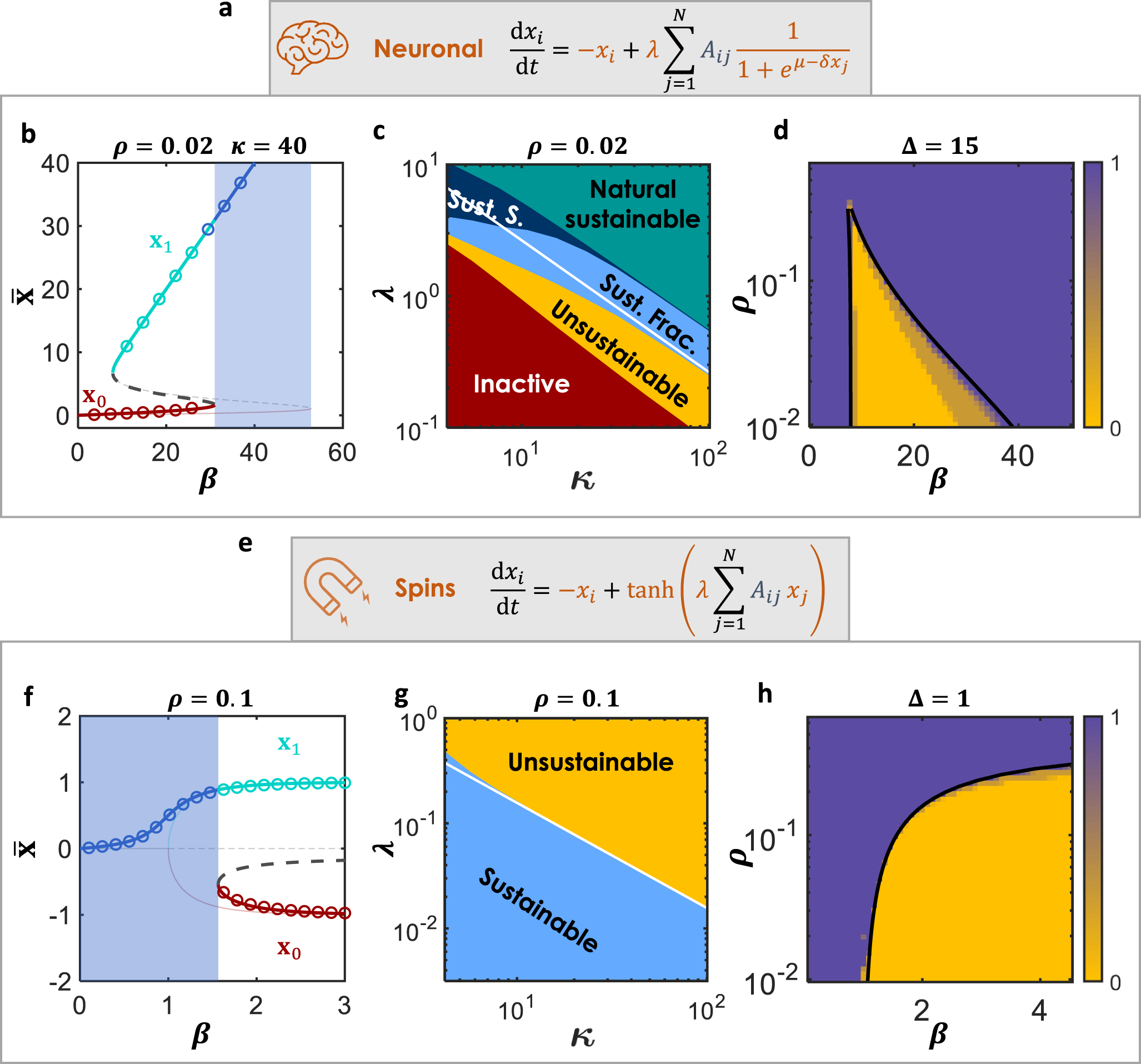

Fig. 5: Sustaining neuronal and spin dynamics.
From: Sustaining a network by controlling a fraction of nodes
