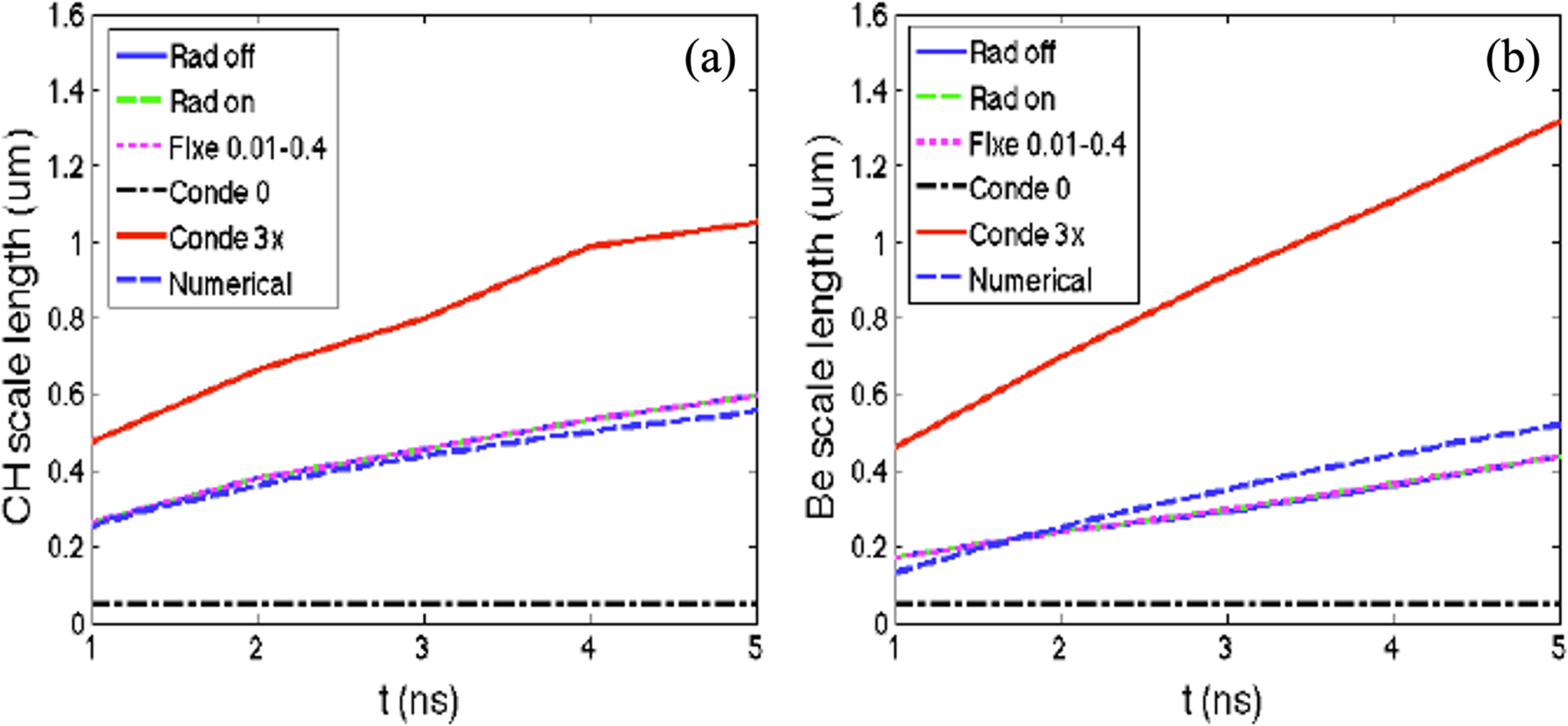

Fig. 7: Effect of radiation transport and ballistic transport.

From: Thermal transport in warm dense matter revealed by refraction-enhanced x-ray radiography with a deep-neural-network analysis

Fig. 7

a LCH vs time. b LBe vs time. Rad off radiation is turned off. Rad on radiation is included. Flxe 0.01–0.4: the electron flux limiter is varied from 0.01 to 0.4. Conde 0: electron thermal conduction is turned off. Conde 3x: electron thermal conduction is multiplied by 3 ×. Numerical: the numerical solution of the conduction equations as described in the text. The numerical results agree with the HYADES simulations.
