Fig. 5: Symmetry adapted linear combination of Bloch valley states.
From: Hydrogenic spin-valley states of the bromine donor in 2H-MoTe2

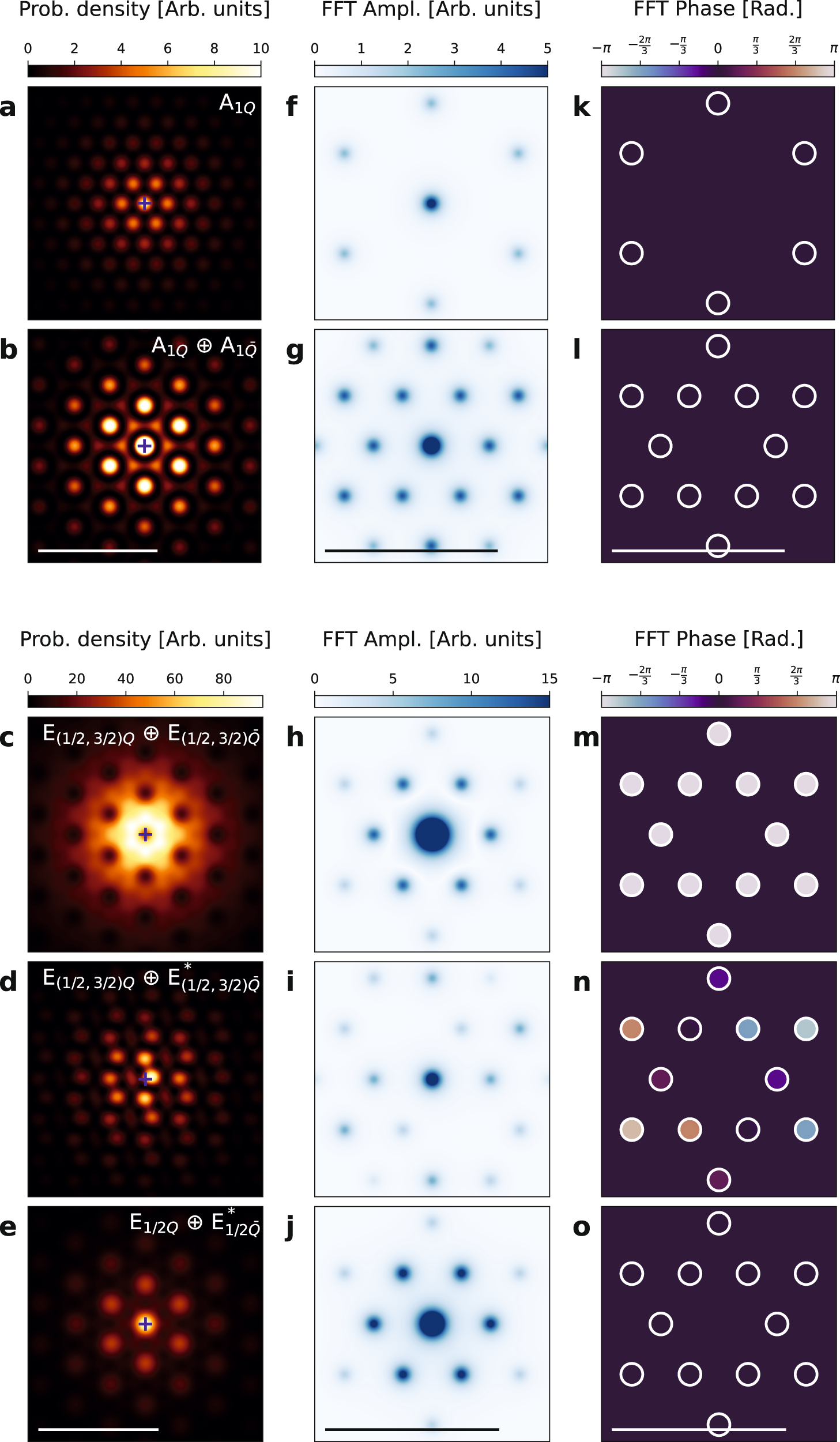

a–e Maps of the probability density for dopant states transforming as different irreps or combination of different irreps as indicated in the panels. See section “Modeling of the dopant states” for details. The color-bar quantifies the amplitude. The white scale bars are 3 nm long. On each panel, a plus symbol indicates the center of the image. f–j Maps of the amplitude of the two-dimensional fast Fourier transforms (2D-FFTs) applied to the probability density maps. The color-bar quantifies the amplitude. The black scale bars are equals to the length of the reciprocal lattice vector \(\parallel {\overrightarrow{a}}^{\star }\parallel\). k–o Maps of the phase of the 2D-FFTs applied to the probability density maps. The color-bar quantifies the value of the phase. The white scale bars are equals to the length of the reciprocal lattice vector \(\parallel {\overrightarrow{a}}^{\star }\parallel\).
