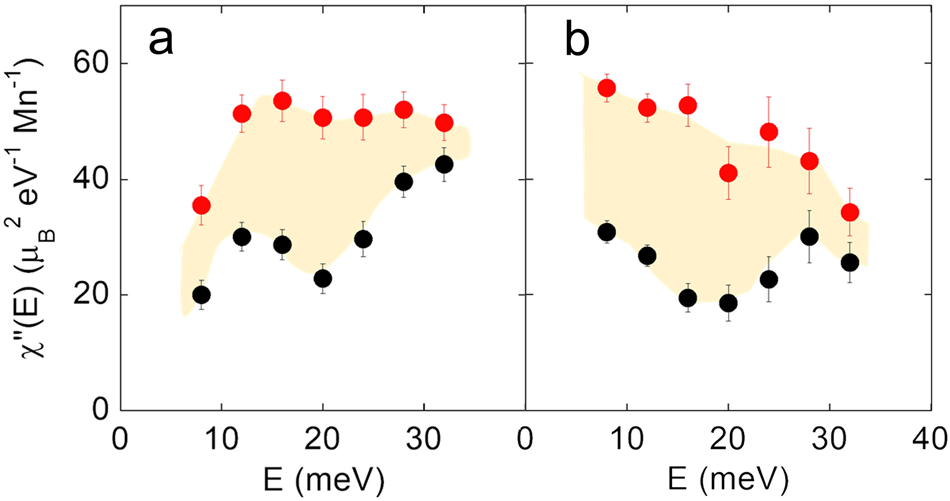

Fig. 4: Q-integrated dynamical spin susceptibility χ”(E) as a function of energy.
From: Spiral spin cluster in the hyperkagome antiferromagnet Mn3RhSi
The dynamical spin susceptibility χ”(E) at T = 6 K (a) and 200 K (b) is estimated from the constant-energy scans in Fig. 3, which is integrated along [h,1,1]. Red and black closed circles are measured at two Q positions (-1,1,1) and (1,1,1), respectively. The significant difference between them corresponds to a spiral spin dynamical structure factor. The errors (SD) are estimated based on the Gaussian fittings in the constant-energy scans of Fig. 3.
