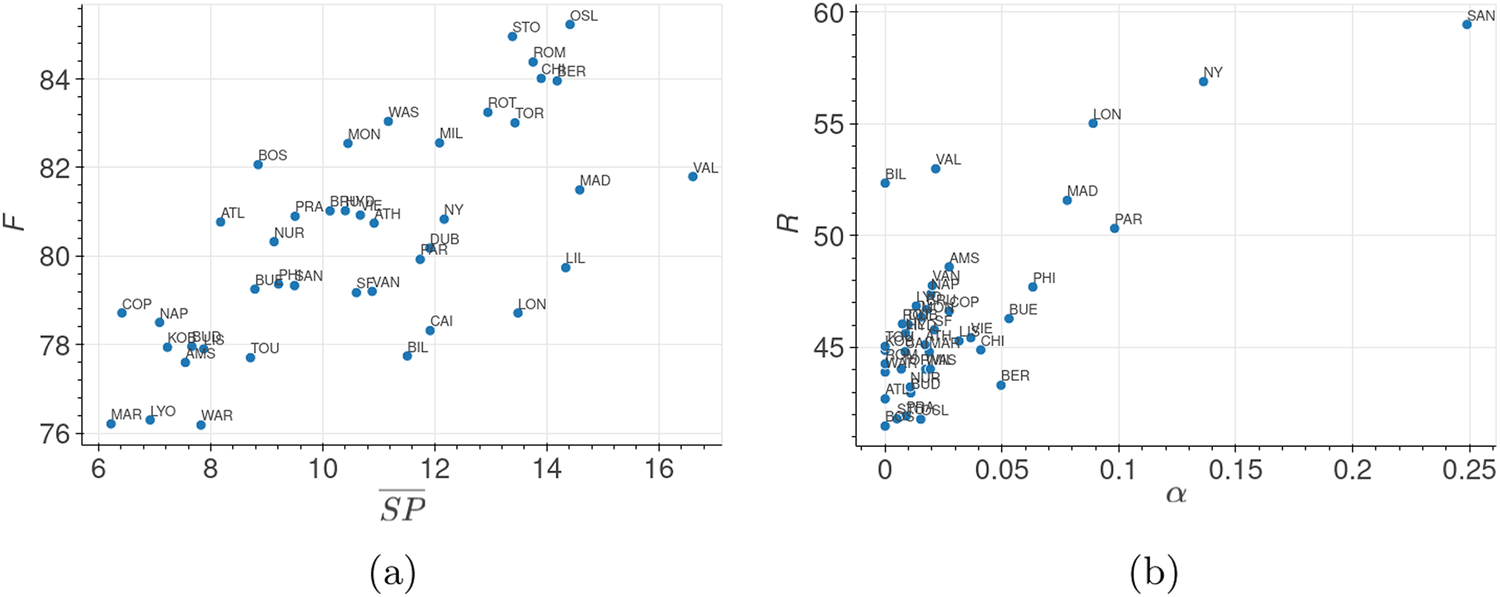

Fig. 7: Scatter plots of recoverability against topological indicators. Results correspond to the scenario with 100% removed links and considering the average over all the independent execution.
From: Topological assessment of recoverability in public transport networks
Each data point corresponds to a single network. a shows the F indicator against the average shortest path \(\overline{SP}\). b shows the R indicator against the meshedness α.
