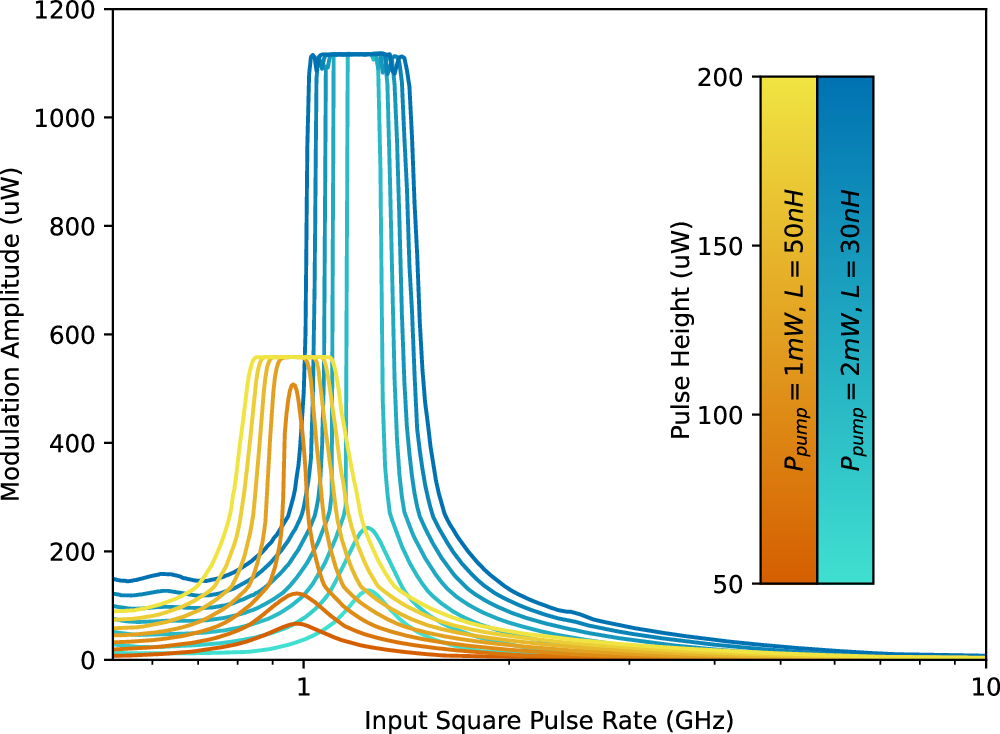

Fig. 6: Resonant behavior of the spiking system.
From: Design of a monolithic silicon-on-insulator resonator spiking neuron
A square wave with varying frequency and amplitude is inputted into the spiking neuron and the modulation amplitude is measured. The amplitude variation is represented by a color gradient. The frequency response of two separate spiking neurons with different resonator inductances and pump powers are shown.
