Fig. 6: Variation of Jaccard similarity coefficients for two yearly networks at different geographical distances. | Communications Physics

Fig. 6: Variation of Jaccard similarity coefficients for two yearly networks at different geographical distances.

From: Time persistence of climate and carbon flux networks

Fig. 6

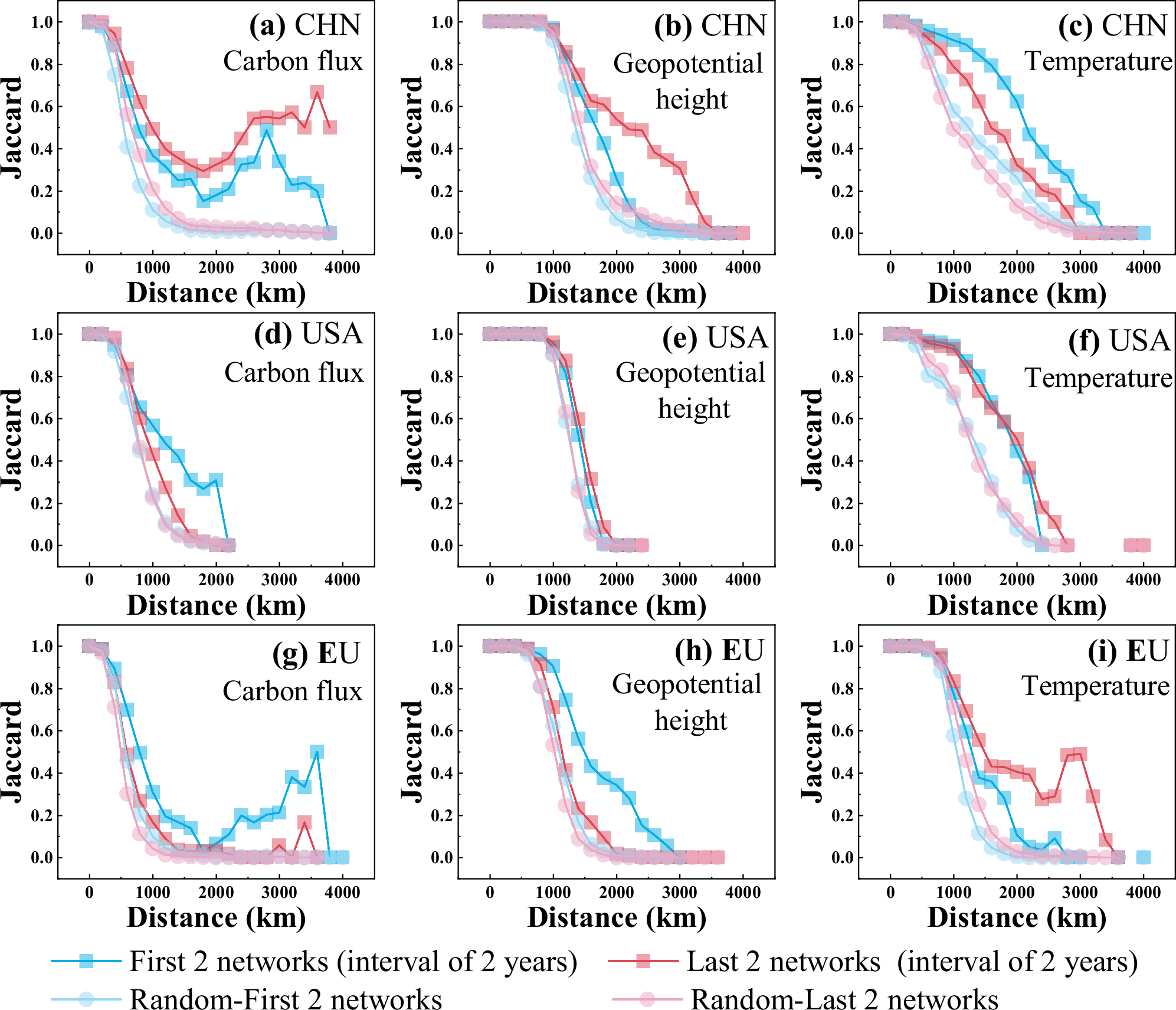

The variation of carbon flux, geopotential height, and temperature for different regions: a–c CHN, d–f USA, and g–i EU. Darker colors represent the variation of Jaccard’s similarity coefficients for actual scenarios. Light colors represent the variation of Jaccard’s similarity coefficients for random scenarios.
