Fig. 10: Experimental setup.
From: Suppressing unknown disturbances to dynamical systems using machine learning

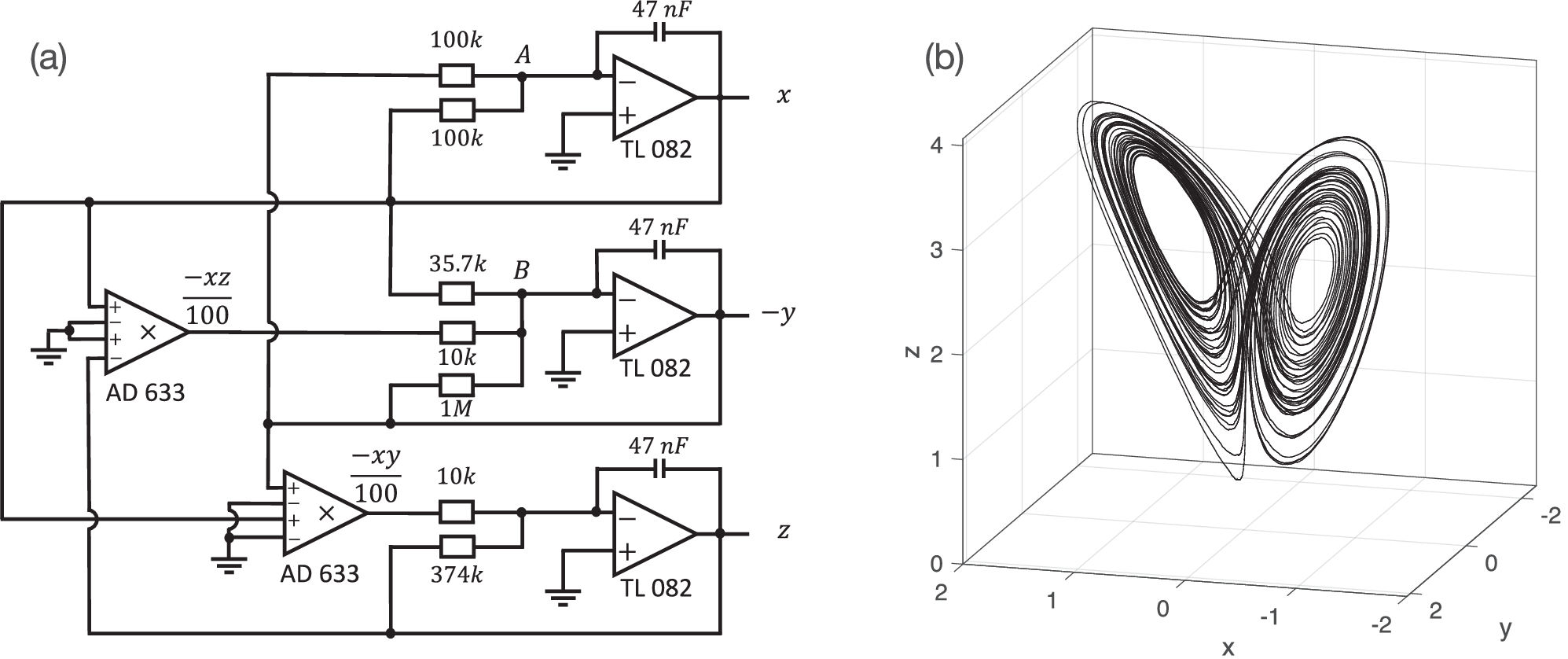

a Circuit for Lorenz attractor. Integrators are based on the TL082 operational amplifier while the multipliers are based on the AD633 chip. Circuit recreated from ref. 32. b Output of the circuit, where units are in volts.
