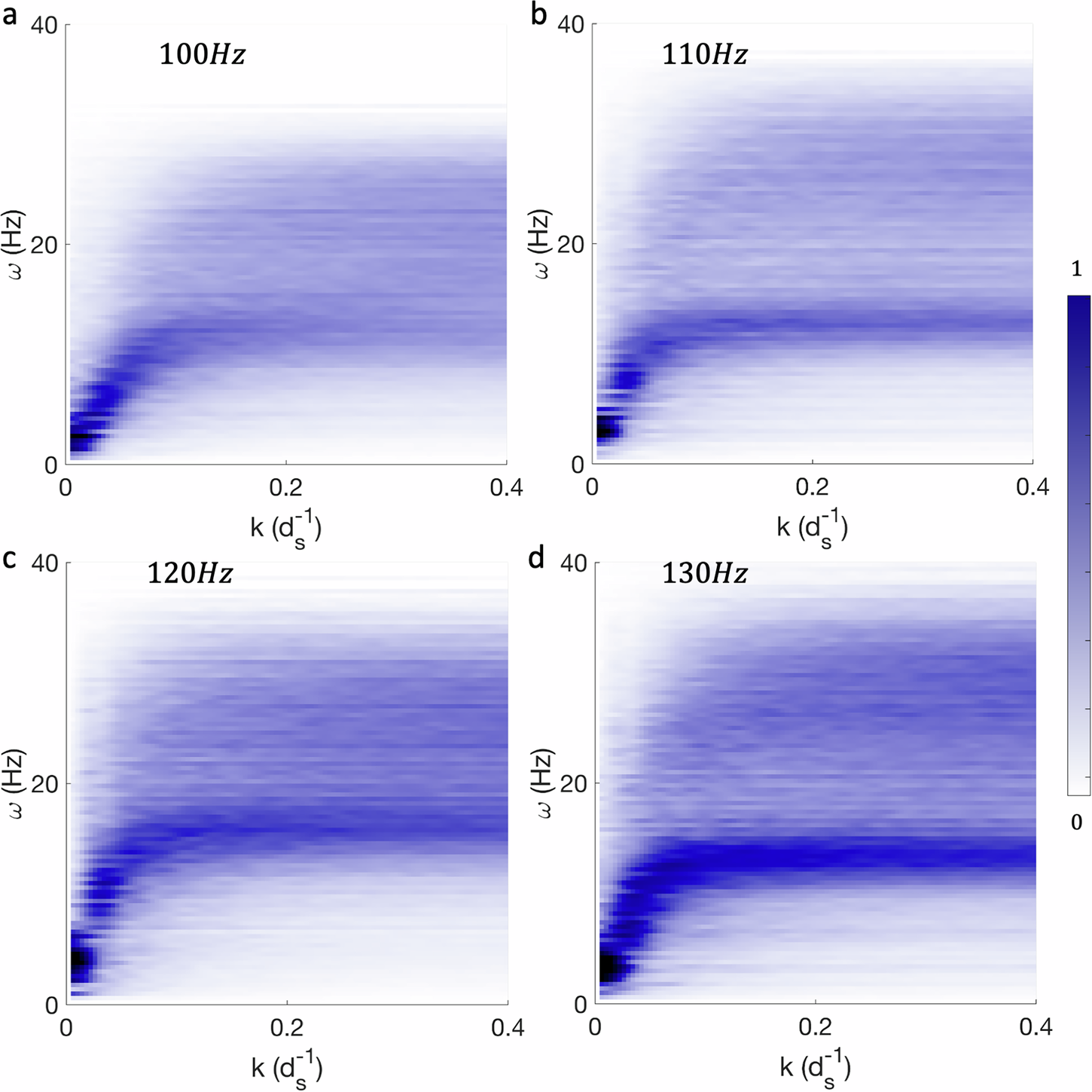

Fig. 7: Longitudinal dispersion relation under different driving frequency.

The longitudinal dynamical structure factor under different driving frequencies f = 100, 110, 120, 130 Hz from (a) to (d). The packing fraction is fixed to ϕ = 0.822 and the acceleration to a = 2.5g.
