Fig. 1: Experimental and simulation configurations for particle packing and heap.

From: Crossover scaling of structural and mechanical properties in 3D assemblies of non-spherical, frictional particles

Fig. 1

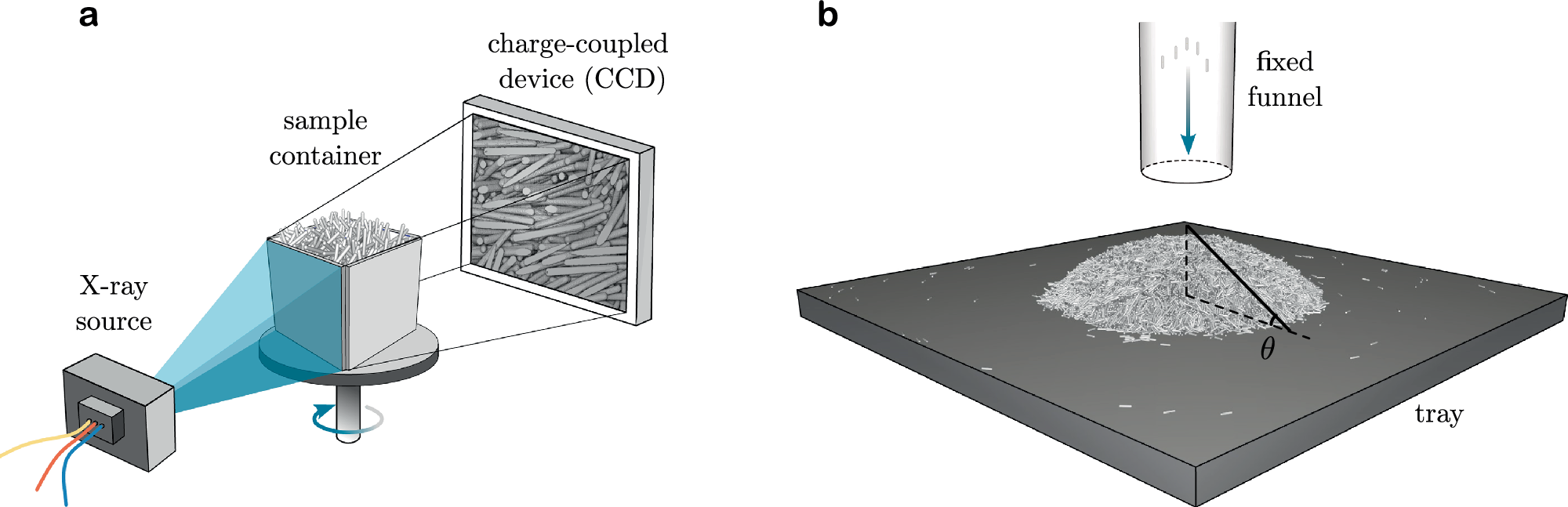

a X-ray CT scan of a cubic container filled with cylindrical particles, each with an aspect ratio (λ) of 10. b Schematic of the particle release process through a fixed funnel onto a rough tray, applicable to both experimental and simulation setups. When the system becomes stable, the mean angle of repose (θ) is measured.
