Fig. 7: SpooQy-1’s in-orbit temperature and altitude. | Communications Physics

Fig. 7: SpooQy-1’s in-orbit temperature and altitude.

From: Comparing a radiation damage model for avalanche photodiodes through in-situ observation of CubeSat based devices

Fig. 7

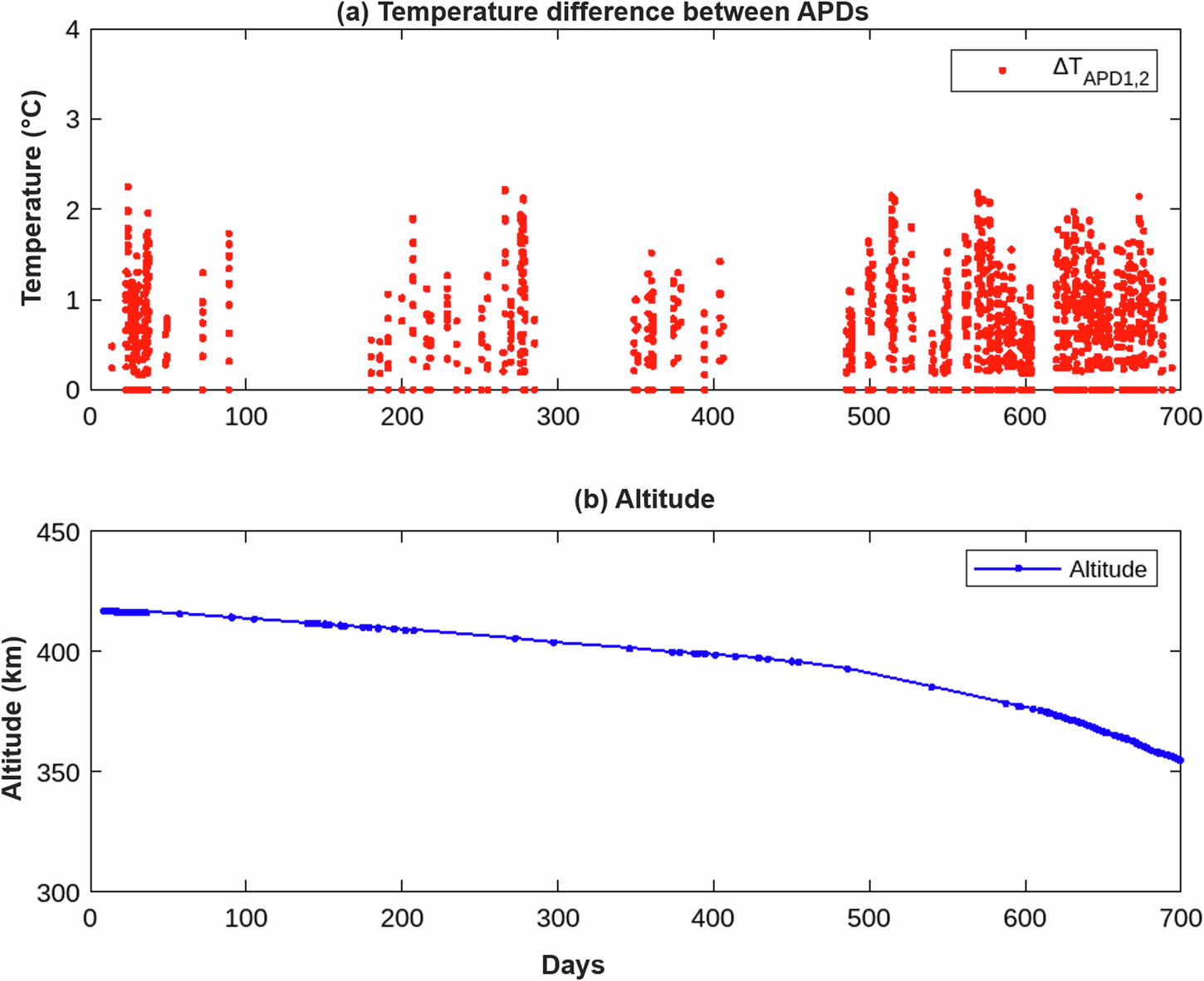

a Observed temperature difference between GM-APDs over the mission duration (700 days). This data demonstrates that neither GM-APD experienced large temperature excursions and were relatively close in temperature. There are gaps in the data because the payload was not operated every day. b Orbital altitude during mission lifetime.
