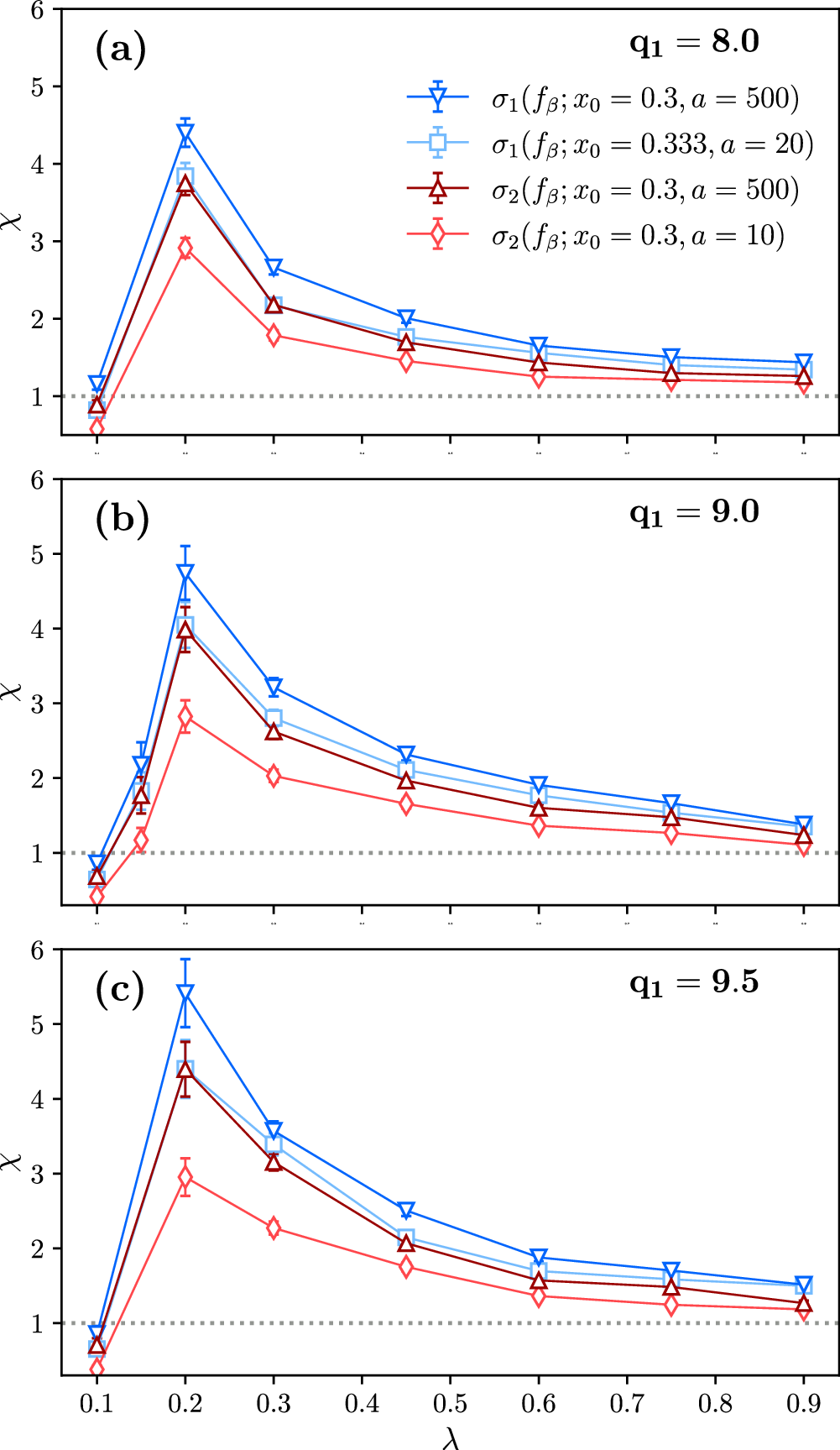

Fig. 3: Performance of non-linear cross-inhibition responses under varying interdependence.
From: Non-linear inhibitory responses enhance performance in collective decision-making
Performance ratio χ of non-linear cross-inhibitory responses on increasing interdependence λ, in a binary-choice scenario. Three quality pairs are represented in a: (q1 = 8, q2 = 10), b (q1 = 9, q2 = 10) and c (q1 = 9.5, q2 = 10). Other model parameters are \({\pi }_{1}={\pi }_{2}=0.1,{\lambda }^{{\prime} }=1\) and system size N = 1000. Error bars indicate the propagated standard error of the mean.
