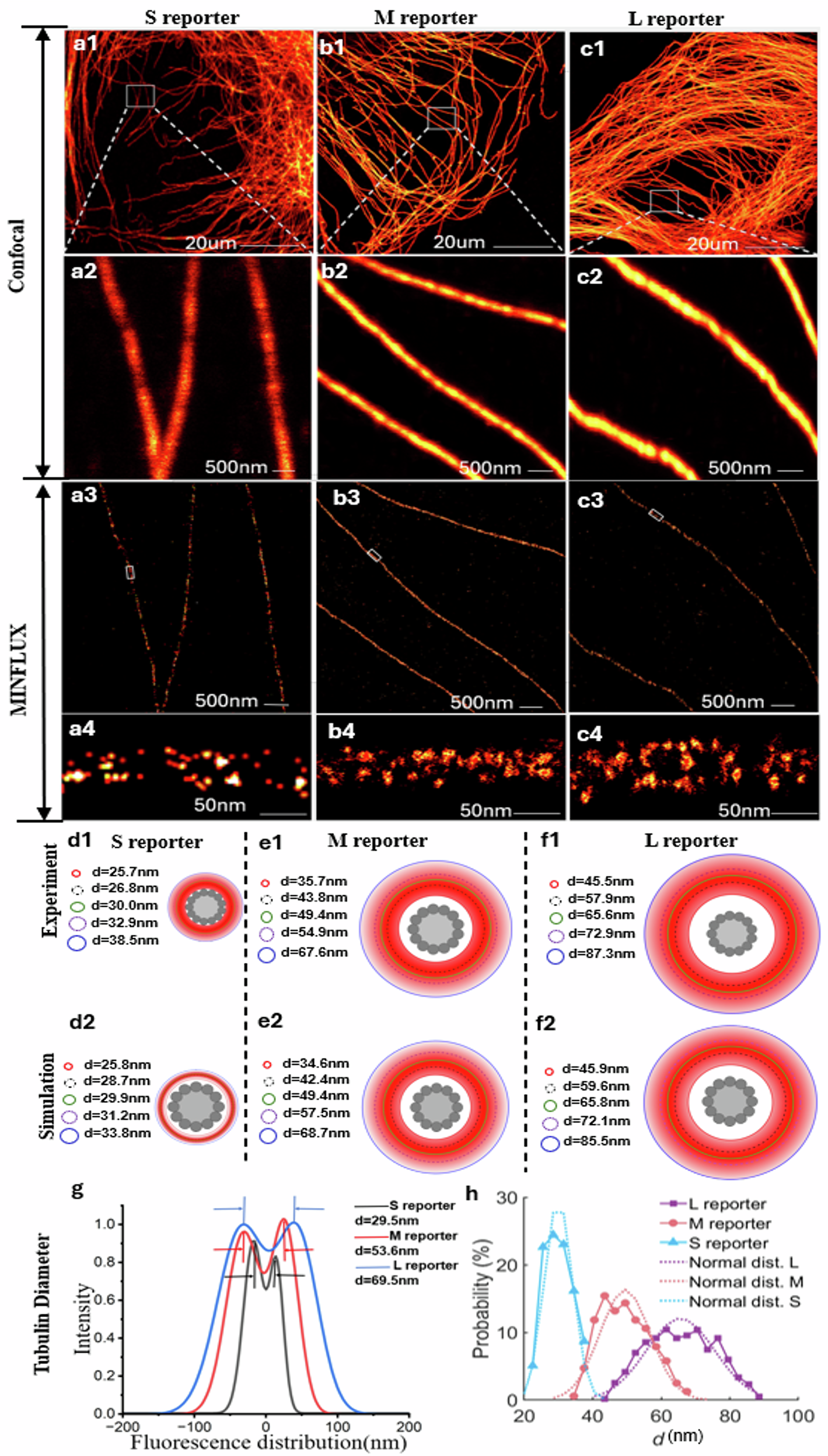

Fig. 2: The distribution of diameters measured from MINFLUX imaging of labeled microtubules for each reporter.
