Fig. 3: The quench dynamics initiated by the out-of-phase excitations.
From: Observation of edge solitons and transitions between them in a trimer circuit lattice

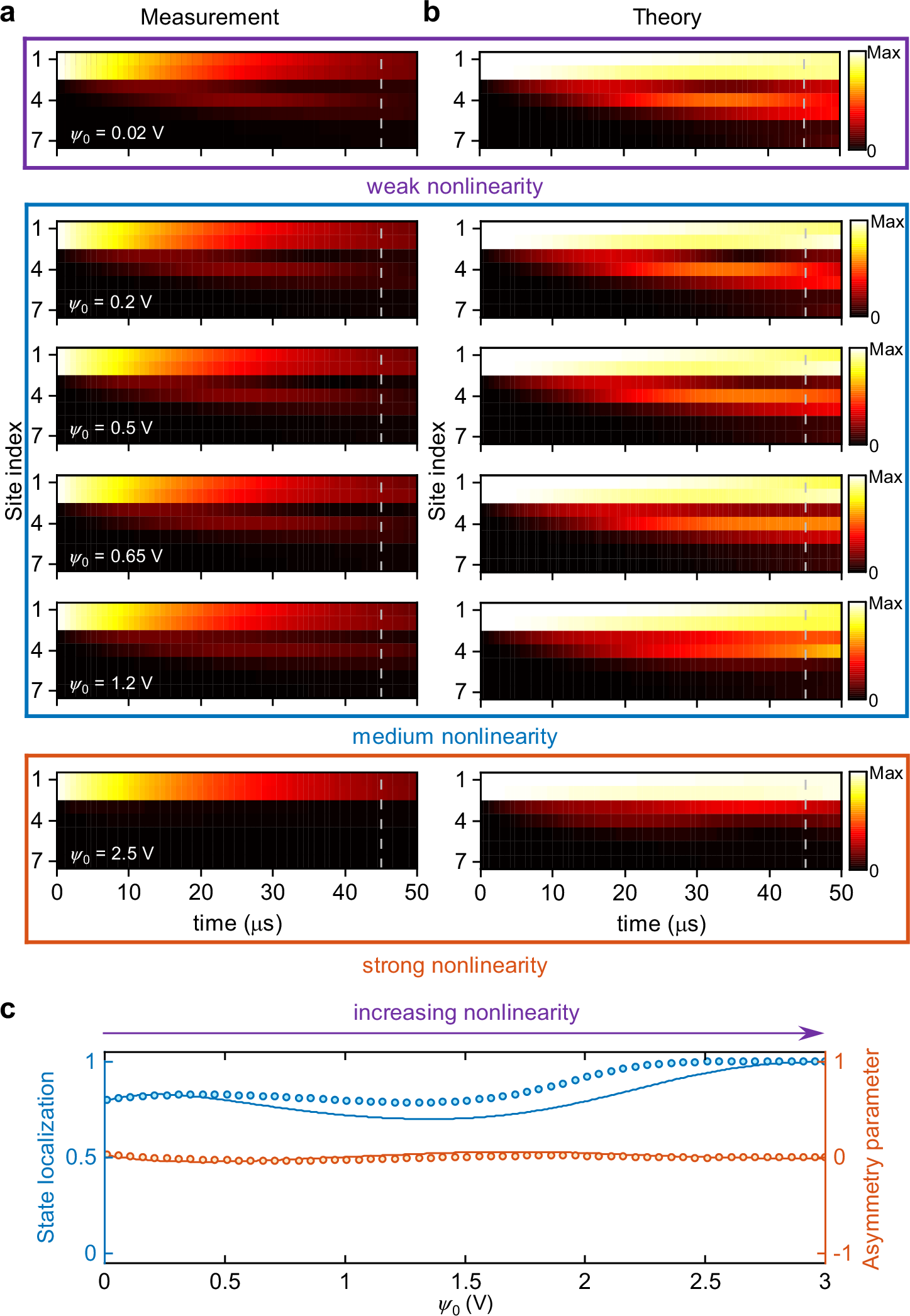

a, b The experimentally observed and theoretically predicted evolution initiated by different initial voltage excitations. c The state localization and asymmetry parameter, defined as per Eqs. (4) and (5), respectively, as extracted from the voltage distributions at t = 45 μs [this time moment is indicated by the dashed lines in (a)-(b)]. The continuous curves and chains of circles denote the theoretical and experimental results, respectively.
