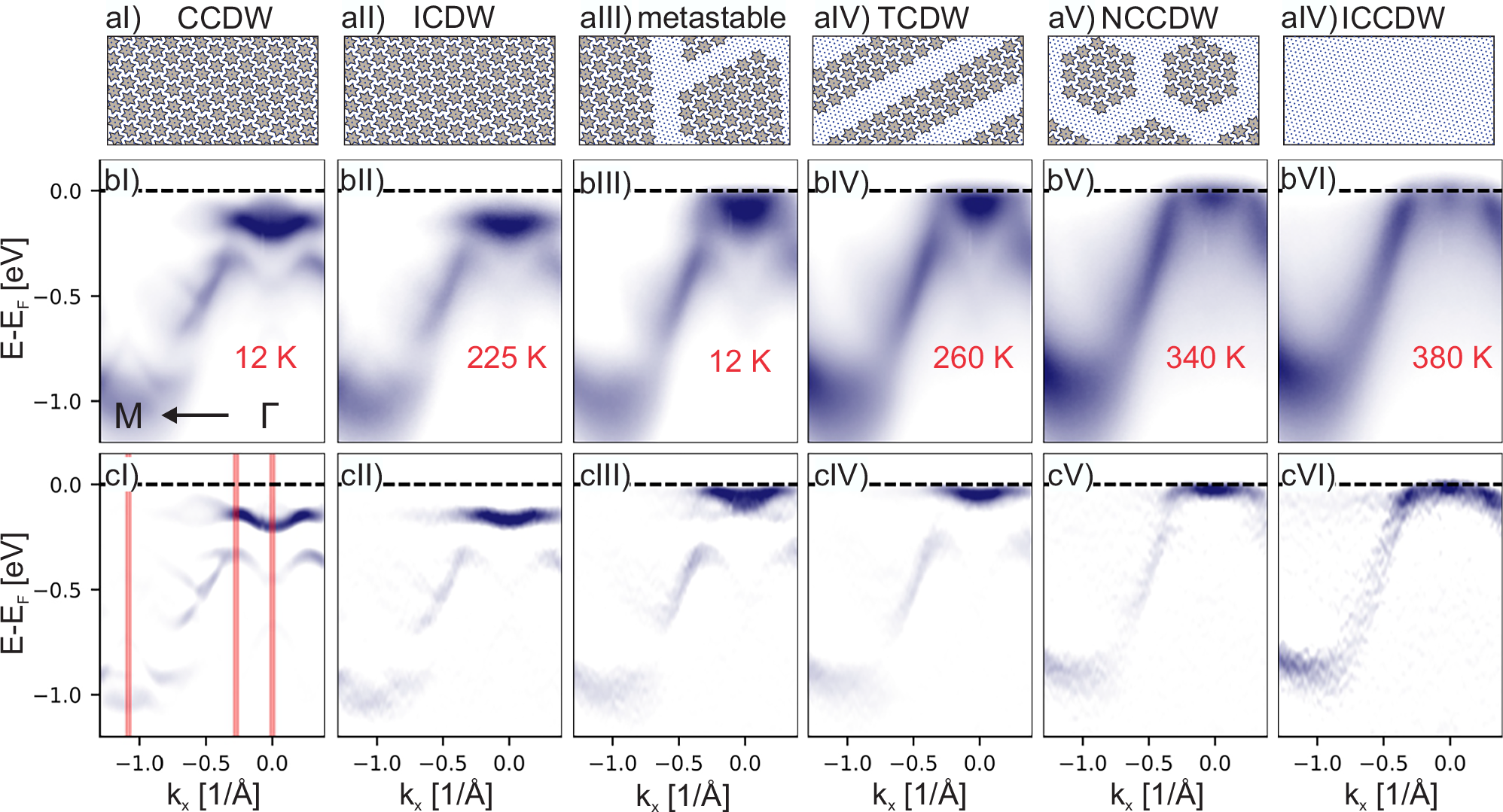

Fig. 3: Comparison with the equilibrium high temperature phases.
From: Revealing the electronic structure of the current-induced metastable state in 1T-TaS2
aI–aVI Schematic illustration of the real space structure of the surface of the metastable state as well as the equilibrium high temperature phases. For clarity, SD clusters are only shown in the commensurate domains. bI–bVI ARPES image plots of the metastable state as well as the equilibrium high temperature phases along Γ-M direction. cI–cVI Corresponding second derivative images. To enhance visibility, images were smoothed using the Gaussian method over a window of 20 meV and 0.005 Å−1.
