Probing Earth’s missing potassium using the antimatter signature of geoneutrinos

Abstract

Puzzles exist in our theories of Earth’s formation and bulk chemical composition. Related to these questions is our incomplete knowledge of the planet’s overall heat budget and thermal history. The successful observation of geoneutrinos originating from uranium and thorium decay chains, manifestations of the planet’s natural radioactivity, serves as the only direct probe of Earth’s internal, radiogenic heat engine so far. Intriguingly, potassium (⁴⁰K) geoneutrinos have never been observed and have so far been considered impractical to measure despite their importance in Earth’s radioactive inventory. We propose here an approach for potassium geoneutrino detection that exploits their antiparticle nature. The detection framework relies on the LiquidO technique to identify positrons, thereby reducing otherwise overwhelming backgrounds. Antineutrino interactions with candidate isotope targets have been thoroughly examined and copper is found to be the ideal isotope able to meet all experimental feasibility conditions. We discuss the challenging experimental requirements to yield a potassium geoneutrino discovery.

Introduction

Despite the primary constituents of the Earth being well-established and constrained¹, our inability to access the deep interior of our planet makes it impossible to measure its exact bulk composition directly. The quantification of the chemical elements present relies on compositional models, which are still under great unsettled debate. Among Earth’s trace elements, there are the so-called heat-producing elements, uranium, thorium and potassium, long-lived radioactive elements whose decay has produced heat since Earth’s formation.

Knowing the abundance of the Earth’s heat-producing elements is fundamental to understanding the extent natural radioactivity contributes to Earth’s heat flow of (47 ± 2) TW², wherein the remaining portion is due primarily to secular cooling. While abundances of refractory lithophile elements (U, Th) are well constrained by observations in chondrites, the silicate Earth seems strongly depleted in volatile elements, such as potassium (K). Presently, potassium is thought to contribute ~20% of the radiogenic heat produced³; moreover, it is believed to have played a crucial role early in Earth’s formation. Indeed, because of the faster decay rate of ⁴⁰K (t_1/2 = 1.25 Gyr), relative to ²³⁸U and ²³²Th, its contribution to the overall radiogenic heat may have reached up to ~50% in the early stages of Earth’s history.

The abundance of K in the silicate Earth spans a factor of ~2 among compositional models, ranging from 130 to 280 μg/g⁴. Our planet, however, exhibits ~1/3 to ~1/8 of its predicted potassium content when compared to chondrites. The ‘missing K’ relative to the prediction could be due to the loss of K into space during planetary accretion¹ or segregation into the differentiating Earth’s core⁵. Solving this intriguing riddle with a direct measurement would be a breakthrough in the comprehension of Earth’s origin and composition, providing key tests of bulk Earth compositional paradigms and models.

The missing K problem is linked with another open question in Earth Science: the ‘missing Ar’⁶. The present amount of ⁴⁰Ar measured in the atmosphere is approximately half of that produced within the Earth since its formation⁷. More than 99% of terrestrial argon is produced by ⁴⁰K decay; estimates of the bulk mass of K in the solid Earth thus determine the amount of ⁴⁰Ar degassed into the atmosphere. Since ratios of volatiles (e.g. H/⁴⁰Ar) are constant for a wide variety of rocks, the constraint on the amount of argon drives the understanding of the behaviour of other volatile elements (i.e. H, N, C and noble gases) during planetary formation and evolution, including water⁸. A fuller understanding would be possible by resolving the mysteries behind the missing fractions of K and Ar.

While powering the internal energetic processes in the Earth, beta decays of the heat-producing elements produce antineutrinos and heat, in a well-fixed ratio. A direct measurement of this antineutrino flux at the surface, ~10⁶cm⁻² s⁻¹⁹, provides an effective method for exploring Earth’s inaccessible interior with unique and unrivalled insights^10,11. In 2005, the KamLAND experiment (Japan) reported the first observation of these ‘geoneutrinos’¹². Soon after, the Borexino detector (Italy) made measurements^13,14. Future observations are expected from SNO+ (Canada)¹⁵ and JUNO (China)¹⁶. In these experiments, the detection mechanism is based on the Inverse Beta Decay reaction on free protons, here denoted as IBD(p). The interaction, ${\bar{\nu }}_{e}+p\to n+{e}^{+}$, provides a delayed coincidence between the e⁺ and the neutron signals, correlated by a short time interval (τ ≈ 200 µs), and grants a distinguishing event signature with strong background rejection power. This reaction has an energy threshold of 1.806 MeV; hence only the geoneutrinos originating from the ²³⁸U and ²³²Th decay chains are detectable via the IBD(p) reaction since ⁴⁰K geoneutrinos have a maximum energy of 1.311 MeV (Fig. 1).

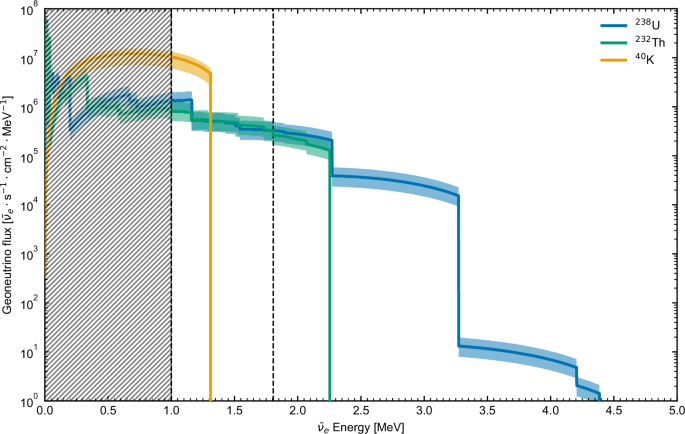

Fig. 1: Geoneutrino energy spectra.

The ²³⁸U (blue), ²³²Th (green) and ⁴⁰K (orange) geoneutrino fluxes expected at Laboratori Nazionali del Gran Sasso, as an example site, as a function of the antineutrino energy. The shaded lines show the variability range due to the isotopes’ masses and distributions in the Earth according to the models described in the ‘Methods’ section, which corresponds to about ±50% uncertainty in the flux prediction. The black vertical dashed line at 1.806 MeV represents the energy threshold of the Inverse Beta Decay reaction on free protons, i.e. the reaction used by current liquid scintillator geoneutrino experiments. All contributions below the threshold are not measurable with today’s technology. The region below 1.022 MeV, indicated by the black diagonal lines, represents the region which is not accessible with charged-current antineutrino capture on stable nuclear targets due to energy conservation in the reaction. The ²³⁸U spectrum above 3.272 MeV has traditionally not been shown because of its very low intensity.

The quest to detect ⁴⁰K geoneutrinos requires a different reaction. Antineutrino-electron scattering is a possible reaction with no energy threshold that can be considered for ⁴⁰K geoneutrinos^17,18. The drawback, though, is that this interaction produces just a single recoiling electron signal that can be easily masked by irreducible backgrounds arising from both solar neutrinos, which have a flux that is three orders of magnitude higher, and also by natural radioactivity, such as beta-minus decays or by Compton-scattered electrons produced by gamma rays. Suppression of backgrounds from radioactivity would need to greatly surpass the ultra-low background levels achieved by the Borexino experiment¹⁹ in order to have even a hope to detect ⁴⁰K geoneutrinos via electron scattering.

Alternatively, instead of electrons as the target, one can consider charged-current weak interactions with atomic nuclei, as in the IBD(p) reaction, but with a target that is not hydrogen, offering a reaction with a lower energy threshold. This approach is also challenging since energy conservation establishes a minimum energy threshold of 1.022 MeV (2${m}_{e}$) for stable isotope targets; the energy range of detectability for ⁴⁰K geoneutrinos is thus limited, spanning [1.022, 1.311] MeV. On the other hand, these interactions hold a special advantage owing to the fact that geoneutrinos are ‘antimatter’. Indeed, the weak interaction leads to a one-to-one correlation between the production of antimatter (the geoneutrino ${\bar{\nu }}_{e}$) for every single β^– decay of matter from Earth’s heat-producing elements. The antiparticle nature of geoneutrinos is evidenced by the manifestation of the positron (e⁺) in the final state, like in the IBD(p) reaction; all charged-current weak interactions by electron antineutrinos produce positrons. Today’s detectors cannot easily exploit this ‘antimatter signature’ with its potentially resilient background rejection power. With today’s technology, segmented detectors have been used to identify (tag) the annihilation gamma rays produced by the e⁺, as was coarsely done in the first neutrino detection²⁰. Despite recent efforts²¹, this remains a challenge. Identifying the e⁺ unambiguously, with high efficiency, could provide the key to an experimental strategy for the detection of ⁴⁰K geoneutrinos.

Charged-current IBD antineutrino interactions ${\bar{\nu }}_{e}+{}_{Z}{}^{A}X\to {e}^{+}+{}_{Z-1}{}^{A}Y$, hereafter referred to as IBD(^AX), offer several possible target candidates for which the energy threshold is lower than 1.3 MeV, including those listed in ref. ²², a study that focused on radiochemical-based detection. Cadmium, not listed in ref. ²², was later proposed²³ as a promising new candidate isotope for ⁴⁰K geoneutrino detection. IBD(¹⁰⁶Cd) produces ¹⁰⁶Ag and an e⁺. The produced ¹⁰⁶Ag subsequently decays, in turn, with an electron capture/β⁺ decay branch in which an e⁺ is emitted 59% of the time. ⁴⁰K geoneutrino capture on ¹⁰⁶Cd can thus generate two e⁺ in a detector, delayed on average by the 24-minute ¹⁰⁶Ag half-life. Despite the long coincidence time, this double-e⁺ signal, correlated in space and time, offers a very distinctive signature for ⁴⁰K geoneutrino detection.

The limitation of cadmium as a potential target is the natural abundance of ¹⁰⁶Cd. At only 1.25%, the ability to build a detector with a huge number of ¹⁰⁶Cd nuclei is unrealistic, given the anticipated size of the detector required to detect ⁴⁰K geoneutrinos and the prohibitive cost of isotopic enrichment, with current technology, at the required scale. Consequently, attention must be turned to other targets with high natural abundance. Moreover, for most of the possible candidates, the IBD(^AX) reactions do not offer a delayed coincidence signature as in the case of IBD(p) and IBD(¹⁰⁶Cd), and one must then ponder whether the clear identification of a single e⁺ in a detector could be distinctive enough for robust detection of ⁴⁰K geoneutrinos. Could the ‘antimatter signature’ of geoneutrinos be reliably exploited for efficient detection and background control?

The scientific and technological development foreseen for detecting these low-energy antineutrinos, together with their relevance in Earth Science, make the ⁴⁰K geoneutrino measurement the ‘holy grail’ for neutrino geoscientists. For exploring this low energy region of the geoneutrino spectrum (Fig. 1), considered today as being practically impossible, a complete (to the best of our knowledge) set of reactions, meeting all the necessary conditions, such as energy threshold (<1.3 MeV), natural abundance, and cross section, are discussed in this article, together with a possible experimental detection technique which features the unambiguous identification of single e⁺ signals in a detector that greatly suppresses today’s most limiting backgrounds. In our study, we identified a single suitable isotope—³Cu appears to be the ideal candidate for ⁴⁰K geoneutrino detection.

Results and discussion

The LiquidO technique²⁴ enables the clear identification of e⁺ in a scintillation detector arising from both the spatial topology of the event and the time pattern for energy deposition and light collection. The unique double-e⁺ signal of the ¹⁰⁶Cd geoneutrino reaction, combined with the ability of LiquidO to unambiguously detect positrons, initially prompted this study of ⁴⁰K geoneutrinos. Later, we focused solely on exploiting the positron’s “antimatter signature” as the essential fact. We therefore examined several potential candidate interactions that lead to a single-e⁺ manifestation to enable the detection of ⁴⁰K geoneutrinos. The identification of a positron annihilation signal in a detector, in and of itself, strongly suppresses other backgrounds (e.g. from natural radioactivity). Though there are potential background sources that can produce true e⁺ (or β⁺) signals in a detector, discussed in detail later in this article, they are much rarer than those that produce single electrons (or β^–). LiquidO’s approach provides both a distinct e⁺ event signature as well as the means for deploying promising targets for ⁴⁰K geoneutrino detection via high-level detector doping, thanks to its opacity-based detection medium.

Candidate targets for ⁴⁰K geoneutrino detection

Table 1 lists the most promising target isotopes for IBD(^AX) with low enough threshold and high natural isotopic abundance. The estimated signal event rates are provided, including those of IBD(p) and IBD(¹⁰⁶Cd) for comparison. Since crustal thickness and concentration of heat-producing elements varies with global location, the intensity of geoneutrino signals is strongly dependent on the detector site. In the following calculations, the Laboratori Nazionali del Gran Sasso (Italy) was chosen as an example site, given its average crustal thickness (35 km) being an intermediate case between the extreme value of thin oceanic crust (e.g. Hawaii, 5 km) and the thickest continental crust (e.g. Himalayas, 70 km). Full details of the cross-section estimates, rate calculations and a longer list of potentially suitable target isotopes for ⁴⁰K geoneutrinos detection can be found in the ‘Methods’ section and Supplementary Table 3, including arguments for why others were discarded.

Table 1 The most promising inverse beta decay (IBD) target isotopes and expected geoneutrino signals

Figure 2 shows the cross section and detected energy spectrum for several proposed targets, revealing that the most promising isotopes for detecting ⁴⁰K geoneutrinos are ³⁵Cl and ⁶³Cu, after weighting the event rates by their isotopic abundance. The ⁴⁰K geoneutrino signal rates are roughly the same for chlorine and copper, and area factor of ~20 higher than the signal rate in the next best choice (cadmium), diminished by its poor natural abundance. Both Cl and Cu have then been further evaluated in our study as to their susceptibility to potential backgrounds and the ability to deploy either of them in a detector. The detection technique being proposed here is potentially suitable for doping with either Cl and Cu, and will be described next before specific evaluation of Cl and Cu in a hypothetical LiquidO detector.

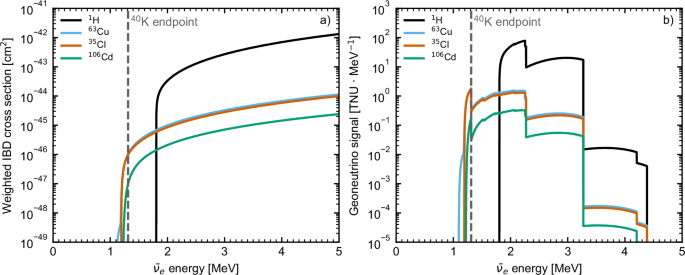

Fig. 2: Cross sections and expected geoneutrino measured spectra for the ¹H, ³⁵Cl, ⁶³Cu and ¹⁰⁶Cd inverse beta decay (IBD) targets.

a shows IBD reaction cross sections for the 4 different targets as a function of the incoming antineutrino energy, weighted by the corresponding target isotopic abundance (see Table 1). b shows the expected geoneutrino measured spectra at the Laboratori Nazionali del Gran Sasso (Italy), as an example site, originating from uranium, thorium and potassium distributed in the Earth’s lithosphere and mantle, calculated as described in the ‘Methods’ section. The expected geoneutrino spectra are given in Terrestrial Neutrino Units (TNUs). In both figures, the dashed vertical line indicates the endpoint of the potassium geoneutrino spectrum at 1.311 MeV.

LiquidO

The LiquidO detection technique has two features that make it ideal for the detection of ⁴⁰K geoneutrinos. The first is that the requirement of very high transparency for the liquid scintillator is relaxed in LiquidO because scintillation light gets collected using an array of closely spaced wavelength-shifting fibres distributed throughout the detector. Organic liquid scintillators can be doped with various elements²⁵; traditionally, this has potentially affected the transparency and intrinsic light yield of the resultant liquid scintillator cocktail. LiquidO’s tolerance to reduced transparency opens up the possibility to dope detectors with many elements to higher loading fractions and is well aligned with the main objective here—finding the best isotope candidates to be used as targets for charged-current reactions with low energy thresholds.

The second feature of LiquidO applicable to geoneutrino detection is its powerful particle identification capability owing to stochastic confinement of light²⁶. In a medium with a short mean-free path for light scattering (mm or less), scintillation light is stochastically confined near the energy deposition loci where it’s produced, until collected by a grid of wavelength-shifting optical fibres. Reading out the light (proportional to the energy deposited) collected by the fibres produces an image of the topology of the energy deposited, with the time pattern for the light to be collected also providing information. This is referred to as energy flow in LiquidO (Fig. 3b, c). Positron event topology can be imaged in LiquidO (Fig. 3a), in which the e⁺ central kinetic energy deposition and its two annihilation gamma rays are readily identified. Indeed, LiquidO’s ability to unravel the positron annihilation pattern is so striking that the technique is currently being explored for high performance positron imaging²⁷. This capability makes LiquidO well-suited to detect antineutrinos; this distinctive e⁺ signature tag can be exploited for IBD(³⁵Cl) and IBD(⁶³Cu) observation, perhaps even without the need for a delayed coincidence.

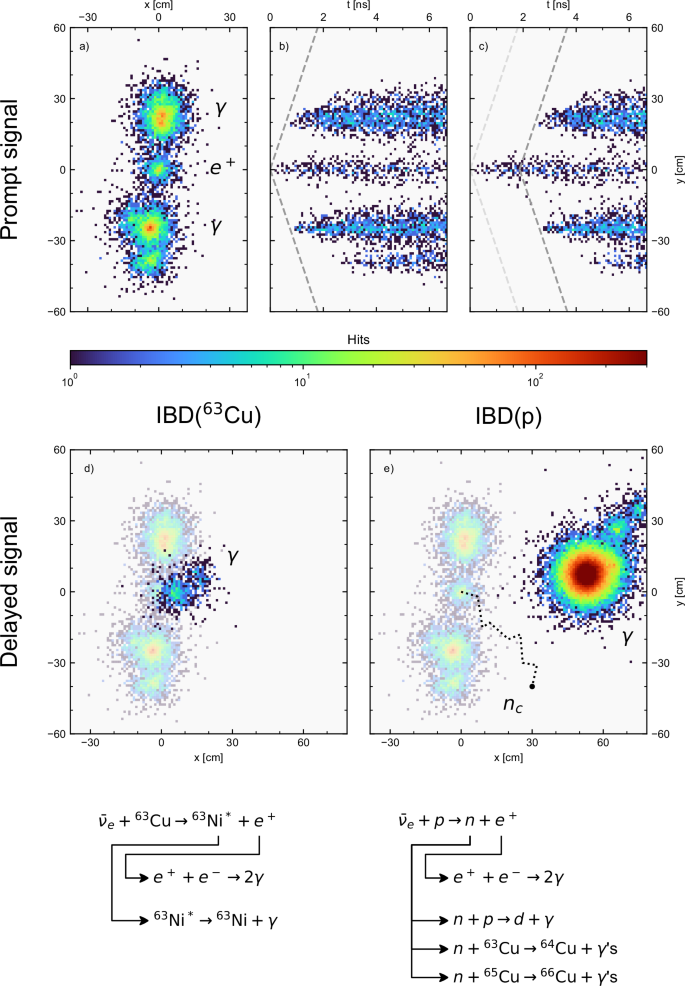

Fig. 3: Simulated inverse beta decay (IBD) events in a LiquidO detector doped with copper.

a shows the event topology of a 100-keV single e⁺ featured by its emission of two back-to-back 511-keV annihilation gammas to be used for event-wise tagging. This topology is common to IBD(p) and IBD(⁶³Cu) events upon the e⁺ emission. b shows the time pattern for the scintillation light (energy) to be collected in LiquidO for the e⁺ event shown in (a), assuming that the annihilation of the e⁺ is immediate, as opposed to the formation of ortho-positronium, depicted in (c), that typically delays the annihilation by a few ns. The topology and the time pattern of a positron annihilation are the key signatures for any IBD interactions, and they will be key tagging features for IBD(⁶³Cu). The energy flow (i.e. the topology of the energy deposition as a function of time) reveals the two annihilation gamma rays propagating away from the point of the e⁺ energy deposition. The scintillation light produced by subsequent multiple gamma ray Compton scattering diffuses with a speed lower than the speed of light (represented by the grey dashed lines) and is collected by nearby fibres and sums to 511 keV of energy deposited by each gamma ray. d shows the event topology of the delayed 87 keV gamma ray from the de-excitation of ⁶³Ni^* following a prompt e⁺ signal of an IBD(⁶³Cu) reaction. Last, e shows the event topology of the delayed gamma ray produced in the neutron capture on hydrogen following a prompt e⁺ signal of an IBD(p) reaction. The neutron that emerges from the point of interaction in (d) captured at the point labelled n_c. Neutron captures on copper would also be easily identified in LiquidO because numerous gamma rays are emitted with a large total energy, with reaction Q-values of 7.9 MeV and 7.1 MeV for ⁶³Cu and ⁶⁵Cu, respectively. The presence of Cu also shortens the time coincidence between prompt (e⁺) and the delayed neutron capture, allowing better accidental background reduction. The e⁺ annihilation is shown faded in (c, d), representing the fact that it occurred prior to the depicted delayed signals. The LiquidO vertex position precision is expected to be at the sub-cm level, up to ~1 mm depending on the detector readout configuration, further improving accidental coincidence and cosmogenic background rejection via the correlation with a preceding cosmic muon track. All the plots have a common colour-coded z-scale indicating the raw number of photons hitting the LiquidO fibres, labelled ‘hits’. The simulated fibre spacing is 1 cm in these plots. The photon detection efficiency has not been included as it is specific to the detector configuration and optimisation studies are in progress.

Extracting the ⁴⁰K geoneutrino signal

It is instructive to first consider the detection of ⁴⁰K geoneutrinos using a LiquidO-style detector, using IBD(³⁵Cl). Chlorine can be easily loaded in an organic liquid scintillator, and there are several possible ways to achieve high doping, up to a hypothetical 50% in weight. For instance, a chlorinated-benzene compound could be used as a liquid scintillator in LiquidO. Several compounds, such as (but not limited to) dichlorobenzene (C₆H₄Cl₂), fluoresce and can function as (or together with) a liquid scintillator. Moreover, chlorine could also be doped in a typical liquid scintillator by mixing in a non-fluorescing chlorinated solvent such as tetrachloroethylene (C₂Cl₄). These are only given as examples and are not being proposed for implementation; dedicated R&D will be required to fully develop feasible loading approaches.

Table 1 shows that the rate of IBD(p) events from U and Th geoneutrinos is much larger than IBD(³⁵Cl) from ⁴⁰K geoneutrinos. A chlorine-loaded detector that has abundant hydrogen, as in most liquid scintillators, will also record many IBD(p) reactions, serving to measure U and Th events with high statistics. One thus measures the U and Th geoneutrino fluxes using the IBD(p) events, tagged by their neutron capture, to allow their contribution to the IBD(³⁵Cl) events to be extracted and inferred, as illustrated in Fig. 4.

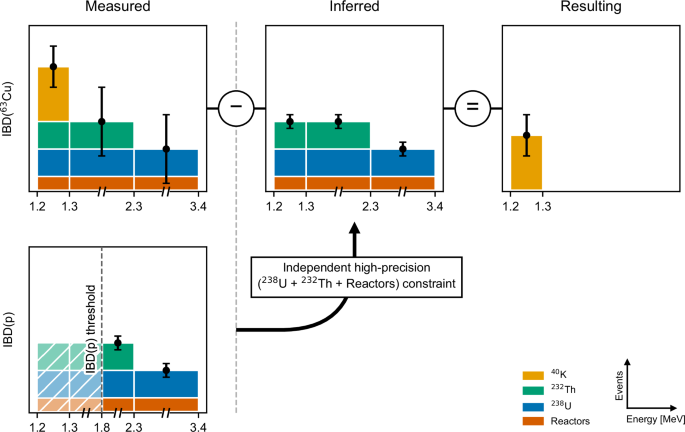

Fig. 4: Methodology for ⁴⁰K geoneutrino signal extraction.

Reactor antineutrinos as well as ²³⁸U and ²³²Th geoneutrino fluxes are determined with small uncertainty by high-statistics measurements of Inverse Beta Decay or IBD(p) events from which their contribution to IBD(⁶³Cu) events can be inferred at the percent-level. Those same antineutrino contributions need to be subtracted over the [1.189, 1.311] MeV geoneutrino energy range, as they are effectively an irreducible background to the IBD(⁶³Cu) based ⁴⁰K geoneutrino signal. The histograms are illustrative; their amplitudes are not to scale, and the error bars qualitatively represent the expected statistical uncertainty for each component, highlighting the contrast between the well-measured IBD(p) signal components and the low-statistics IBD(⁶³Cu) signal.

In evaluating the concept of single e⁺ identification in LiquidO with chlorine, the central question remains: without a delayed coincidence, would a single e⁺ be a robust enough signal compared to backgrounds? Even if e⁺ events can be easily distinguished from normal α, β and γ radioactive backgrounds, are there any backgrounds that produce actual e⁺ events in a detector, and how do these background rates compare to the anticipated ⁴⁰K geoneutrino signal’s very low rate?

Backgrounds

There are indeed genuine positron backgrounds. They come from other antineutrinos (from nuclear power reactors and U/Th geoneutrinos) and from β⁺ emitting background sources. The latter are considerably rarer than β^– backgrounds, which helps make the problem somewhat tractable. Finally, there are gamma-ray interactions that can produce or mimic the e⁺ signature. Table 2 summarises the nature of all backgrounds and how they might be dealt with and suppressed in a LiquidO detector.

Table 2 Backgrounds to the ⁴⁰K geoneutrino e⁺ signal in LiquidO

The antineutrino backgrounds, though irreducible, are easily managed. Using IBD(p) reactions in the liquid scintillator, reactor antineutrinos and U and Th geoneutrinos can be well measured and constrained in the same detector with minimal or no reliance on predictions. Within the narrow energy range, above the IBD(^AX) reaction threshold and below the endpoint (1.3 MeV), ⁴⁰K geoneutrinos substantially dominate, and the contributions even from a relatively large reactor antineutrino flux will be insignificant (excluding sites that are extremely close to nuclear reactors). Figure 4 illustrates the method for the quantification and statistical subtraction of this irreducible background. The excess of e⁺ events in the proper energy range, above the predicted background from U, Th geoneutrinos and reactor antineutrinos, is expected to be a clean sample of ⁴⁰K geoneutrinos.

A minor contribution comes from the neutrinos and antineutrinos produced in pionic and muonic decays in the atmosphere, typically referred to as atmospheric neutrinos, which can interact with the nuclei constituting the scintillator and the doping isotopes. Given that the signal is a low-energy single positron, the main contribution from atmospheric neutrinos is expected to be mainly from electron-flavour antineutrinos undergoing the IBD(^AX) reactions. In this context, only neutrinos whose energy is very close to the reaction energy threshold would be important. Interactions on carbon have also been considered. Given the tight signal topology, narrow energy acceptance constraints, and the fact that the atmospheric neutrino flux falls steeply with energy²⁸, this background is determined to be negligible. The estimates from running experiments without topological e⁺ tagging, such as Borexino, SNO+ and KamLAND²⁹, confirm a negligible predicted impact.

Of greater concern are β⁺ decaying backgrounds. In natural radioactivity, there is perhaps only one important β⁺ emitter, that being ⁴⁰K itself. Low-background physics experiments have learned how to reduce this background to very low levels, with the primary concern typically being the 1.46 MeV gamma ray that is emitted following the electron capture decay branch 10.67% of the time. In comparison, the β⁺ decay branching ratio is 10^–5. With the remarkably low levels of ⁴⁰K achievable in a liquid scintillator¹⁹, one can estimate this background to be less than one such β⁺ decay per 100 kilotons of detector per year. The energy spectrum of the e⁺ background from ⁴⁰K in the detector extends to higher energies than the e⁺ signals produced by ⁴⁰K geoneutrino charged-current interactions on ³⁵Cl or ⁶³Cu. This provides another handle for discriminating this background, as less than 15% of the energy spectrum of the e⁺ produced by ⁴⁰K-β⁺ decays overlaps with the ⁴⁰K geoneutrino spectrum. The trace amount of ⁴⁰K in the scintillator can also be precisely estimated through the observation of the much more common 1.46 MeV gamma-ray emission and then used to derive its abundance in situ, in order to subtract its expected e⁺ background in the ⁴⁰K geoneutrino energy region.

Another possible source of β⁺ emitters are isotopes produced by cosmic-ray interactions with materials in the detector³⁰, especially while those materials are on the surface. Short-lived isotopes that are produced can, in principle, be vetoed by identifying the cosmic-ray muon passing through the detector and applying a position-time veto window in which subsequent events are rejected. Tracking muons with high precision will be possible with LiquidO and is expected to be very effective. However, long-lived isotopes are also a possibility and, if an excessive amount were produced at the surface, it would require an extreme purification campaign, almost necessarily to be conducted underground, to remove the activated cosmogenic isotopes, if possible. Cosmogenic β⁺ emitters can represent a major concern for the detection of ⁴⁰K geoneutrinos and we will return to this topic.

To complete the discussion of e⁺ backgrounds, one must consider gamma rays and how they might mimic the sought-after e⁺ signature. Gamma rays can produce true e⁺ in a detector through pair production. The subsequent annihilation of the e⁺ produces the expected event topology in LiquidO. The ⁴⁰K geoneutrinos produce e⁺ with very little kinetic energy, between [0, 0.289] MeV. The pair production cross section on Cu and Cl is ~10^–3 times that of Compton scattering at these energy³¹. With pair production suppressed, it seems feasible that energy information of the candidate e⁺ event, together with requiring no previous interaction of the gamma ray prior to it undergoing pair production, could be sufficient to reject this background. The specific quantification of this background requires detailed simulations for different doping scenarios that consider the radiation properties of the medium (a subject of future feasibility studies).

The final background that was considered is from multiple Compton scatterings of gamma rays that could, by chance, mimic the e⁺ signature. The energy flow information that is accessible in an event in LiquidO would strongly suppress this background. A true e⁺ event originates the two 511 keV annihilation gamma rays from the same point, propagating with the speed of light. Multiple Compton scatters would tend not to produce these two simultaneous and displaced energy depositions with the topology and resolution granted by LiquidO, as illustrated in Fig. 3. Furthermore, the antineutrino-produced positron can also lead non-negligibly to the formation of positronium – an unstable exotic atom with a loosely-bound electron³². Both the formation and stability of positronium depend on the type of medium³³, including the possible presence of doping³⁴. This leads to possible variations in the formation rate and annihilation pattern exhibited mainly due to the production of ortho-positronium³² with differences in lifetime and number (i.e. two or three) of annihilation gammas. In traditional scintillators, the ortho-positronium formation fraction can be as high as ~50%, with a decay time of order ≤3 ns³³, consistent with previous, precise observations in antineutrino experiments³⁵. The rich positronium pattern may provide an extra handle for background control in a LiquidO-based detector (Fig. 3) and can be experimentally characterised with good precision for a given scintillator configuration^33,34.

We conclude this discussion of e⁺ backgrounds by postulating that a future experiment might be able to control gamma-ray backgrounds sufficiently well, with the signature of e⁺ annihilation then being sufficiently distinctive. The feasibility of this approach depends heavily on LiquidO’s detection and doping performance, still under experimental validation. The potential to detect ⁴⁰K geoneutrinos with LiquidO appears a priori feasible.

This brings us to a final discussion of possible backgrounds specific to the two elements identified for detecting ⁴⁰K geoneutrinos: copper and chlorine. For the case of chlorine as a geoneutrino target, despite having one of the highest cross sections among the possible targets and the ability to dope chlorine in a liquid scintillator being known, there is a problematic cosmogenic background. Natural chlorine contains trace amounts of the radioisotope ³⁶Cl, at the part in 10¹³ level. This isotope is produced in the atmosphere by spallation, by cosmic-ray interactions on ³⁶Ar, and in the upper part of the lithosphere by thermal neutron activation of ³⁵Cl. With a half-life of 3 × 10⁵ years, and a β⁺ decay branch with 0.02% probability, this isotope would produce ~10¹⁰ positrons per year per 10³² chlorine atoms. This would completely overwhelm the ⁴⁰K geoneutrino expected event rate (~0.1 TNU; the Terrestrial Neutrino Unit is equal to the number of geoneutrino interactions per year per 10³² target atoms). Chemical purification does not separate chlorine isotopes and large-scale isotopic separation is unfeasible. For this reason, using chlorine to search for ⁴⁰K geoneutrino interactions must be ruled out. The authors have highlighted this otherwise promising candidate to note the importance of carefully considering cosmogenic production of trace isotopes in rare event searches. The low event rate and possible impact of unknown combinatory backgrounds strongly favour identifying another candidate target element with a more robust signal topology, if possible, and not suffering from having a long-lived cosmogenic β⁺ emitter.

Copper—an ideal candidate

Copper is a candidate for doping in LiquidO for ⁴⁰K geoneutrino detection, with an expected event rate as high as that for chlorine. Doping copper in an organic liquid scintillator has not been previously accomplished. Nevertheless, techniques exist for producing scintillator cocktails that are miscible with water. Copper in aqueous solution could thus be loaded. Organocopper compounds also exist, and the chemistry of copper is arguably more varied than that of chlorine. The LiquidO approach that employs an opaque scintillator, with a short light-scattering length, is amenable to new metal-loading approaches (e.g. dispersion of nanoparticles). At 69% natural isotopic abundance, ⁶³Cu would be the specific isotope that has a low enough energy threshold for IBD(⁶³Cu) to be usable to detect ⁴⁰K geoneutrinos.

The ground state of ⁶³Cu has spin-parity 3/2^–. IBD(⁶³Cu) reactions would lead to the ⁶³Ni ground state (1/2^–) or ⁶³Ni* excited state (5/2^–) at the 87 keV energy level; both allowed transitions, with favourable cross sections. The cross section for the transition to the ⁶³Ni ground state can be estimated from ⁶³Ni β decay using its Log(ft) value, branching ratio and decay spectrum. On the other hand, for transitions to the ⁶³Ni^* excited state, there are no previous measurements of the β decay partial half-life for this nuclear state. We have assumed a typical Log(ft) value of 5, as was done in ref. ²², noting that the Log(ft) value to the ⁶³Ni ground state transition is worse (Log(ft) = 6.7). The ⁶³Ni^* excited state has a higher Q-value and thus its associated β decay half-life should be shorter, leading to a smaller Log(ft) value and a higher cross section. One would need to confirm or measure the IBD(⁶³Cu) cross section to the excited state using either a new measurement of ⁶³Ni^* β decay—unlikely to be realised for practical reasons—or invoke arguments from nuclear theory for this cross section based on experimental results from ⁶³Cu(n, p) nuclear reactions.

IBD(⁶³Cu) transitions to ⁶³Ni^* have another advantage. The excited state has a lifetime of 1.67 μs for decaying by emission of a gamma ray with 87 keV energy. This would provide a delayed coincidence that is exploitable to reject backgrounds, including true e⁺ backgrounds. Explicitly, IBD(⁶³Cu → ⁶³Ni^*) would first produce an identified e⁺ signal in a LiquidO detector, followed by the detection of an 87 keV gamma ray correlated in time and space with the e⁺, illustrated in Fig. 3d. With a high Cu loading fraction, photoelectric absorption (dependent on atomic number) of the low energy gamma ray would be most probable, and the expected signal would be a single-point energy deposition of 87 keV. The specific energy and the isolated event topology, near the IBD(Cu) e⁺, would make this delayed event extremely distinctive, leading to an overall major improvement in the robustness of the method.

For cosmogenic backgrounds, copper also has advantages compared to chlorine. Copper does not have long-lived β⁺ decaying isotopes. ⁶⁴Cu (t_1/2 = 12.7 h) is relatively short-lived; it can be produced by neutron activation, and it decays with both β^– and β⁺ emission, with a branching ratio of 17.6% for β⁺ decay. Reducing neutron exposure would be important and might imply overburden constraints for the detector that are not expected to be onerous.

Potential sources of neutrons in a detector are: (i) cosmic-ray neutrons impinging on the detector, (ii) muon-induced neutrons generated by electromagnetic/hadronic interactions of fast muons or by muon capture on nuclei in or surrounding the detector (iii) neutrons created by (α, n) reactions and those following the spontaneous fission of U in the rocks around the detector’s experimental hall and (iv) neutrons produced as a result of the IBD(p) process itself. Cosmic ray-induced neutrons do not represent a major concern; the flux would be completely attenuated by placing the detector below the Earth’s surface. The only concern would be exposure of the liquid scintillator to the surface neutron flux before detector filling. As the half-life of ⁶⁴Cu is short, after activation at the surface, the copper would only need to “cool” for a period of several days (~11 days would provide a factor >10⁶ reduction). The underground copper-loaded detector would still need to be surrounded by thermal neutron shielding to minimise continuous activation of ⁶⁴Cu. Passive or active shielding (e.g. a water pool) would also prove effective in reducing the flux of neutrons produced by muons interacting with the rocks surrounding the detector. Cosmic-ray muons and muon-induced neutrons may produce some ⁶⁴Cu nuclei; however, muons are efficiently tagged in neutrino detectors, especially in LiquidO, where active vetoing techniques can be employed to further suppress ⁶⁴Cu backgrounds via temporal and spatial fiducial cuts around a muon track. Even for a detector that is well shielded and underground, cosmic-ray muons might not be completely suppressed and would generate some equilibrium level of ⁶⁴Cu in a detector. A future experiment would need to be designed to efficiently tag muon-induced neutrons that might activate ⁶⁴Cu at a trace level.

The last source of neutrons to consider originates from the IBD(p) reaction itself. These reactions produce a neutron in the scintillator. This neutron is critical for the identification of IBD(p) reactions. Any misidentification could lead to confusion between the IBD(p) and IBD(⁶³Cu) detection channels, making it effectively impossible to detect IBD(⁶³Cu) events, which are statistically disfavoured by several orders of magnitude, as shown in Table 3. Both of the naturally occurring copper isotopes, ⁶³Cu and ⁶⁵Cu, have neutron capture probabilities much higher than hydrogen^36,37, with ⁶³Cu having the highest cross section³⁸. Neutron captures on copper are easily identified in LiquidO because of the numerous gamma rays emitted in the process, with a large total energy (i.e. reaction Q-value) of 7.9 MeV and 7.1 MeV for ⁶³Cu and ⁶⁵Cu, respectively³⁸. In this case, the produced ⁶⁴Cu β⁺ emitter can be spatially and temporally vetoed on the basis of the detected gamma rays following the ⁶³Cu neutron capture. To recapitulate, if an IBD(p) event produces a neutron that is captured, for example, on ⁶³Cu, the IBD(p) is not missed because of the distinctive neutron-capture gamma signal. If the produced ⁶⁴Cu later undergoes β⁺ decay, this can be associated with the previous IBD(p) event’s neutron-capture position, and thus, this e⁺ is not counted as a background event for the IBD(Cu) signal.

Table 3 Expected number of geoneutrino and reactor antineutrino events

Detection significance estimation

To estimate the ⁴⁰K geoneutrino detection significance in a future experiment, consider the Poisson probability distribution of the hypothetical observation of N or greater events compared to the null hypothesis that the experimental observation came from only backgrounds:

$$\sum\limits_{n=N}^{\infty }P\left({n;}\mu +\varDelta \mu \right)$$

(1)

where N is the number of observed events, μ is the mean expected number of background events in the null hypothesis, and the uncertainty of the total background Δμ (both statistical and systematic contributions) can be accounted for by adding it to the mean³⁹. A more formal likelihood calculation yields similar results because of the small rates and uncertainties involved. Generally, if the expected background is uncertain but can be constrained by a separate measurement, the background as a nuisance parameter in the likelihood function for a Poisson counting experiment can also be well constrained. It essentially reduces the significance calculation to counting statistics of the anticipated signal versus possible fluctuations of the known background.

We consider the case of copper with an identified 87 keV $\gamma$ in delayed coincidence. Backgrounds such as pair production or fake e⁺ signals from multiple Compton scattering are eliminated by time-position-energy coincidence requirements. As argued above, we will assume that natural and cosmogenic radioactivity of β⁺ emitters can also be suppressed, measured and constrained, and ultimately also eliminated by the coincidence requirement.

Only the irreducible antineutrino backgrounds remain to be quantified, in comparison to the ⁴⁰K geoneutrino signal. In this case, the separate measurement of the U and Th geoneutrino background in the ⁴⁰K geoneutrino energy range comes from the IBD(p) events, previously discussed. Due to the relatively high rate of IBD(p) events in a hydrogen-rich liquid scintillator, the fractional uncertainty of this background contribution will be small. One of the keys here that yields maximal discovery sensitivity is the data-driven subtraction of the U + Th signal, whose accuracy cannot be achieved via predictions based on geological arguments alone.

The statistical and systematic uncertainties in the reactor background contribution in the ⁴⁰K geoneutrino energy range must also be included. Sites with minimal reactor contributions are certainly favoured; but even if the flux is relatively high and even if their uncertainties are fractionally much larger, they will still have minimal impact since the absolute event rate from reactor events in the proper energy range is so much smaller, as shown in Table 3.

All systematic uncertainties (U, Th and reactors) can be included in the Δμ term, in the calculation of the Poissonian probabilities. The fact that U + Th geoneutrino backgrounds to the IBD(⁶³Cu) events are directly measured by IBD(p) events in the same detector helps, as many systematics related to their relative rates cancel, enhancing the robustness of the proposed experimental methodology. There are some systematics that would need to be considered that affect the low-energy (≤1.8 MeV) IBD(⁶³Cu) signal differently than the higher-energy IBD(p) signal, such as reaction cross section uncertainties; U, Th and reactor spectrum shape uncertainties at those energies; and energy-dependent detector systematics. Most of these could be experimentally explored by taking ancillary data close to a reactor with a small detector, also measuring the ⁶³Cu antineutrino capture cross section to the excited state ⁶³Ni^*. Ultimately, systematic uncertainties in the background estimations wind up having little impact on the ⁴⁰K geoneutrino flux measurement (and its significance) since the ⁴⁰K geoneutrino signal is nearly an order of magnitude larger than each of the U and Th geoneutrino backgrounds, as quantified in Table 3. The resulting ⁴⁰K geoneutrino detection significance as a function of the detector mass is plotted in Fig. 5, together with the attainable flux measurement precision for U and Th geoneutrinos.

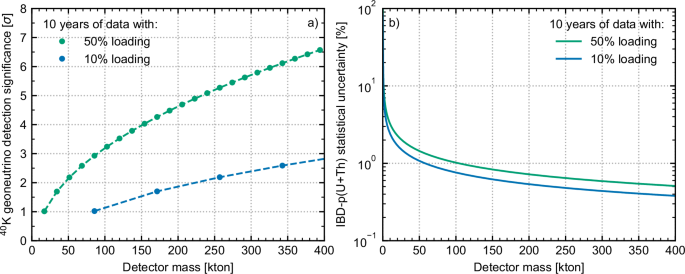

Fig. 5: ⁴⁰K geoneutrino detection significance and statistical uncertainty on U + Th signal.

a, b refer to a Cu-loaded detector running for 10 years at the Laboratori Nazionali del Gran Sasso, as an example. The expected geoneutrino signal and the irreducible reactor and geoneutrino backgrounds in the Inverse Beta Decay or IBD(⁶³Cu) potassium energy region [1.176, 1.311] MeV are S_IBD(Cu)(K) = 0.10 TNU, S_IBD(Cu)(U + Th) = 1.9·10⁻² TNU, S_IBD(Cu) (reactors) = 1.9·10⁻³ TNU, as summarised in Table 3. The expected geoneutrino signal and the irreducible reactor and geoneutrino background in the IBD(p) energy region [1.806, 3.272] MeV are S_IBD(p)(U + Th) = 40.6 TNU, S_IBD(p)(reactors) = 22.2 TNU⁵⁶. The S_IBD(p)(U + Th) estimate is ∼6 TNU higher with respect to ref. ¹⁴, which adopts U and Th abundances inferred from local samplings⁶⁸ and did not report K in the sedimentary deposits of the Apennines chain; here we calculated the expected geoneutrino signal using the global model of ref. ⁵⁰. Two hypothetical Cu mass loadings are considered, 50% and 10% (green and blue lines, respectively), defined as the ratio between the Cu mass and the overall detector mass. a shows the ⁴⁰K geoneutrino detection significance in number of σ and is calculated by conservatively considering a +1σ statistical uncertainty on the number of IBD(p) events, which is propagated in the estimation of the background events in the ⁶³Cu potassium energy region (μ + Δμ), as defined in Eq. 1. Each data point corresponds to an integer number of events N observed in the ⁶³Cu potassium energy region. b shows the statistical uncertainty on the IBD(p) (U + Th) geoneutrino signal, which is estimated as the square root of the number of geoneutrino plus reactor IBD(p) events.

The methodology for extracting the ⁴⁰K geoneutrino signal (Fig. 4) requires extrapolating the U and Th geoneutrino components plus the reactor backgrounds into the ⁴⁰K geoneutrino energy window. The presence of two classes of events, IBD(⁶³Cu) and IBD(p), makes efficient neutron tagging a strict requirement. Any IBD(p) event that fails to reconstruct the accompanying neutron could be misidentified as an IBD(⁶³Cu) event (or as a background e⁺ event) that is missing the delayed 87 keV gamma ray from true IBD(⁶³Cu → ⁶³Ni^*), with the potential that those at low kinetic energies are mistaken for ⁴⁰K geoneutrinos. LiquidO with copper is expected to have an enhanced neutron tagging efficiency since thermal neutron capture on copper is rather characteristic, as previously discussed.

To summarise, IBD(p) events produce an e⁺ signal and a neutron. The neutron must be efficiently identified so that IBD(p) events accurately measure the U and Th geoneutrino (and reactor) fluxes, as backgrounds. Those neutrons are tagged by either the 2.2 MeV gamma ray following neutron capture by protons or by the energetic multiple gamma rays released following neutron capture by either of the stable isotopes of copper, ⁶³Cu or ⁶⁵Cu. If the neutron is missed, for example by undergoing (n, p) or (n, α) on Cu, with the final state particles not detected, it must be accounted for in the IBD(p) efficiency and as a potential ⁴⁰K geoneutrino background if the e⁺ signal is in accidental coincidence with another event resembling an 87 keV point energy deposition—the latter is likely to be a very rare occurrence.

As shown in Fig. 5, the significance of the ⁴⁰K geoneutrino signal detection reaches the level of 5 (3) sigma for a detector mass slightly under 240 (90) kilotons and 50% copper-loading, with 10 years of data taking. Details are shown in Table 3. Despite the robustness of the detection methodology being proposed, the discovery potential for potassium geoneutrinos remains a major experimental challenge due to the small event rate of K geoneutrinos. Even in a hypothetical background-free scenario, this is largely unavoidable as it is due to the small acceptance caused by the narrow detection energy window, [1.0, 1.3] MeV for charged-current interactions, and the cross sections involved. The discovery of K geoneutrinos via this methodology, if proven feasible, would require a detector mass comparable to that of Hyper-Kamiokande⁴⁰ even in the optimistic – experimentally not demonstrated—scenario where doping is postulated at the 50% level. LiquidO detector technology and its positron detection signature would help achieve the necessary, enormous background suppression. The delayed coincidence with the ⁶³Ni^* deexcitation gamma ray is another strong feature, adding robustness to the overall methodology. Discussion of the practicality of such a detector can be found in the ‘Methods’ section.

Figure 5 illustrates two loading cases for comparison: 10% and 50%, by weight fraction. Loading at 10% represents what has been previously achieved in liquid scintillator experiments (e.g. LENS R&D⁴¹), corresponding to the present state-of-the-art. High loading above ≥10% would require further vigorous R&D effort. In any case, maximising the light yield of the scintillator cocktail is important due to the low kinetic energy of the e⁺ originating from IBD(⁶³Cu), depositing no more than ~100 keV energy. For the detection of the e⁺, both annihilation gamma rays are readily observed and can be traced back to their common point of origin. Nevertheless, registering the signal from the energy deposited by the e⁺ (the event pattern centre) and the 87 keV $\gamma$ sets the target for detector light collection to be a minimum of around 200 photoelectrons/MeV, corresponding to ~20 photoelectrons for these energies, so as to preserve good pattern recognition and sensitivity to these low energy events.

Despite the enormous challenges posed by this problem, the methodology and basic concepts of our proposed approach to K geoneutrino discovery are sound, with a development path that can be based on experiment. Prototypes are being developed that could eventually test a copper-doped scintillator deployed close to a nuclear reactor⁴². The same technique for testing ⁴⁰K geoneutrino detection can also detect lower-energy reactor antineutrinos that haven’t previously been observed by IBD(p) reactions, and from spent nuclear fuel. In this way, reactors may be used as effective ‘test-beam’ facilities to experimentally demonstrate much of the described methodology. Our work is not a proposal for a specific experiment but rather aimed to fully explore what it would take to pursue K geoneutrino detection using a charged-current interaction, exploiting the distinctive antimatter signature of geoneutrino events, thus providing the framework for fully envisaging this exciting possibility.

Conclusions

In this article, we propose to use charged-current antineutrino interactions on ⁶³Cu to detect ⁴⁰K geoneutrinos, featuring the e⁺ (antimatter) tagging ability of the LiquidO detection technique. ⁶³Cu has been identified as the ideal isotope due to its large natural abundance, relatively high cross section and robustness to numerous e⁺ backgrounds that were considered. A huge LiquidO scintillation detector of about 240 (90) kilotons mass with 50% Cu loading appears to be the minimal configuration to reach 5 (3) sigma discovery potential upon 10 years of exposure. In the same detector, the simultaneous detection of U and Th geoneutrinos using conventional IBD interactions on protons would yield a high statistical sample (of order 35,000 events), leading to a permille-level statistical precision of the U and Th geoneutrino fluxes. Such precise measurements, combined with direct knowledge from ⁴⁰K geoneutrinos, would be insightful for discriminating between competing models of Earth’s chemical composition and the distribution of the main heat-producing elements (U, Th and K)⁴³.

The challenge of building such an enormous detector is clear. While LiquidO technology is at an early level of development, including the highly doped liquid scintillator, most of the experimental feasibility of the methodology could be established via dedicated data-driven ‘test-beam’ measurements using a small LiquidO detector of a few-tons scale, located close to a nuclear reactor, similar to that foreseen in the CLOUD/AntiMatter-OTech scientific programme⁴².

Our complete understanding of the Earth and its formation would greatly benefit from the observation of ⁴⁰K geoneutrinos, whose rate measurement would constitute a major discovery. The impact of the first ⁴⁰K geoneutrino measurement would be a direct determination of the bulk mass of potassium in the Earth and its abundance in the deep interior, after accounting for the actual knowledge of the amount of potassium in the accessible lithosphere. Current geoneutrino measurements provide radiogenic heat estimates relying on a model-dependent K/U ratio. Instead, a direct measurement of the ⁴⁰K heat power would provide an experimental constraint to the radiogenic fraction of Earth’s internal heat budget. For instance, a fully chondritic Earth would produce a very large ⁴⁰K signal⁴⁴; hence confirmation of such an Earth model would be possible. Moreover, measuring the K/U ratio would also provide critical information about the behaviour of volatile elements during Earth’s early-stage formation⁴⁵. The detector being proposed would provide a precise measurement of the Th/U ratio in the bulk Earth, another quantity that tests bulk composition assumptions based on chondritic models. Finally, a direct measurement of the ⁴⁰K geoneutrinos would be crucial to shed light on the missing K and Ar mysteries and, in turn, provide insights into Earth’s composition, structure, and thermal evolution. The K geoneutrino discovery stands as one of the most important quests and challenges in this field of research today.

Methods

Geoneutrino signal calculation

The prediction of the IBD geoneutrino signal at a given experimental site requires the modelling of the three geoneutrino life-stages, i.e. (i) production inside the Earth, (ii) propagation to the detector site and (iii) detection via the IBD reaction on a given target.

For a given Earth elemental volume, U, Th and K activities (i.e. the average decay rates) are separately computed as the ratio between the number of radioactive nuclei and the corresponding radioisotope mean lifetime. The oscillated geoneutrino flux is obtained by weighting the activities for the corresponding geoneutrino spectrum (normalised to the number of geoneutrinos per decay)^9,46, by scaling for the isotropic $1/4\pi {r}^{2}$ spherical factor, and by applying the electron antineutrino three-flavour survival probability⁴⁷ with up-to-date oscillation parameters⁴⁸. Finally, the U, Th and K geoneutrino IBD signals per unit time and unit target isotope are calculated by convolving the oscillated geoneutrino spectra with the IBD cross section for the target isotope of interest. Expected signals in Terrestrial Neutrino Units (TNU) are determined by assuming a one-year acquisition time and 10³² IBD target nuclei as follows^9,49:

$$ {S}_{i,n}\left(\vec{r}\right)= \\ \frac{{{{IA}}_{n}N}_{{{\mathrm{target}}}}\cdot T}{{m}_{i}\cdot {\tau }_{i}}\cdot \int d{E}_{\bar{\nu }}\cdot {{\mbox{S}}}{{\mbox{p}}}_{i}\left({E}_{\bar{\nu }}\right)\cdot {\sigma }_{n}\left({E}_{\bar{\nu }}\right)\int {d}^{3}{r}^{{\prime} }\cdot \frac{{C}_{i}\cdot {a}_{i}\left(\vec{r}^{\prime} \right)\cdot \rho \left(\vec{r}^{\prime} \right)}{4\pi {\left|\vec{r}-\vec{r}^{\prime} \right|}^{2}}{\cdot P}_{{{\mathrm{ee}}}}\left({E}_{\bar{\nu }},\left|\vec{r}-\vec{r}^{\prime}\right|\right)$$

where i runs over the HPE (i = ²³⁸U, ²³²Th and ⁴⁰K) and n runs over the target isotope (n = ¹H, ³He, ¹⁴N, ³³S, ³⁵Cl, ⁴⁵Sc, ⁶³Cu, ⁷⁹Br, ⁸⁷Sr, ⁹³Nb, ¹⁰⁶Cd, ¹⁰⁷Ag, ¹³⁵Ba, ¹⁴⁷Sm, ¹⁵¹Eu, ¹⁵⁵Gd, ¹⁷¹Yb and ¹⁸⁷Os), IA_n is the isotopic abundance of the IBD target isotope, N_target is equal to 10³², T is a one-year acquisition time [s], ${m}_{i}$ is the atomic mass of the HPE [g], ${\tau }_{i}$ is the mean lifetime of the HPE [s], ${{\mbox{S}}}{{\mbox{p}}}_{i}\left({E}_{\bar{\nu }}\right)$ is the geoneutrino energy spectrum for the i-th HPE [#$\bar{\nu }$ MeV⁻¹], ${\sigma }_{n}\left({E}_{\bar{\nu }}\right)$ is the IBD cross section for the n-th target isotope [cm²], ${C}_{i}$ is the isotopic abundance of the ith HPE [g/g], ${a}_{i}\left(\vec{r}^{\prime} \right)$ is the mass abundance [g/g] of the ith HPE in the elemental volume ${d}^{3}{r}^{{\prime} }$, $\rho \left(\vec{r}^{\prime} \right)$ is the volumetric density of the elemental volume ${d}^{3}{r}^{{\prime} }$[g/cm³], $\vec{r}$ is the position of the experimental site with respect to the centre of the Earth, $\vec{r}^{\prime}$ is the position of the elemental volume ${d}^{3}{r}^{{\prime} }$ with respect to the centre of the Earth and ${P}_{{ee}}\left({E}_{\bar{\nu }},\left|\vec{r}-\vec{r}^{\prime} \right|\right)$ is the electron antineutrino survival probability [dimensionless] for an antineutrino with energy ${E}_{\bar{\nu }}$ travelling for a distance $\left|\vec{r}-\vec{r}^{\prime} \right|$ [cm] from the emission point in the elemental volume to the detector position.

In order to perform this geoneutrino signal calculation, it is necessary to adopt a 3-dimensional voxel-wise Earth model according to which each elemental volume is assigned with an HPE abundance and a volumetric density. At this scope, the Earth is typically divided into its two main HPEs-bearing reservoirs, i.e. the lithosphere (shallow and relatively rich in HPEs) and the mantle (thick and relatively poor in HPEs)⁵⁰. The lithosphere is the outermost Earth shell with an average thickness of 170 km, comprising (from top to bottom) sediments, continental or oceanic crust and continental lithospheric mantle, while the mantle has a typical thickness of 2800 km and extends from the bottom of the lithosphere to the core-mantle boundary.

The geophysical structure of the Earth is quite well established from seismic and gravimetric measurements both in terms of reservoir thicknesses and density⁵⁰; on the other hand, a wide range of compositional models of the Bulk Silicate Earth (BSE) has been proposed in the past decades. In particular, three of the most popular classes of BSE compositional models are typically referred to as ‘cosmochemical’, ‘geochemical’ and ‘geodynamical’, which are respectively based on EH enstatite chondrites composition (low HPE abundances), CI carbonaceous chondrites composition (moderate HPE abundances) and on the energetics of mantle convection and the observed surface heat loss (high HPE abundances)⁴². Following¹⁴, in the panorama of available compositional models, we call ‘cosmochemical’ the model of ref. ⁵¹, ‘geochemical’ the model of ref. ¹ with K abundances corrected following ref. ⁵² and ‘geodynamical’ the model of ref. ⁵³, which provides the HPE masses in the BSE (M_BSE) reported in Table 4.

Table 4 Bulk silicate Earth compositional models

In the context of possible HPE distributions in the Earth, we rely on the fact that for each HPE, the average mass in the lithosphere (M_litho), together with its standard deviations (σ_litho), is statistically well known from direct measurements on rock samples⁵⁰. In this perspective, subtracting M_litho from the M_BSE, the residual HPE masses are assigned to the mantle (M_mantle = M_BSE – M_litho) according to 3 different possible distributions: (i) in a 10 km thick layer at the core-mantle boundary⁵⁴, (ii) in a 710 km thick enriched mantle layer sitting at the core-mantle boundary and underlying a 2090 km thick depleted mantle⁵⁰, (iii) in a 2800 km thick homogeneous mantle⁵⁵. The core is considered devoid of HPEs.

Across the possible combinations of HPE masses and distributions, a ‘low’, ‘medium’ and ‘high’ scenario were built by taking into account the following points: (i) the geophysical structure of the reservoirs belonging to the lithosphere is fixed and taken after¹⁴; (ii) the lithospheric HPE masses can vary in the σ_litho range (iii) the ‘proximity argument’ holds⁹, which states that ‘the minimal (maximal) contributed flux is obtained by placing HPE as far (close) as possible to the detector’. Supplementary Fig. 1 and Supplementary Table 1 provide, respectively, a visual sketch and a quantitative description of the relevant features of the ‘low’, ‘medium’ and ‘high’ scenarios that give rise to, respectively, the minimum, central and maximum geoneutrino fluxes and signals (see also Fig. 1 and Table 1), defining the expected signal and its variability range. The resulting HPEs masses adopted for the signal calculation for the three different scenarios are reported in Supplementary Table 2.

The above-mentioned methodology is followed in this work to calculate the geoneutrino signals, and their variability ranges, on different IBD targets expected at Laboratori Nazionali del Gran Sasso (LNGS: 42.45°N, 13.57°E), as a pertinent example site where much information exists. For the sake of completeness, we underline that the intensity of the signal strongly depends on the experimental site position. Provided that the mantle contribution is isotropic, the following arguments need to be considered: (i) although the average crustal thickness is about 35 km, it can range from ~5 km (thinnest oceanic crust) up to ~70 km (thickest continental crust); (ii) the continental crust is richer in HPE (~40 times higher mass abundances) compared to the oceanic crust. In this framework, LNGS, sitting on top of ~35 km continental crust, represents an intermediate case. Two extreme examples of ‘oceanic’ and ‘continental’ geoneutrino potential experimental sites could be represented by Hawaii (19.72°N, 156.32°W) and the Himalayas (33.00°N, 85.00°E), respectively. Indeed, according to the ‘medium’ scenario, at a Himalayan site, the geoneutrino signal (S_IBD(p)(U + Th) = 58 TNU) is expected to be generated by HPE distributed in the lithosphere with a fraction of about 85%, while at Hawaii, approximately 75% of the geoneutrino signal (S_IBD(p)(U + Th) = 12 TNU) originates from the mantle⁵⁰.

Reactor antineutrino signal calculation

The expected reactor signal at LNGS, as an example site, was estimated as the superposition of the signals generated by all commercial nuclear power plants⁵⁶, where the parameterised antineutrino spectral shape⁵⁷ per decay was adopted to extrapolate the reactor spectrum down to the ⁴⁰K geoneutrino energy window. In this respect, LNGS represents an experimental location with a long ‘baseline’, as the closest commercial reactor is at ~400 km distance and produces the largest signal fraction (only ~3% of the total reactor signal). The annual expected reactor neutrino signal is almost constant (as each distant reactor provides only a small fraction of the signal, hence variations due to any given core’s operation are not so significant) and provides about 35% of the IBD(p) signal in the geoneutrino energy window [1.806, 3.272] MeV and a small (~1%) fraction of the IBD(⁶³Cu) signal in the ⁴⁰K geoneutrino energy window [1.176, 1.311] MeV.

Inverse beta decay cross-section calculation and expected geoneutrino spectra

The nuclear matrix element for an antineutrino capture reaction ${\bar{\nu }}_{e}+\,{}_{Z}{}^{A}X\to {e}^{+}+\,{}_{Z-1}{}^{A}Y$ is similar to the one from the related β decay ${}_{Z-1}{}^{A}Y\,\to {{}_{Z}{}^{A}X+{e}}^{-}+\,{\bar{\nu }}_{e}$ and can be derived from its ft value, or comparative half-life, which typically provides a useful criterion for the classification of radioactive transitions as allowed or forbidden to various degrees. The antineutrino capture reaction has a target dependent energy threshold ${E}_{{th}}={Q}_{\beta }+2{m}_{e}$, where ${Q}_{\beta }$ is the total energy released in ${}_{Z-1}{}^{A}Y$ nuclear β decay.

The total charged current cross section (in natural units) can be calculated directly from evaluating the appropriate β-decay reaction and correcting for the spin of the system as follows⁵⁸:

$$\sigma =\frac{2{\pi }^{2}{{\mathrm{ln}}}2}{{ft}\,{m}_{e}^{5}}{p}_{e}{E}_{e}F\left({E}_{e},{Z}_{f}\right)\frac{(2{J}_{f}+1)}{(2{J}_{i}+1)}$$

where ft is the comparative half-life of the β decaying nucleus, taken from the ENDSF nuclear database⁵⁹, ${m}_{e}$, ${p}_{e}$ and ${E}_{e}={E}_{{\bar{\nu }}_{e}}-{E}_{{th}}+{m}_{e}$ are, respectively, the e⁺ mass, momentum and total energy; $F({E}_{e},{Z}_{f})$ is the Fermi nuclear function correcting for Coulomb repulsion between the e⁺ and the nucleus of the final state having charge ${Z}_{f}=Z-1$; $\frac{(2{J}_{f}+1)}{(2{J}_{i}+1)}$ is the spin correction factor for a final state with spin ${J}_{f}$ and initial state with spin ${J}_{i}$.

In view of ⁴⁰K geoneutrino detection via the antineutrino capture reaction, the target isotope candidates were selected considering the following constraints: (i) E_th < 1.311 MeV, and (ii) relatively low ft values (i.e. relatively high cross section). The Nuclear Data Section of the IAEA provides a user-friendly API that can be used to query nuclear data and investigate isotope properties. According to the Evaluated Nuclear Structure Data File (ENSDF), contained in the IAEA database⁵⁹, a total of 515 different β^– emitters exist for a total of 523 possible transitions to ground state. We are interested in these β^– decaying isotopes since their products are suitable targets for the inverse process, namely the IBD. Among these 515 emitters, we are interested in those having a threshold at E_th < 1.311 MeV, the energy endpoint of the ⁴⁰K geoneutrino spectrum. There are a total of 26 possible targets satisfying this condition, not all, however, are stable. Since a realistic geoneutrino experiment will require a large number of target nuclei and a high level of radiopurity, this consideration is sufficient of itself alone to discard all the unstable candidates. We thus discuss only targets which are stable or can be considered stable on the time scale of a geoneutrino experiment (such as the ones having half-lives comparable or higher than Earth’s age, ¹⁵¹Eu and ¹⁴⁷Sm), ending up with a total of 17 targets leading to 20 possible IBD transitions. This led to the identification of 17 target isotopes: ³He, ¹⁴N, ³³S, ³⁵Cl, ⁴⁵Sc, ⁶³Cu, ⁷⁹Br, ⁸⁷Sr, ⁹³Nb, ¹⁰⁶Cd, ¹⁰⁷Ag, ¹³⁵Ba, ¹⁴⁷Sm, ¹⁵¹Eu, ¹⁵⁵Gd, ¹⁷¹Yb and ¹⁸⁷Os, shown in Supplementary Table 3, and Supplementary Fig. 2.

Candidates with low E_th values and with possible allowed transitions to an excited state are ⁶³Cu, ⁷⁹Br and ¹⁵¹Eu. The ${\bar{\nu }}_{e}$ reaction energy threshold must include the energy of the excited state and still be below the ⁴⁰K geoneutrino spectrum endpoint; that is the case for all three of these isotopes and their possible (allowed) excited states. However, only an approximate value of Log(ft) = 5²² is assumed for the excited states, with an admissible range of 4–6 (with some even larger values occurring)⁶⁰. Indeed, while for ⁷⁹Br $\to$ ⁷⁹Se* the Log(ft) value can be analytically estimated (using the ⁷⁹Se* $\to$ ⁷⁹Br branching ratio, its half-life and the Fermi functions of the two states), for ⁶³Cu $\to$ ⁶³Ni* and ¹⁵¹Eu $\to$ ¹⁵¹Sm* the lack of knowledge of the branching ratio and/or the half-life of the final state prohibits a Log(ft) calculation. As the cross section is inversely proportional to ft, a 2-unit change in Log(ft) will result in a 2 orders of magnitude variation in the cross section. Even a small (10%) increase (decrease) in Log(ft) will provide a cross section that is reduced (enhanced) by a factor 3 with respect to the central value estimate. This large uncertainty calls for refined nuclear physics input coming from theory and/or experiments, in particular for ⁶³Cu, which is the most promising candidate. Measurements using nuclear reactor neutrinos, as a source, would enable a direct calibration of the ⁶³Cu cross section for geoneutrino detection relative to the IBD(p) interaction.

³He would be an excellent target with a high cross section (low ft) and one of the lowest energy thresholds. However, its scarcity (1.3 × 10⁻⁴% isotopic abundance) and extremely high cost would make its choice prohibitive. Similar arguments apply to ¹⁰⁶Cd, ³³S, which would require isotopic enrichment to increase isotopic abundance from the natural 1.25% and 0.75%. Moreover, only an upper limit for the ¹⁰⁶Ag $\to$ ¹⁰⁶Cd beta decay branching ratio is available (BR < 1%⁵⁹), limiting the knowledge of ¹⁰⁶Cd cross section to an estimated maximum value (Log(ft) > 4.1). For ⁴⁵Sc, ⁷⁹Br, ⁸⁷Sr, ¹³⁵Ba, ¹⁴⁷Sm, ¹⁵¹Eu and ¹⁵⁵Gd the energy threshold is too close to the ⁴⁰K endpoint to enable the detection of a relevant portion of the spectrum (Supplementary Table 3). Although ¹⁴N is characterised by low Z (i.e. small Fermi Coulomb correction) and by a ~ 100% isotopic abundance, the allowed β decay is disfavoured (high ft value). This makes ¹⁴N a poor target choice due to its small antineutrino cross section. A similar argument applies to ⁹³Nb, ¹⁷¹Yb, ¹⁰⁷Ag and ¹⁸⁷Os, whose poor ft values strongly limit the amplitude of the IBD cross section, excluding them as possible targets. In conclusion, ³⁵Cl and ⁶³Cu were identified as the most promising antineutrino capture target for the detection of ⁴⁰K geoneutrinos.

Detector considerations, challenges and experimental development

Our study concluded that a detector at the scale of 100–200 kilotons, doped with copper at 50% by weight, would be required to achieve sufficient signal detection significance for the discovery of ⁴⁰K geoneutrinos. The purpose of our study was not a proposal for an experiment but a comprehensive examination of the signal and background characteristics for ⁴⁰K geoneutrino detection using charged-current interactions on all possible, practical (high natural abundance) nuclear targets. Nevertheless, we address several of the main practicalities associated with building such a detector in the discussion that follows.

Size—At 240 kilotons, required for a 5-sigma discovery (10 years of data), the detector would be comparable in size to Hyper-Kamiokande⁴⁰. At 90 kilotons (for a 3-sigma discovery), the size would be similar in scale to DUNE⁶¹. Since LiquidO technology is required for e⁺ identification, its scalability is at stake and reaching such a detector mass is a non-negligible challenge with today’s technology. LiquidO detector size scaling is currently limited by fibre attenuation, imposing a limit along one detector dimension (along the length of the fibre). Overall detector size, transverse to the direction of the fibres, is also restricted by the need for overburden (and an underground location) to reduce cosmogenic backgrounds, as discussed in the main article. For now, the SuperChooz project⁶², with a 10-kiloton mass and LiquidO technology, is under consideration, realisable as it is comparable in size and scale with the existing NOvA detector⁶³. However, projecting a further increase in size by an order of magnitude, likely requiring improvements in fibre technology beyond today’s state of the art, would indeed be a formidable challenge.

Cost—The price of copper today (for 45,000 tons or more) would amount to several hundred million USD. Other components that are expensive and that scale with size include the liquid scintillator and optical fibres. Using NOvA as the closest analogue for a LiquidO ⁴⁰K geoneutrino detector, the greater fibre density needed for LiquidO would necessitate 6 times as many fibres, and the size scaling factor would multiply by roughly another factor of 17. Hence, the total scaling factor for the cost of optical fibres would be a factor of 100 going from NOvA scale to that needed for ⁴⁰K geoneutrino detection. Offsetting this potentially is the benefit of the ‘self-segmentation’ provided by LiquidO. With no segmentation cells to build (as in NOvA), there would be potential cost savings for the overall scintillator container.

Liquid scintillator—The main article emphasised that high-level copper doping at 50% requires dedicated R&D. The fact that LiquidO scintillator is deliberately highly scattering (in its opacity) means that numerous approaches for achieving high doping have been identified and are under development. The properties of the scintillator and wavelength-shifting fibres are also important, and we stress that high light yield is a requirement given the low kinetic energy deposited by the produced e⁺ prompt signal and the coincident 87 keV gamma ray.

Complexity—Increasing the number of readout channels does not necessarily increase complexity, especially in the modern era of ASIC-based electronics and deep learning for data analysis. However, the mechanical complexity in the deployment of a large grid of fibres implies unexplored engineering challenges. Again, dedicated scaling R&D will be required to address these questions.

Prototyping—While other physics experiments can progressively increase sensitivity, achieving results with each milestone, to commit to such a large-scale ‘moon-shot’ endeavour would not be realistic if there were not a programme that would provide scientific progress and results along the way. The challenges can be met on the experimental side as novel solutions (e.g. for doping, fibres, mechanics, etc.) are developed and scaled up. Proof-of-principle demonstrations are envisioned in the CLOUD⁴¹ programme that includes (Cu) doped scintillator deployed close to powerful nuclear reactors. Signal detection methodology traits (such as the Ni deexcitation gamma in coincidence) can be refined and the cross section measured experimentally (confirming calculations) by following a progression of experiments that would ultimately lead to the enormous undertaking of a ⁴⁰K geoneutrino discovery instrument. As the IBD(Cu) reaction cross section has not been experimentally observed, measuring it is the highest priority, as all other considerations (discussed above), such as detector size, cost and complexity, scale inversely with the unknown cross section.
