Extended Data Fig. 5: Comparing TL and CoNNear model predictions at the median and maximum L1 prediction error.

From: A convolutional neural-network model of human cochlear mechanics and filter tuning for real-time applications

Extended Data Fig. 5

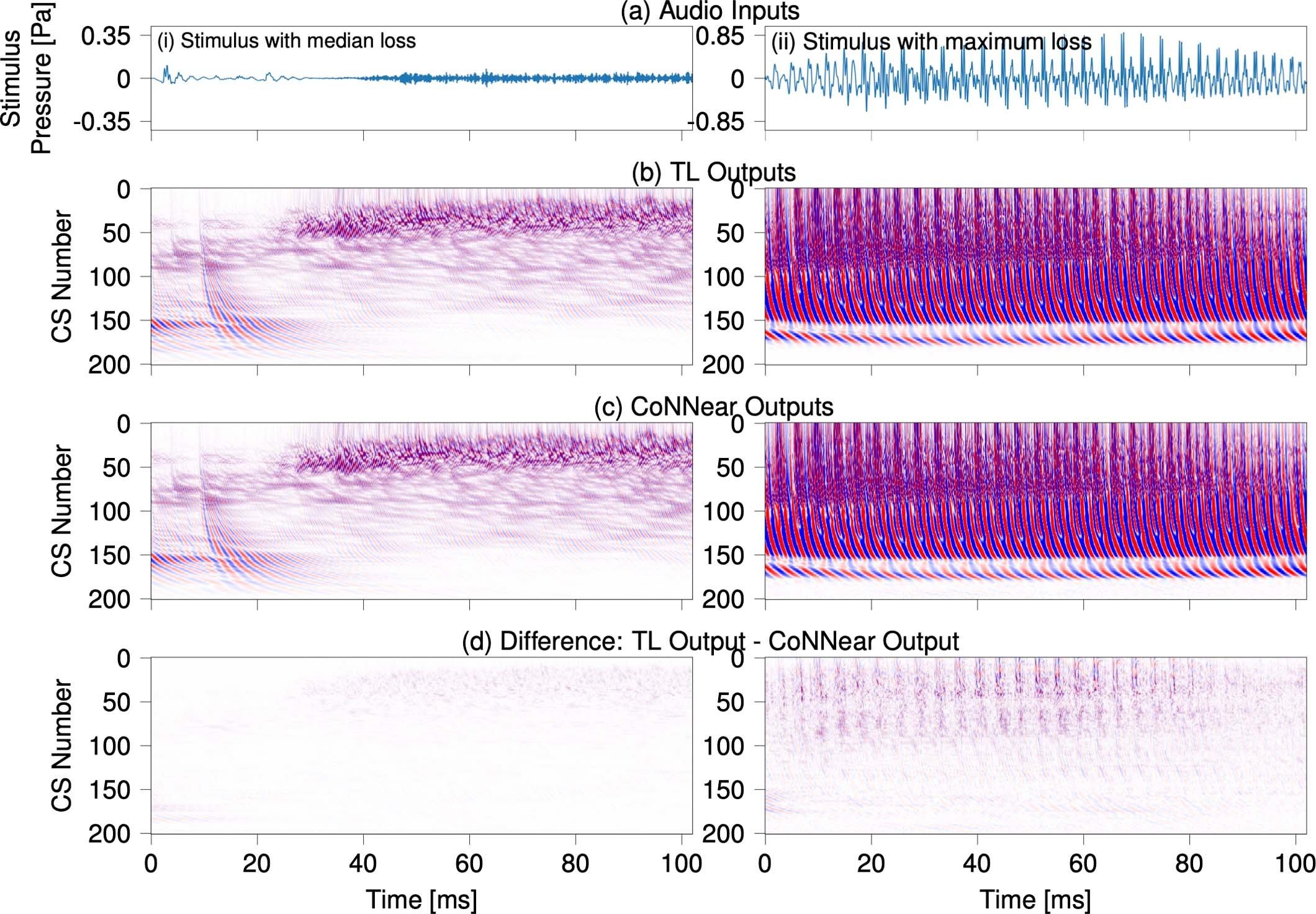

The figure compares BM displacement intensities of the BM (b) and CoNNear (c) model to audio fragments which resulted in the median and maximum L1 errors of 0.008 and 0.038 simulated for the TIMIT test set (Fig. 5). The NCF=201 considered output channels are labelled per channel number: channel 1 corresponds to a CF of 12 kHz and channel 201 to a CF of 100 Hz. The same colour scale was used for both simulations and ranged between -0.5 μm (blue) and 0.5 μm (red).
