Extended Data Fig. 7: Robustness analysis.

From: Actor neural networks for the robust control of partially measured nonlinear systems showcased for image propagation through diffuse media

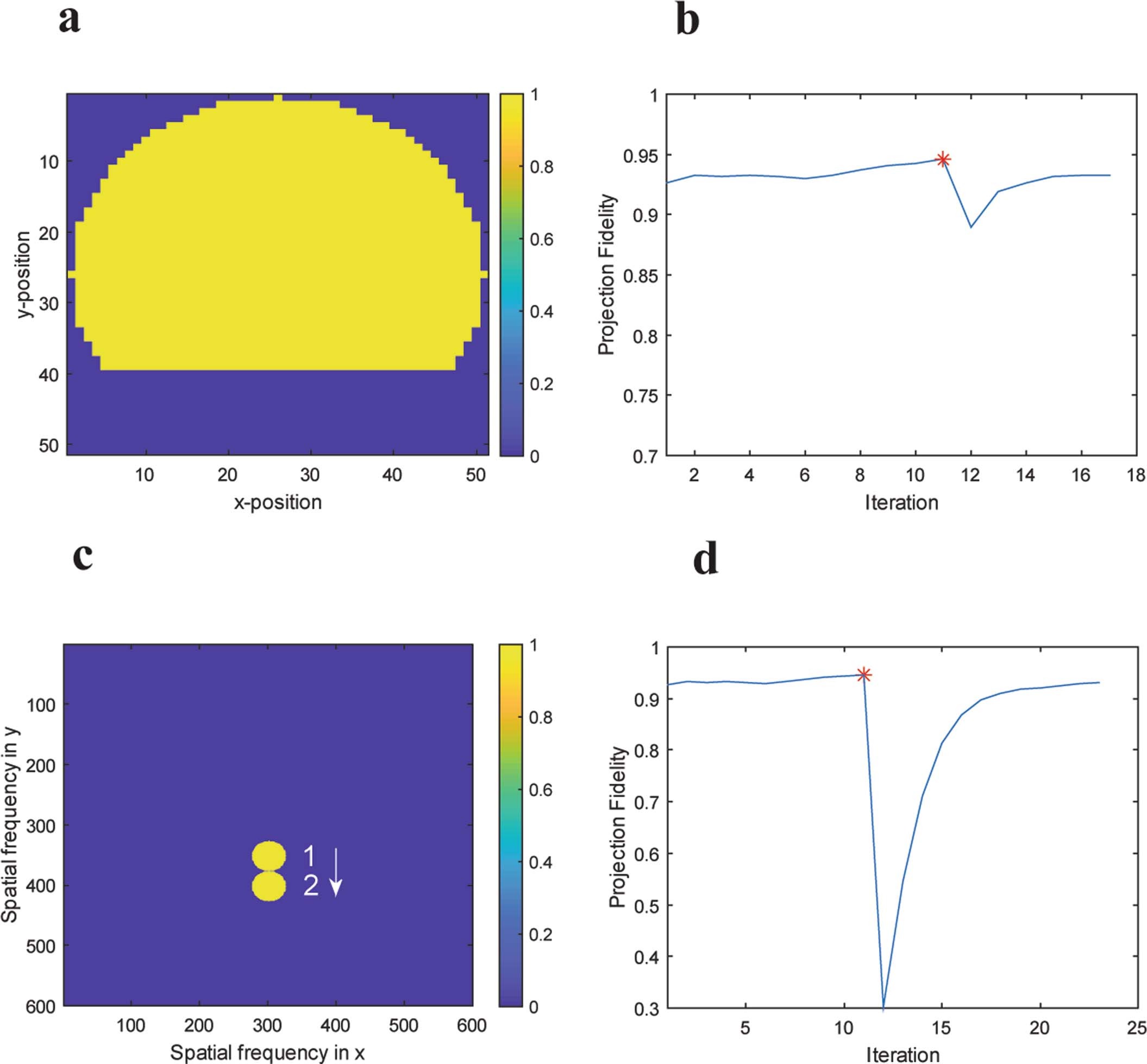

Extended Data Fig. 7

Two scenarios of minor (a, b) and major (c, d) perturbations due to misalignment of the MMF system is studied. a- The proximal side of the fiber has been slightly blocked with a spatial filter depicted in (a). b- the fidelity plot of the projected images before and after the perturbation event (denoted by a star symbol) is shown. c- In the second scenario, the proximal side of the fiber has been slightly tilted (changed in angle). This results in a shift in the reception bandwidth of the fiber facet from spatial frequency configuration 1 to 2. d- The fidelity plot of the projected images for the perturbed system is shown.
