Extended Data Fig. 9: Robustness of the proposed model over the extended range of object-to-sensor distance.

From: Deep learning based on parameterized physical forward model for adaptive holographic imaging with unpaired data

Extended Data Fig. 9

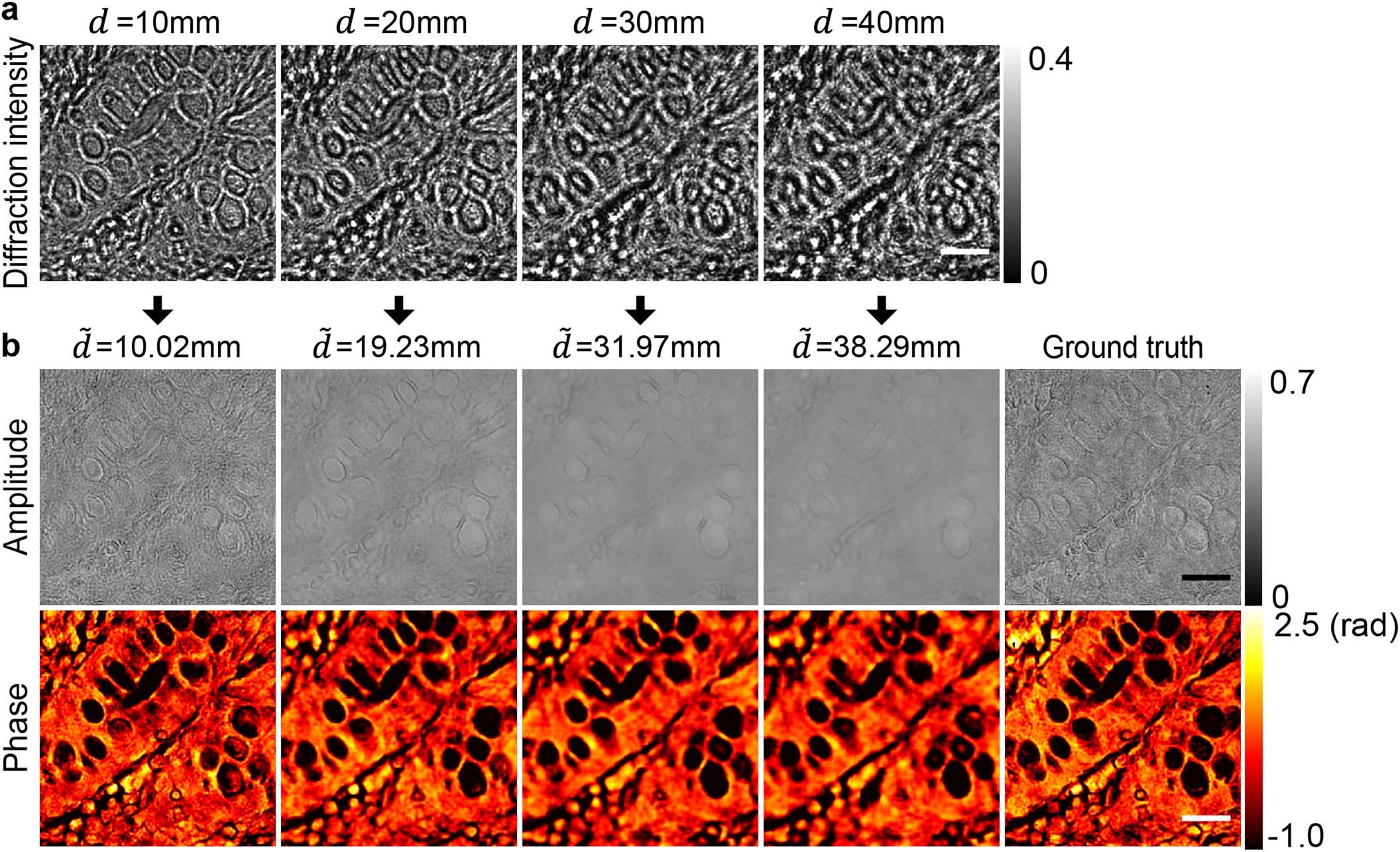

a,b, (a) The diffraction intensities of colon measured at 10, 20, 30, and 40 mm are used as network inputs and (b) corresponding reconstructed complex amplitude map and distance are indicated by arrow. Even with the extremely large distance range, the proposed model consistently generates the complex amplitude maps. Scale bar: 20 μm.
