Extended Data Fig. 6: Ratios of monounsaturated fatty acids to their saturated precursors. | Nature Cancer

Extended Data Fig. 6: Ratios of monounsaturated fatty acids to their saturated precursors.

From: Metabolic adaptation of acute lymphoblastic leukemia to the central nervous system microenvironment depends on stearoyl-CoA desaturase

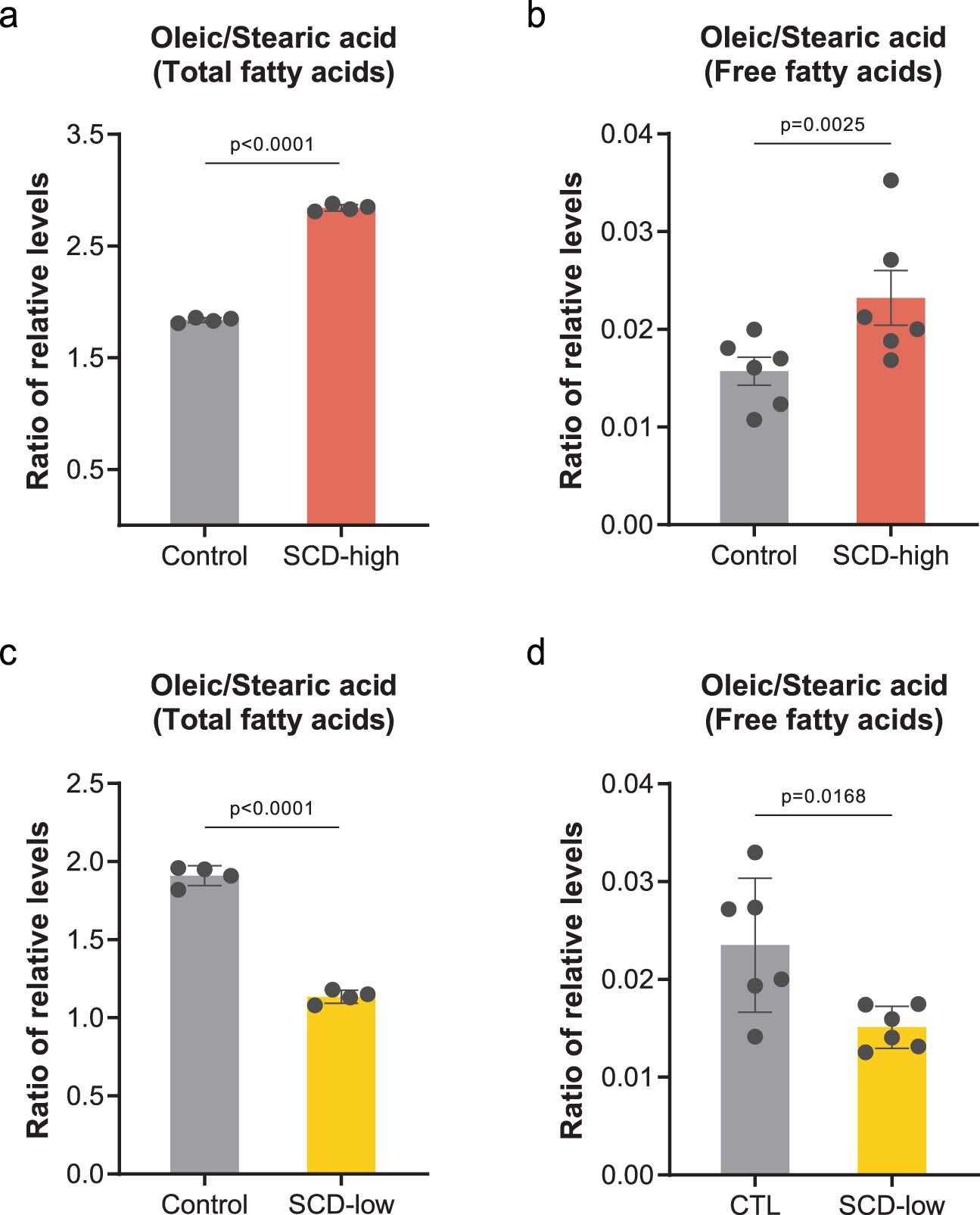

Extended Data Fig. 6

Ratios of total levels of oleic/stearic acids in total fatty acids extracts in (a) SCD-high and (c) SCD-low 018z cells, in comparison to respective controls (CTL) (n=4 independent experiments for each condition). Ratios of relative levels of oleic/stearic acids in free fatty acids extracts in (b) 018z overexpressing or (d) downregulating SCD, comparatively to corresponding controls (CTL). n=5 independent experiments for each condition, p(two-tailed)=unpaired parametric Student’s t-test. Error bars represent mean ± s.d.

Source data
